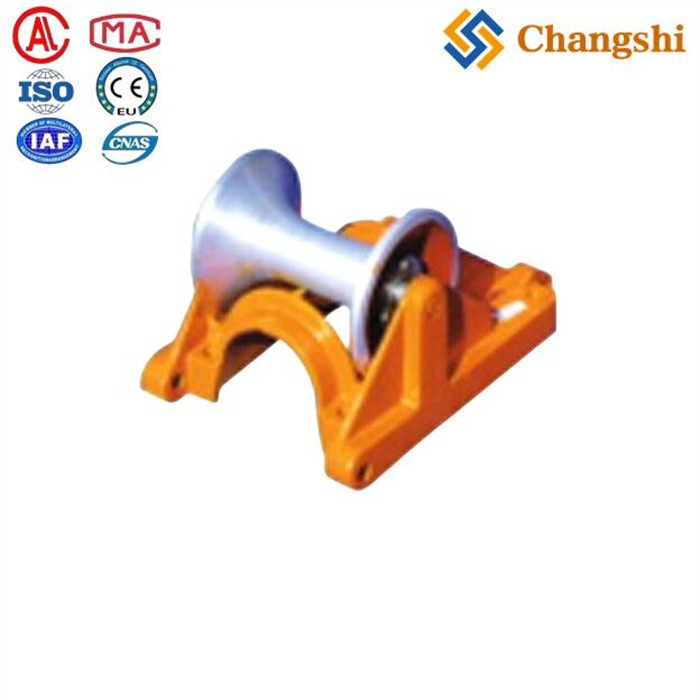

Aluminum Support Cable Ground Roller To Protect Underground pulling Laying Cable
A Cable Ground Roller with Cast Aluminum Support is a durable cable handling device designed to protect cables from damage during pulling or laying operations, typically used in trenches or on the ground.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
A Cable Ground Roller with Cast Aluminum Support is a durable cable handling device designed to protect cables from damage during pulling or laying operations, typically used in trenches or on the ground.
-
: Made of cast aluminum, providing a lightweight yet strong and corrosion-resistant structure.
-
: Available with either aluminum alloy rollers or nylon rollers mounted on ball bearings for smooth rotation and reduced friction.
-
: The rollers are designed to guide cables smoothly, preventing abrasion and mechanical damage during installation.
-
: Typically supports loads around 200 kg or more, depending on the model.
-
: Common sizes are approximately 330 mm length × 230 mm width × 260 mm height.
-
: Suitable for cables up to about 150 mm in diameter.
-
: Often powder-coated or galvanized steel frames combined with the cast aluminum support for enhanced durability.
-
: Used extensively in cable laying projects to support and guide cables on the ground, reducing pulling tension and protecting cable jackets.

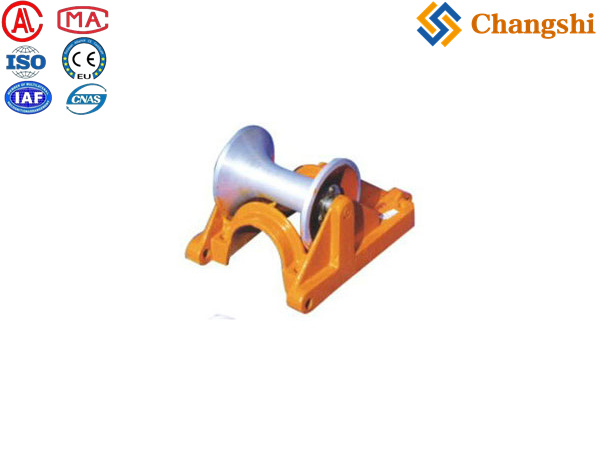

Cable ground roller (Cast aluminum support)
|
Order number |
Model |
Rated load (kn) |
Applicable cable diameter (mm) |
Weight (kg) |
|
21171 |
SHL1 |
5 |
Φ150 |
5.4 |
|
21172 |
SHL1N |
5 |
3.6 |
﹒Note :the model with “N” is nylon roller ,the other is aluminous roller.
-
: Cast aluminum support resists rust and environmental wear.
-
: Ball-bearing-mounted rollers reduce friction and ease cable movement.
-
: Suitable for various cable sizes and installation environments.
-
: Easier to handle on-site while maintaining robustness.
A Cable Ground Roller with Cast Aluminum Support is a robust, corrosion-resistant cable guide featuring cast aluminum frames and smooth aluminum or nylon rollers on ball bearings. It protects cables from damage during ground-level pulling or laying by providing smooth, low-friction guidance, supporting cables up to around 150 mm diameter and loads near 200 kg, making it essential equipment for efficient and safe cable installation.
