14T Hydraulic Conductor Tensioner For Overhead Power Transmission Line Stringing

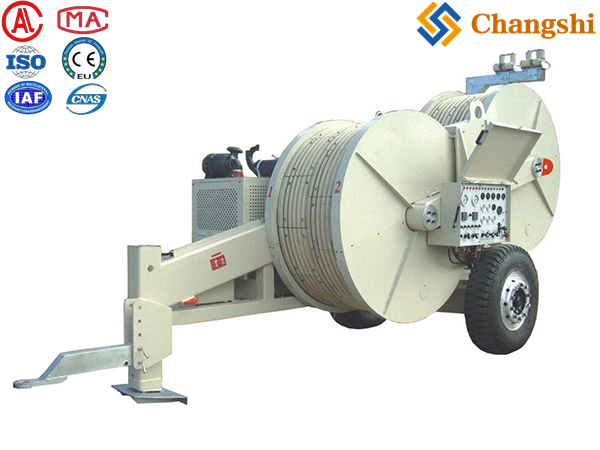

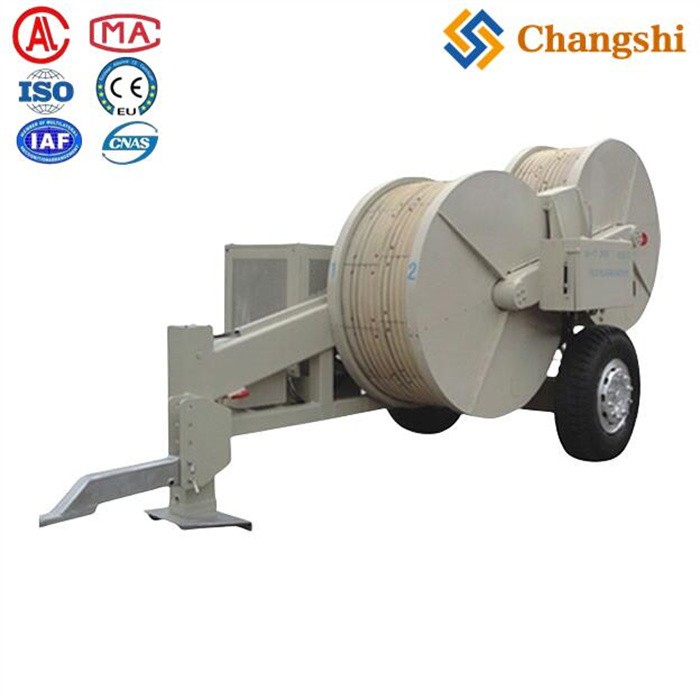

The SA YZ2x70 Hydraulic Tensioner is a heavy-duty hydraulic conductor tensioner designed for stringing overhead power line conductors and earth wires. It can tension either two conductors simultaneously or one conductor with high precision and safety.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
The SA YZ2x70 Hydraulic Tensioner is a heavy-duty hydraulic conductor tensioner designed for stringing overhead power line conductors and earth wires. It can tension either two conductors simultaneously or one conductor with high precision and safety.
-
: 2×70 kN or 1×140 kN
-
: 2×65 kN or 1×130 kN
-
: 5 km/h
-
: 2×63 kN or 1×126 kN
-
: 2×1.3 km/h
-
: 1700 mm with 2×6 grooves lined with wear-resistant MC nylon
-
Maximum Suitable Conductor Diameter: 45 mm
-
: Deutz air-cooled diesel engine, 82.5 kW at 2500 rpm
-
: Approximately 8500 kg
-
: 5300 × 2300 × 2900 mm
-
: DC 24V
-
-
Equipped with a spring-applied hydraulically released multi-plate brake that automatically engages in case of hydraulic failure, ensuring safe operation.
-
Infinitely variable tension control system enables constant-tension conductor stringing for improved efficiency and conductor safety.
-
Two hydraulic power output interfaces allow connection to hydraulic conductor reel stands, facilitating integrated operation.
-
High-quality components such as Rexroth (BOSCH) hydraulic pumps and valves, Italian RR reducers, AKG radiators, and WIKA hydraulic instruments ensure reliability and durability.
-
The bullwheel grooves and MC nylon lining provide wear resistance and secure conductor grip during stringing.
The SA YZ2x70 is suitable for stringing various types of conductors and earth wires on high-voltage power transmission lines, supporting both single and bundled conductor configurations.
In summary, the SA YZ2x70 Hydraulic Tensioner is a powerful, reliable, and safe tensioning solution designed for demanding overhead line construction projects, offering high tension capacity, precise control, and robust safety features
