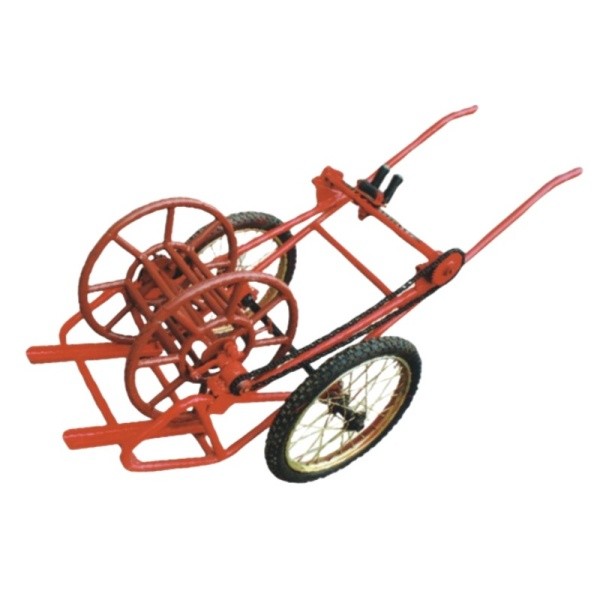

Manual Reelwinder with Automatic Level Wind Mechanism: Precision Spooling for Every Project
As a prominent China manufacturer and exporter, Ningbo Changshi Electric Power Machinery Manufacturing Limited understands that a successful project requires a complete range of tools, from heavy-duty machinery to simple, effective support equipment. The Manual Reelwinder with Automatic Level Wind Mechanism is a testament to this understanding. This innovative machine is an indispensable tool for a wide variety of tasks, providing a simple and highly effective way to wind wires onto a drum. Its core feature—the automatic level wind mechanism—ensures that the conductor is spooled in neat, organized layers, preventing crossover and damage that can occur with manual guiding.
The manual reelwinder is designed for versatility. While it can be operated by hand, its robust construction and compatibility also allow it to be easily cooperated with a powered winch or a small-scale puller. This flexibility makes it a cost-effective solution for projects where a full hydraulic reelwinder is not necessary or where off-grid operation is required. Whether you are recovering wire during maintenance, or using it as a powered take-up with another machine, this reelwinder brings a new level of precision and efficiency to your worksite.
Product Features & Benefits:
-
Automatic Level Wind Mechanism: This key feature ensures that conductors are spooled evenly and neatly onto the drum, preventing tangles, crossover, and conductor damage.
-
Manual Operation: Provides a simple, reliable, and cost-effective solution for projects where a powerful hydraulic system is not needed, and it can be used in remote locations without a power source.
-
Versatile Cooperation: Easily connects and works seamlessly with a powered winch or a small puller, transforming into a powered take-up reel for enhanced efficiency.
-
Robust & Portable: Built with a durable frame, the reelwinder is designed for longevity and can be easily moved around the worksite.
-
Organized Spooling: The controlled winding process simplifies conductor storage and reuse, saving you time and money.
Product Applications:
The manual reelwinder is an essential machine for:
-
OHTL Maintenance: Winding up wire and conductors during repairs or decommissioning tasks.
-
Distribution line stringing: Spooling pilot wires and light conductors on smaller-scale new line installations.
-
Conductor Recovery: Serving as a cost-effective alternative for recovering old conductors from existing lines.
-
Collaborative Operations: Partnering with powered winches or pullers to create an efficient, semi-automated winding system.
Technical Data Sheet:
|
Order number |
08201 |
08202 |
|
|
Model |
PSR-1 |
PSR-2 |
|
|
Size of drum (mm) |
Root diameter |
Φ420 |
Φ220 |
|
Outside diameter |
Φ720 |
Φ480 |
|
|
Width |
640 |
340 |
|
|
Dimensions (m) |
1.9×1.1×1 |
|
|
|
Weight (kg) |
60 |
40 |
|
Uses :to turn the reel to wind the wires into the drum ,equipped with automatic level wind mechanism ,also can be cooperated with a powered winch or a small scale puller to take up wires.
It needs to purchase take-up reel and carriage additionally.
Note: The actual specifications and performance may vary depending on the specific model and customer requirements. Please contact us for detailed technical datasheets for precise information.
