10kN Rated Tri-Roller Corner Cable Guide

10kN Rated Tri-Roller Corner Cable Guide: The Certified Solution for High-Tension Bends

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that for critical infrastructure projects, the safety and performance of every tool are non-negotiable. When pulling heavy cables around a corner, the forces exerted can be immense, and a certified load capacity is essential for project safety and compliance. Our 10kN Rated Tri-Roller Corner Cable Guide is a specialized tool meticulously engineered to meet these precise requirements. The "Corner ground roller assembly" is built around a heavy-duty "tri-roller" configuration with a professionally tested and certified "10kN" load capacity. This rating provides a clear and reliable performance metric, giving you confidence in its ability to handle high-tension pulls with maximum safety and stability. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply and services for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, this 10kN rated tri-roller guide exemplifies our unwavering commitment to providing innovative, durable, and highly efficient solutions that are critical for modern construction and maintenance.

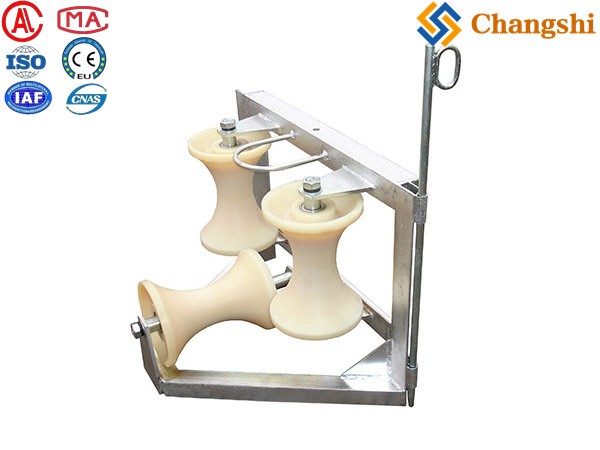

The 10kN Rated Tri-Roller Corner Cable Guide is designed to be placed firmly in the corner of a trench or manhole, providing a secure and low-friction path for a cable to follow as it changes direction. The "tri-roller" assembly consists of three rollers mounted at an angle, which together cradle the cable and guide it through the bend without sharp edges or high-stress points. This design offers several key advantages:

• Certified 10kN (approx. 1020 kgf) Capacity: The most critical feature is the professional certification, which guarantees the roller can safely and reliably withstand a specific pulling force, providing a clear safety margin for your projects.

• Precision-Engineered Tri-Roller Design: The three-point contact system ensures the cable is fully supported and guided through the bend, minimizing friction and preventing the cable from jamming or scraping against the trench wall.

• Exceptional Stability: The robust frame and wide base prevent the assembly from tipping or moving during high-tension pulls, ensuring consistent and reliable performance.

• Durable & Long-Lasting Construction: Built with high-strength materials that are designed to resist impact and abrasion, ensuring a long service life even in the most demanding job site conditions.

By deploying Ningbo Changshi's 10kN Rated Tri-Roller Corner Cable Guide, you invest in a practical, durable, and essential tool that provides uncompromising safety and precision control at the most critical points of your cable installation, saving time, reducing potential damage, and ensuring project compliance with every pull.

Product Features & Benefits:

• Specific 10kN Load Rating: Provides a certified and reliable performance metric, guaranteeing the roller's ability to safely handle high-tension pulls up to 10 kilonewtons.

• Heavy-Duty Tri-Roller Configuration: The robust three-point contact system securely cradles and guides heavy cables around corners with exceptional stability and load-bearing capacity.

• Precision-Engineered Rollers: Ensures a smooth, low-friction transition, protecting the cable from damage and reducing the pulling force required.

• Highly Stable & Secure Design: The reinforced frame and wide base prevent the assembly from shifting or tipping, ensuring a safe and controlled pull.

• Long-Lasting Durability: Constructed from high-strength materials with protective finishes, built to withstand the rigors of the job site and resist corrosion.

• Essential for Project Compliance: The certified load rating is a key factor for meeting stringent safety and engineering standards on large-scale projects.

• Enhanced Safety: The certified load rating provides peace of mind and reduces the risk of equipment failure and accidents during high-tension cable installation.

Product Applications:

Our 10kN Rated Tri-Roller Corner Cable Guide is an indispensable tool for a wide range of demanding, safety-critical cable handling and deployment projects:

• High-Voltage power transmission Projects: Essential for guiding massive and heavy power cables through trenches with bends and corners, where precise control and certified equipment are mandatory.

• Substation & Industrial Installations: Ideal for deploying large-diameter cables in environments with high pulling forces, ensuring safety and integrity.

• Major Infrastructure Projects: The certified load rating makes it a preferred choice for large-scale projects where engineering specifications require specific equipment ratings.

• Any Project with High-Tension Pulling: Applicable wherever a powerful winch is used and a strong, certified corner guide is needed to manage and control the pulling forces.

Technical Data Sheet (Example Specifications - please refer to specific model for exact data):

Note: The actual specifications, load capacities, and dimensions depend on the specific model. It is crucial to select a roller that meets the weight and size requirements of your cables and project specifications. Proper placement and secure anchoring are essential for safe and efficient pulling. Please contact us for detailed datasheets for specific models and their exact specifications, compatible cable sizes, and load capacities.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing high-performance, precise, and safe equipment for your power lines, substations, electrical construction, and maintenance. Here’s why our 10kN Rated Tri-Roller Corner Cable Guide is your ideal choice:

1. Certified Performance & Safety: The 10kN load rating is a testament to our commitment to engineering excellence, providing a certified safety margin and the reliability you need for high-stakes projects.

2. Uncompromising Strength & Durability: Our heavy-duty design and robust construction are engineered to handle the immense forces of high-tension cable pulling, ensuring a long service life and consistent performance.

3. Superior Cable Protection: The precision-engineered tri-roller assembly ensures a smooth, guided transition, protecting your valuable cables from friction and damage at the most critical points of the installation.

4. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead transmission line and underground cable laying projects, streamlining your entire procurement process with a single, reliable source for all your specialized tools.

5. Global Trust & Proven Excellence: Our unwavering commitment to quality, innovation, and safety has earned us the trust of leading power utilities and electrical contractors worldwide, making us the preferred choice for reliable, high-performance solutions that safeguard the future of power and communication infrastructure.

Final Summary:

Our 10kN Rated Tri-Roller Corner Cable Guide is an indispensable, intelligently engineered solution designed for the safe, efficient, and damage-free handling of cables during high-tension pulls at bends and corners. Its certified 10kN load rating is fundamental to simplifying a complex aspect of cable pulling and enhancing overall project efficiency and safety. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to provide the cutting-edge equipment essential for the success and reliability of your next heavy-duty cabling endeavor.

Equip your high-tension pulls with a certified solution! Explore our 10kN Rated Tri-Roller Corner Cable Guides. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific high-capacity installation challenges and request a comprehensive quotation for this essential, high-performance tool!
