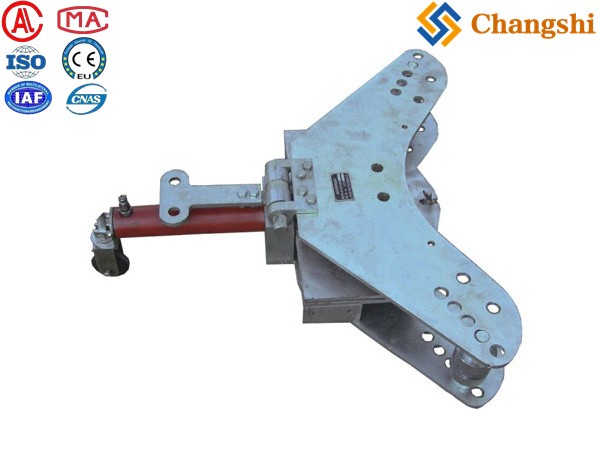

Model YMW-120x10 Hydraulic Busbar Bender for Copper and Aluminum
Our Model YMW-120x10 hydraulic busbar bender is a powerful tool for precision horizontal and vertical bends on copper and aluminum busbars. The ideal choice for electrical and substation construction.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
Model YMW-120x10 Hydraulic Busbar Bender: Precision Bending for Modern Electrical Construction
As a prominent China manufacturer and exporter, Ningbo Changshi Electric Power Machinery Manufacturing Limited is a specialist in providing a comprehensive array of tools and equipment for the most demanding tasks in electrical construction. Our Model YMW-120x10 Hydraulic Busbar Bender is a powerful and indispensable tool engineered for the precise bending of busbars. It is specifically designed to perform both horizontal and vertical bends with ease, making it a highly versatile solution for intricate electrical installations, switchgear assembly, and substation fabrication.
What sets our YMW-120x10 apart is its purpose-built design for a crucial task. It leverages hydraulic power to apply the force necessary for clean, consistent bends without distorting the busbar. This hydraulic operation requires minimal user effort and ensures repeatable, professional results every time. The tool is compatible with both aluminum and copper busbars, making it a versatile asset for a wide range of projects. Its robust construction guarantees durability, while its precise bending capabilities ensure that busbars fit perfectly into electrical cabinets, panels, and switchgear, which is critical for safety and optimal performance.
Product Features & Benefits:
-
Horizontal and Vertical Bending: The versatile design allows for both horizontal and vertical bends, providing a comprehensive solution for all your busbar fabrication needs.
-
Hydraulic Power for Precision: The powerful hydraulic mechanism ensures a smooth, controlled bending process, resulting in clean, accurate bends without deformation.
-
High-Quality Bending for Copper and Aluminum: The tool is engineered to handle both aluminous and cupreous (aluminum and copper) busbars, making it a versatile choice for modern electrical systems.
-
Robust and Durable Construction: Made from high-strength materials to withstand the rigors of industrial use, ensuring a long service life and reliable performance.
-
Increased Efficiency: The speed and ease of hydraulic bending significantly improve efficiency, allowing work crews to complete busbar fabrication jobs faster and with less physical strain.
Product Applications:
The Model YMW-120x10 Hydraulic Busbar Bender is an essential tool for:
-
Substation and Switchgear Fabrication: The primary application for creating precise bends for busbars within electrical substations, switchgear, and control panels.
-
Electrical Panel Assembly: Ideal for bending busbars to fit perfectly within electrical cabinets and enclosures, ensuring a clean and professional installation.
-
On-Site Busbar Work: A portable and powerful solution for making busbar bends directly on the worksite, eliminating the need for off-site fabrication and reducing project time.
Technical Data Sheet:
| Feature | Specification |
| Model | YMW-120x10 |
| Type | Hydraulic Busbar Bender |
| Max. Bending Size | 120mm x 10mm (Width x Thickness) |
| Bending Force | Varies by Model (e.g., 200kN) |
| Busbar Materials | Aluminum and Copper |
| Bending Angles | Up to 90° |
order number : 06211
·uses: use to bend horizontal and vertical of aluminous and cupreous bus-bar .
·essential parameters
Stroke (mm):200
Range bended :
Row width (mm):40、50、63、80、100、120
Thickness (mm):4-10
Angle bended :≥90°
Radius bended (mm):2.5×the row width
·Notes :need purchase the mating manual pump (order number :16162～16163)
Note: The actual specifications and performance may vary depending on the specific model and customer requirements. Please contact us for detailed technical datasheets for precise information.Why Choose Ningbo Changshi for Your OHTL Tools?
Choosing Ningbo Changshi means partnering with a company that provides a full spectrum of high-quality tools for every aspect of electrical construction. Our Model YMW-120x10 Hydraulic Busbar Bender is a perfect example of a specialized tool that delivers superior power, precision, and efficiency. We provide highly-engineered, durable, and effective solutions that protect your crews and ensure the integrity of your work, every time.
Final Summary
The Model YMW-120x10 Hydraulic Busbar Bender is the definitive solution for creating clean, professional, and precise bends in busbars. Its powerful hydraulic mechanism and ability to handle both horizontal and vertical bends make it an indispensable tool for electrical construction, guaranteeing superior results with minimal effort.
Ensure the precision and professionalism of your busbar fabrication. Learn more about our Model YMW-120x10 Hydraulic Busbar Bender and how it can benefit your operations. Contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to request a detailed quotation and technical specifications tailored to your specific needs!
