Aluminum Alloy Swivel Gin Pole with Adjustable Double Frame
Our aluminum alloy swivel gin pole features a 180° rotating turntable and adjustable double frame for multi-directional lifts. Ideal for complex overhead line construction and maintenance with maximum precision.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
Model LBXH-10 Aluminum Alloy Swivel Gin Pole: The Premier Solution for Precision Multi-Directional Lifting
As a prominent China manufacturer and exporter, Ningbo Changshi Electric Power Machinery Manufacturing Limited is a specialist in providing a comprehensive array of tools and equipment for the most demanding tasks in electrical construction. Our Model LBXH-10 Aluminum Alloy Swivel Gin Pole with Adjustable Double Frame represents the pinnacle of our engineering innovation. This highly-specialized tool is designed for lifting operations that require not just power, but unparalleled precision and multi-directional adaptability. It is a critical asset for complex overhead transmission line (OHTL) projects where a standard vertical lift is insufficient.

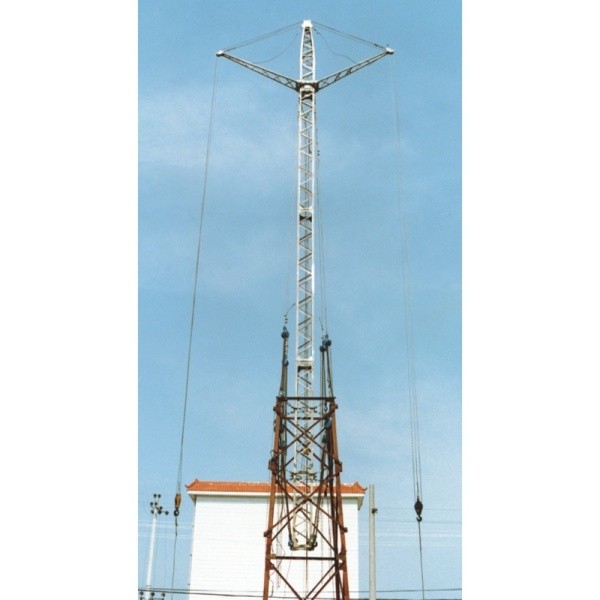

What sets this gin pole apart is its unique, advanced design. The top and bottom segments of the pole are linked by a 180° revolving turntable, allowing the entire upper section to rotate with precision. Furthermore, two adjustable-length frames are mounted on either side of the turntable, providing multiple lifting points and the flexibility to accommodate various load sizes and angles. Crafted from high-strength aluminum alloy, this inner-suspended gin pole is both lightweight for easy transport and exceptionally durable. This combination of a rotating turntable and double adjustable frames makes it an indispensable tool for intricate rigging, enabling workers to lift, swivel, and position heavy components with a level of control unmatched by traditional gin poles.
Product Features & Benefits:
-
180° Swivel Turntable: The revolving top segment provides multi-directional lifting capability, allowing for precise positioning of components without re-rigging the entire pole.
-
Adjustable Double Frame: The two frames with adjustable lengths offer multiple lifting points, accommodating a wide range of load sizes and shapes, and providing enhanced stability.
-
Inner-Suspended Design: This robust design ensures the pole's stability and strength, making it a reliable tool for heavy-duty lifting applications.
-
Lightweight and High Strength Aluminum Alloy: The use of aviation-grade aluminum ensures the pole is easy to handle, transport, and set up, reducing labor and logistical costs.
-
Model LBXH-10: As a testament to its specialized nature, this specific model designation ensures you are receiving a highly-engineered product for complex rigging tasks.
Product Applications:
The Aluminum Alloy Swivel Gin Pole is an essential tool for:
-
Complex OHTL Construction: The primary application for multi-directional lifting and positioning of conductors, Stringing Blocks, and insulators in confined or obstacle-rich environments.
-
Substation and Terminal Maintenance: Used to lift and position heavy components into tight spaces, such as inside substations where precise, multi-directional movement is required.
-
Advanced Rigging: An ideal tool for any rigging operation that demands a high degree of precision and adaptability, allowing for intricate adjustments of the load without repositioning the gin pole itself.
Technical Data Sheet:
| Feature | Specification |
| Model | LBXH-10 |
| Material | High-Strength Aluminum Alloy |
| Design | Inner-Suspended Swivel Gin Pole with Double Frame |
| Turntable Rotation | 180° |
| Frame Length | Adjustable |
| Maximum Load Capacity | Varies by Model (e.g., 20kN - 80kN) |
| Overall Length | Varies by Model (e.g., 8m - 20m) |
| Safety Factor | 2.5 (Standard) |
Top segment length (m): 2.5
Bottom segment length (m):12
Frame length (m):2.0
Section of gin pole(mm):500×500
Limited hoisting load (kN):
Both side balanced :2×10
Single side :10
·Features:
The top segment of gin pole was linked together
with its bottom segment by a turntable .two frame
are mounted on the both side of the turntable and
it can be revolved in 180°The length of frame is adjustable .
·weight (kg):400.
Note: The actual specifications and performance may vary depending on the specific model and customer requirements. Please contact us for detailed technical datasheets for precise information.Why Choose Ningbo Changshi for Your Gin Poles?
Choosing Ningbo Changshi means partnering with an industry leader who possesses a deep understanding of the complexities of electrical construction. Our Model LBXH-10 Swivel Gin Pole is a prime example of our commitment to providing specialized, purpose-built, and highly-engineered solutions that enhance safety, precision, and efficiency. As your one-stop supplier, we provide not just standard lifting tools, but innovative solutions that push the boundaries of what is possible in OHTL projects.
Final Summary
The Aluminum Alloy Swivel Gin Pole with Adjustable Double Frame is the definitive solution for complex, multi-directional lifting operations. Its unique design and high-quality construction make it an indispensable tool for streamlining your most demanding construction projects with superior safety and performance.
Ensure the safety and success of your intricate lifting operations. Learn more about our Model LBXH-10 Swivel Gin Pole and how its advanced features can benefit your projects. Contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to request a detailed quotation and technical specifications tailored to your specific needs!
