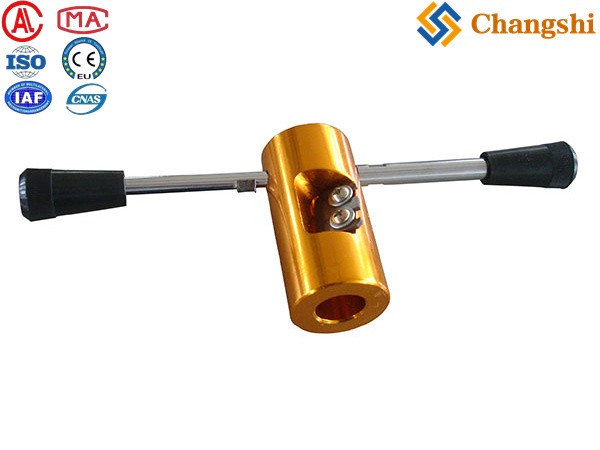

XLPE Main Insulation Chamfering Tool for Power Cables

XLPE Main Insulation Chamfering Tool: Precision Shaping for Cross-Linked Polyethylene Power Cables

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that the long-term reliability of medium and high voltage (MV/HV) cable systems is profoundly influenced by the quality of cable preparation. Imperfections on the primary insulation layer, even subtle ones, can lead to critical electrical stress points and eventual system failure. Our XLPE Main Insulation Chamfering Tool for Power Cables is a highly specialized and indispensable instrument, meticulously engineered "to sharpen the main insulating layer of cross linked polythene electric power cable." This advanced tool ensures a perfectly smooth, precise, and consistent chamfer or taper on the XLPE insulation, which is absolutely vital for the flawless interface with cable accessories during termination and jointing. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, this insulation chamfering tool exemplifies our unwavering commitment to providing innovative, durable, and highly effective equipment that ensures superior safety, efficiency, and the unparalleled performance of your critical electrical infrastructure.

"Cross-linked polyethylene" (XLPE) is a widely used and robust insulation material for modern power cables due to its excellent dielectric properties. However, preparing this material, especially creating a smooth, stress-reducing chamfer or taper on its main insulating layer, requires specialized tools to avoid damaging the integrity of the remaining insulation. Our XLPE Main Insulation Chamfering Tool is designed specifically for this purpose. It utilizes precision blades and a stable guiding mechanism to apply a controlled cut, ensuring a consistent and smooth surface profile on the XLPE insulation. This process is crucial for preventing partial discharges at the edge of the insulation and for ensuring proper contact with stress control tubes or termination bodies. The tool's ergonomic design facilitates easy and stable operation, significantly reducing the manual effort and time required compared to less precise methods. By utilizing this specialized insulation sharpener, electrical professionals can achieve repeatable, high-quality results that comply with rigorous industry standards, directly contributing to the enhanced safety, performance, and longevity of MV/HV cable installations.

Product Features & Benefits:

• Precise Main Insulation Shaping: Specifically engineered to create a perfectly smooth and accurate chamfer or taper on the primary XLPE insulation layer of power cables, crucial for high-quality MV/HV terminations and joints.

• Optimized for XLPE Material: Designed with blade geometry and material compatibility in mind for cross-linked polyethylene insulation, ensuring clean cuts without tearing or deforming the material.

• Damage-Free Operation: Meticulously engineered to remove insulation material without scoring, nicking, or compromising the integrity of the underlying conductor or adjacent layers, preserving cable reliability.

• Consistent & Smooth Cut Surface: Produces a uniform and smooth insulation surface, eliminating electrical stress points and ensuring optimal interface for cable accessories.

• Adjustable Capabilities (Varies by model): Many models offer adjustable blade depth and/or chamfer length/angle to accommodate different cable insulation thicknesses and specific termination requirements.

• Convenient & Efficient: Designed for ease of use, allowing technicians to quickly and effectively achieve the required insulation profile, significantly speeding up cable preparation.

• Robust & Durable Construction: Manufactured from high-grade, resilient materials and precision-machined components for exceptional longevity and reliable performance in demanding field conditions.

• Enhances Electrical Performance: A precise chamfer minimizes electrical stress at the insulation cutback, significantly reducing the risk of partial discharges and improving long-term reliability of connections.

• Reduces Manual Effort & Improves Safety: Eliminates the need for tedious, less precise manual shaping with knives, reducing operator fatigue and the risk of injury during a critical cable preparation step.

Product Applications:

Our XLPE Main Insulation Chamfering Tool is an essential, high-precision instrument for a variety of critical MV/HV cable preparation applications:

• Medium Voltage (MV) Cable Terminations: Indispensable for creating the required insulation chamfer or taper for stress control components in heat-shrink, cold-shrink, and push-on terminations (e.g., 6kV, 10kV, 15kV, 20kV, 33kV, 35kV).

• High Voltage (HV) Cable Jointing & Splicing: Crucial for precise insulation preparation when creating straight joints or transition joints on XLPE insulated cables.

• Substation & Power Plant Cable Preparation: For accurate shaping of XLPE power cable insulation before connecting to transformers, switchgear, and other high-voltage apparatus.

• Renewable Energy Sector: Essential for preparing XLPE power cables for connections in wind farms, solar power plants, and grid-tie infrastructure.

• Cable Repair & Upgrades: For re-preparing XLPE cable insulation when performing repair joints or re-terminations on damaged or aging cables.

• Specialized cable installations: Any application where a perfectly formed, smooth insulation edge is mandated by cable accessory manufacturers or project specifications.

Technical Data Sheet:

Note: Always use the correct insulation sharpener model and settings for the specific cable diameter, XLPE insulation thickness, and required chamfer/taper profile as specified by the cable and termination accessory manufacturer. Improper use can severely damage cable insulation and lead to electrical failure. Regular cleaning of the tool and replacement of worn blades are crucial for maintaining precision and safety. Please contact us for detailed datasheets for specific models and their compatibility with various XLPE cable constructions and termination types.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing high-performance, safe, and efficient tools for your critical power line and electrical construction needs. Here’s why our XLPE Main Insulation Chamfering Tool is your ideal choice:

1. Unmatched Precision for XLPE Insulation: Specifically engineered to create flawless, smooth chamfers or tapers on XLPE main insulation, directly enhancing the electrical integrity and lifespan of your critical MV/HV terminations and joints.

2. Optimized for Performance: This specialized tool ensures consistent, damage-free preparation, which is vital for preventing electrical stress points and ensuring the long-term reliability of power cables.

3. Enhanced Efficiency & Safety: Significantly speeds up the intricate insulation shaping process while minimizing the risk of operator injury and costly cable damage, boosting productivity on site.

4. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead and underground power line projects, streamlining your entire procurement process with a single, reliable source for all your specialized tooling needs.

5. Global Trust & Proven Excellence: Our unwavering commitment to quality, innovation, and safety has earned us the trust of leading power utilities and electrical contractors worldwide, making us the preferred choice for reliable, high-performance MV/HV cable preparation tools.

Final Summary:

Our XLPE Main Insulation Chamfering Tool is an indispensable, meticulously engineered instrument designed for the precise, safe, and efficient shaping of the main insulating layer of cross-linked polyethylene power cables. It ensures a perfectly smooth chamfer or taper, which is critical for the long-term reliability and integrity of MV/HV cable terminations and joints. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your teams with high-quality, dependable, and intelligently designed tools that are fundamental to achieving superior efficiency, safety, and project success for all your critical XLPE cable applications.

Ensure flawless XLPE insulation preparation and maximum cable reliability! Explore our XLPE Main Insulation Chamfering Tools. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific XLPE cable preparation requirements and request a comprehensive quotation for this essential, precision tool!
