Strong Aluminum Alloy Inner Suspended Lattice Gin Pole for Power Line Projects
Discover durable aluminum alloy inner–suspended lattice gin pole solutions for safe, efficient tower and line construction.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video

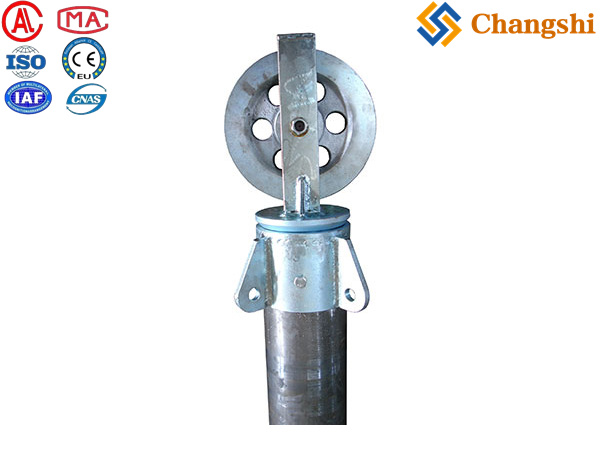

An aluminum alloy inner-suspended lattice gin pole for power line projects is a specialized lifting tool used for assembling and erecting transmission towers and poles. These gin poles are constructed primarily from high-strength angle aluminum alloy, featuring a lattice structure that provides strength and stability while remaining lightweight for easy transportation and assembly on site.
-
: Made from high-strength angle aluminum alloy with galvanized steel parts for corrosion resistance. The lattice design enhances load capacity and durability.
-
: The gin pole features an inner-suspended frame style, which means the lattice structure is internally braced, improving rigidity and load distribution.
-
: Available in various lengths typically ranging from 8 to 25 meters. Cross-sectional side lengths vary from 250 mm up to 650 mm, depending on the model.
-
: Allowable axial loads range widely from about 10 kN for smaller, shorter poles to as high as 120 kN for larger, longer poles with bigger cross sections (e.g., 650x650 mm). For example, a 25-meter gin pole with a 650x650 mm cross-section can handle up to 120 kN.
-
: These gin poles generally have a safety factor of 2.5, ensuring reliable performance under working loads in power line construction.
-

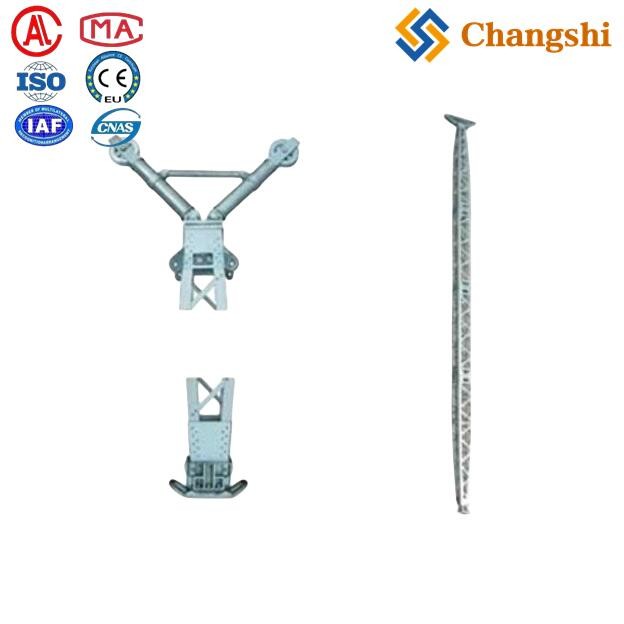

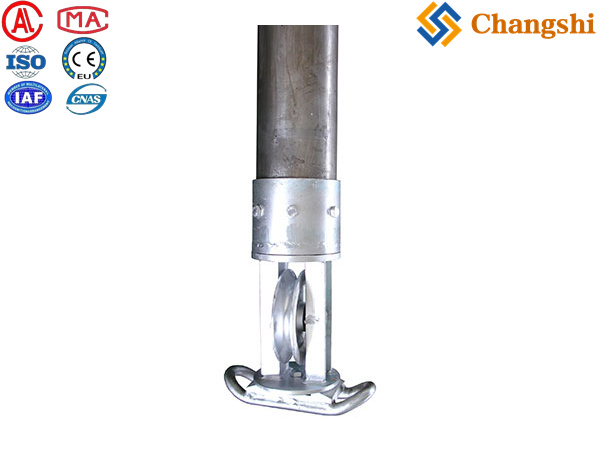

: Multiple head types (up to three) and bottom types (two options) can be selected based on project requirements, allowing customization for different lifting and erection tasks.
-
: Weight per meter varies by size, typically from about 10.5 kg/m for smaller models (250 mm cross-section) to around 24 kg/m for larger reinforced models (600 mm cross-section).
-
: Designed for tower erection and material lifting in overhead power line construction, used in conjunction with motorized winches and pulley systems.
-
| Model | Length (m) | Cross Section (mm) | Max Working Load (kN) | Weight (kg/m) | Remarks |
|---|---|---|---|---|---|
| LBNX250-10 | 10 | 250 | 23 | 10.5 | Single pulley |
| LBNX400-12 | 12 | 400 | 43 | 14.6 | Double pulley |
| LBNX600B-25 | 25 | 600 (strengthened) | 119 | 24 | Heavy-duty model |
| LBNX650 | 25 | 650 | 120 | - | Inner suspension |
The aluminum alloy inner-suspended lattice gin pole is a robust, lightweight, and customizable tool essential for power line construction projects, enabling safe and efficient tower and pole erection. Its high strength-to-weight ratio, multiple size options, and flexible head and bottom configurations make it suitable for various transmission and distribution line engineering tasks.
