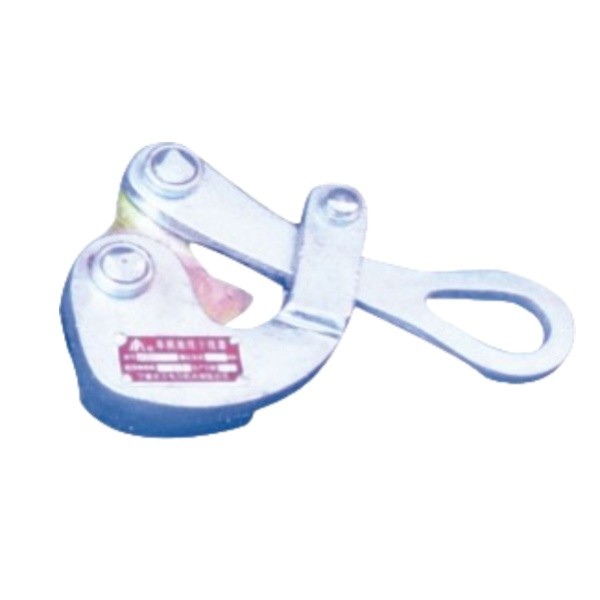

Single-Cam Earthwire & Guy Wire Grip for OHTL Sagging & Adjustment

Single-Cam Earthwire & Guy Wire Grip: Precision Sagging and Adjustment for Enhanced Overhead transmission line (OHTL) Stability

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that achieving precise tensioning and sag for both earthwires and guy wires is fundamental to the long-term stability and performance of overhead transmission lines. Our Single-Cam Earthwire & Guy Wire Grip is a specialized, meticulously engineered tool designed for secure, controlled, and efficient gripping during the sagging of earthwires and the precise adjustment of guy wires. As a prominent China manufacturer and exporter, we offer a comprehensive one-stop supply for a wide array of tools and equipment for power lines, and this single-cam grip exemplifies our unwavering commitment to practical utility, robust design, and reliable performance for optimizing your OHTL construction and maintenance operations.

The single-cam mechanism in this grip provides a powerful and reliable clamping action. As tension is applied, the eccentric cam rotates, progressively tightening its grip on the wire. This design allows for quick attachment and release while ensuring a positive lock, which is crucial when performing sensitive adjustments to the sag of earthwires or fine-tuning the tension of support guy wires. The ability to handle both earthwires and guy wires makes this grip a versatile and indispensable tool for line crews, streamlining their toolkit and enhancing efficiency on site. It ensures that critical wires are held securely without slippage, contributing to both operational safety and the structural integrity of the entire line.

Product Features & Benefits:

• Single-Cam Mechanism: Features a powerful, eccentric cam that provides a self-tightening, non-slip grip as tension increases, allowing for quick, secure attachment and release.

• Dual Application Versatility: Specifically designed for effective gripping of both earthwires (ground wires/shield wires) and various types of guy wires (stay wires), offering a highly versatile tool for diverse line construction tasks.

• Precision Sagging & Adjustment: Provides a stable anchor point for applying controlled tension, enabling precise adjustment of sag in earthwires and accurate tensioning of guy wires to meet specifications.

• Robust & Durable Construction: Manufactured from high-strength forged alloy steel, heat-treated for superior durability and wear resistance, ensuring long service life in demanding field conditions.

• Secure & Non-Damaging Grip: The cam and jaw design are engineered to provide a firm, positive grip on the wire without causing severe damage, kinking, or excessive deformation, preserving the integrity of the wire.

• Quick & Efficient Operation: The single-cam design allows for rapid application and removal, significantly improving operational efficiency on site.

• Corrosion Resistance: Components are typically hot-dip galvanized or coated to provide excellent protection against rust and environmental degradation.

• Compact & Portable: Optimized for easy handling and transport by linemen working at height or in various work environments.

Product Applications:

Our Single-Cam Earthwire & Guy Wire Grip is an essential tool for a wide range of operations involving both ground wires and guy wires on overhead transmission and distribution lines:

• Earthwire Sagging & Tensioning: Crucial for achieving precise sag and tension on earthwires (including OPGW, steel, and aluminum stranded) during initial installation and re-tensioning.

• Guy Wire Adjustment: Ideal for pulling and fine-tuning the tension of guy wires that support poles and towers, ensuring structural stability.

• Anchor Rod Adjustment: Can be used in conjunction with other tools for adjusting the tension on anchor rods for pole stability.

• Temporary Wire Holding: Provides a secure temporary hold for both earthwires and guy wires during various stages of construction or maintenance.

• Line Maintenance & Repair: Indispensable for securing wires during splicing, re-tensioning, or other repair activities.

• Utility Pole & Tower Erection: Used extensively during the installation and stabilization of poles and towers that utilize guy wires.

Technical Data Sheet:

Note: Specific technical specifications, including exact working load limit and compatible wire diameter range, will vary depending on the model and intended application. Always operate within the stated WLL. Please contact us for detailed datasheets for specific product variants.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to precision, versatility, and comprehensive solutions for critical power line components. Here’s why we are your ideal choice:

1. Versatile Application: Our single-cam grip effectively handles both earthwires and guy wires, streamlining your tool inventory and improving crew efficiency on diverse tasks.

2. Comprehensive One-Stop Solutions: As a prominent manufacturer and exporter, we offer a vast array of equipment for both overhead and underground power line projects, providing a truly integrated supply chain that simplifies your procurement.

3. Unwavering Quality & Control: Every Single-Cam Earthwire & Guy Wire Grip undergoes rigorous quality control and testing, ensuring it is robust, reliable, and provides precise tension control for optimal sagging and adjustment.

4. Global Export & Dedicated Support: Our efficient worldwide export capabilities and committed customer service team ensure prompt delivery and expert technical assistance, wherever your project is located.

5. Enhanced Line Stability: We provide tools that enable accurate installation and adjustment of earthwires and guy wires, directly contributing to the long-term stability and safety of your overhead transmission lines.

Final Summary:

Our Single-Cam Earthwire & Guy Wire Grip is an indispensable, purpose-built tool designed for the secure, efficient, and precise sagging of earthwires and adjustment of guy wires on overhead transmission lines. Its innovative single-cam mechanism ensures a powerful, non-slip grip, significantly enhancing safety and productivity across these critical applications. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your projects with high-quality, dependable, and intelligently designed tools for optimal line performance and stability.

Achieve precise tension for earthwires and guy wires! Explore our Single-Cam Earthwire & Guy Wire Grips. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific wire gripping and adjustment needs and request a comprehensive quotation!
