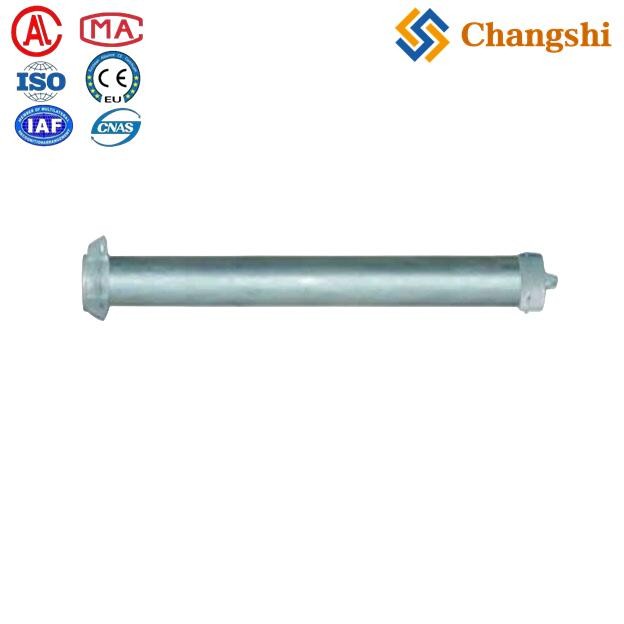

An aluminum alloy tower-mounted tubular small gin pole is a lightweight, strong lifting device used primarily for assembling and erecting pole towers in power line construction projects. It is designed to provide safe and efficient hoisting support during the erection of transmission and distribution poles.
-
: Made of high-strength aluminum alloy tubes with galvanized steel parts to resist corrosion. The tubular design offers a good balance of strength and light weight.
-
: Typically designed with a safety factor of 2.5, ensuring reliable performance under working loads during line construction.
-
: Allowable axial loads range from about 11 kN to 35 kN depending on the model and length. Weight per meter varies from approximately 5.5 kg/m to 8 kg/m.
-
: Common models include:
-
LBGT100 series with diameters around 100 mm and lengths from 5 to 6 meters, axial loads of 11 to 14 kN, and weight about 5.5 kg/m.
-
LBGT120 series with 120 mm diameter, lengths from 4.5 to 7 meters, axial loads from 14.5 to 35 kN, and weight around 7.5 kg/m.
-
LBGT150 series with 150 mm diameter, lengths from 6 to 8 meters, axial loads from 16 to 31 kN, and weight about 8 kg/m.
-
-

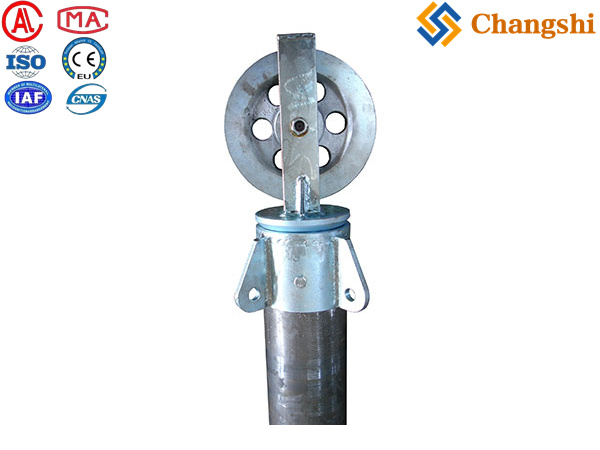

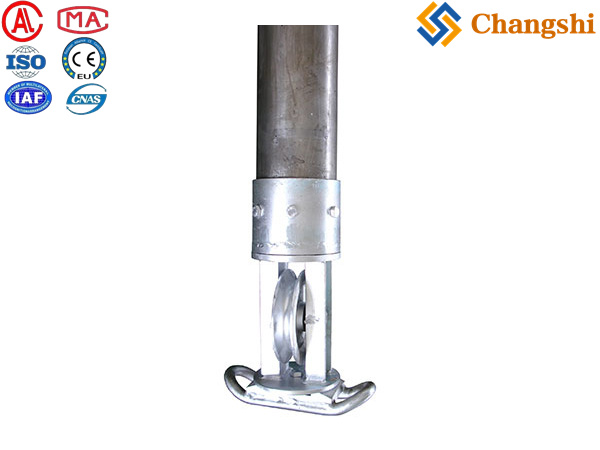

: These gin poles are tower-mounted and tubular, often with swivel heads and bases to allow flexible positioning. They can be connected in sections to achieve the desired length.
-
: Used for erecting small to medium-sized pole towers in power line projects, providing support for lifting and positioning poles and components safely.
-
: Support abutments or bases are typically required to stabilize the gin pole during use.
-
| Model | Diameter (mm) | Length (m) | Allowable Axial Load (kN) | Weight (kg/m) |
|---|---|---|---|---|
| LBGT100-5 | 100 | 5 | 14 | 5.5 |
| LBGT120-4.5 | 120 | 4.5 | 35 | 7.5 |
| LBGT150-6 | 150 | 6 | 31 | 8 |
The aluminum alloy tower-mounted tubular small gin pole is an essential tool for power line construction, combining lightweight aluminum alloy tubing with a robust tubular design. It provides a safe, efficient, and versatile solution for erecting pole towers, with multiple models available to suit various load and length requirements. The design includes a safety factor of 2.5 and galvanized steel components to ensure durability and reliability in field conditions.
