Precision Zoom Sag Scope for Overhead Line Conductor Adjustment

Precision Zoom Sag Scope: Unrivaled Accuracy for overhead line Conductor Adjustment

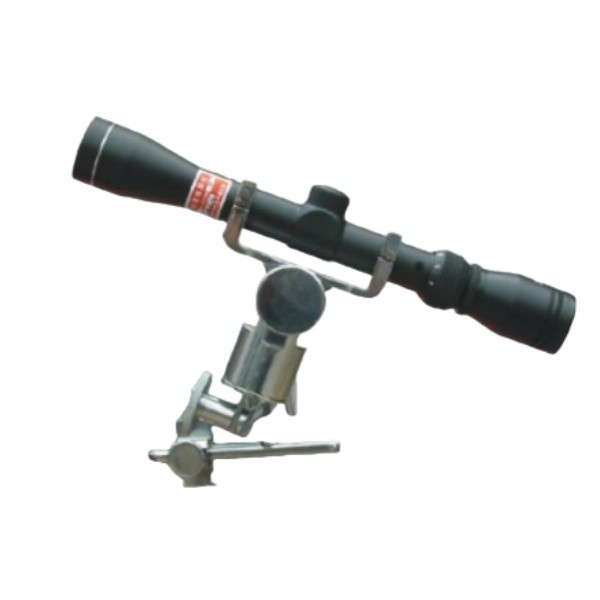

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that achieving the correct conductor sag is paramount for the safe, efficient, and reliable operation of overhead transmission and distribution lines. Incorrect sag can lead to dangerous clearance violations, increased ice and wind loading, and premature conductor fatigue. Our Precision Zoom Sag Scope for overhead line Conductor Adjustment is a highly specialized and meticulously engineered optical instrument designed to provide unparalleled accuracy in sag measurement. As a "Zoom sag scope," it allows engineers and line crews to precisely observe and adjust conductor tension from a distance, ensuring that conductors are installed with the exact sag specified for optimal performance and safety. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, this precision zoom sag scope exemplifies our unwavering commitment to providing innovative, durable, and highly effective equipment that ensures superior safety, efficiency, and the long-term performance of your crucial electrical infrastructure projects.

The Zoom Sag Scope is an indispensable tool in the final stages of overhead line construction, particularly during tension stringing and sagging operations. The principle involves establishing two reference points on adjacent structures (towers or poles) and using the precision optics to observe the lowest point (sag) of the conductor between these structures. The "zoom" capability is critical, allowing operators to achieve a clear, magnified view of the conductor and reference points even over very long spans or in challenging visual conditions. This eliminates guesswork and the need for hazardous manual measurements at height. Our sag scopes typically feature high-quality lenses, adjustable magnification, and an internal reticle or target system that facilitates precise alignment and measurement. They are designed for robust field use, often with waterproof and shock-resistant casings. By integrating Ningbo Changshi's Precision Zoom Sag Scope into your power line projects, you ensure that every span is sagged to specification, optimizing current-carrying capacity, maintaining crucial clearances, and significantly extending the service life of your conductors and structures.

Product Features & Benefits:

• High-Precision Optical System: Equipped with superior quality lenses and an adjustable zoom magnification (e.g., 20x to 40x) for clear, sharp, and magnified viewing of conductors and targets over long distances.

• Accurate Sag Measurement: Allows for precise measurement of conductor sag and tension, critical for achieving specified line parameters and ensuring compliance with clearance regulations.

• Integrated Reticle/Targeting System: Features a clear internal reticle (crosshairs or specialized markings) to accurately align with conductor low points and reference targets.

• Robust & Weatherproof Construction: Built with durable, shock-resistant materials and sealed to be waterproof/fogproof, ensuring reliable performance in demanding outdoor conditions.

• Long-Range Visibility: High magnification enables accurate observation of conductor sag across long spans, reducing the need for multiple observation points.

• Enhanced Safety: Eliminates the need for personnel to be in hazardous proximity to conductors for measurement, allowing for observation from a safe distance.

• Versatile Mounting: Designed to be mounted on a sturdy tripod for stable observation, ensuring consistent and repeatable measurements.

• Optimizes Line Performance: Ensures conductors are sagged to ideal tension, leading to optimal current carrying capacity, reduced line losses, and extended conductor lifespan.

• Reduces Project Rework: Precision measurement reduces errors in sag adjustment, minimizing costly rework and accelerating project completion.

• Portable & User-Friendly: Designed for ease of transport and quick setup in the field, with intuitive adjustments for focus and magnification.

Product Applications:

Our Precision Zoom Sag Scope is an indispensable tool for critical operations in overhead transmission and distribution line construction and maintenance:

• New Line Sagging Operations: Essential for achieving the precise initial sag of conductors during the tension stringing phase of new overhead power line construction.

• Reconductoring Projects: Used for sagging new conductors when replacing old ones on existing transmission and distribution lines.

• Sag Adjustment & Maintenance: For routine inspections and adjustments of conductor sag due to aging, environmental factors, or changes in line conditions.

• Clearance Verification: Crucial for ensuring that conductors maintain safe clearances from ground, structures, and other lines, especially in areas with varying terrain.

• Tension Control: Works in conjunction with tensioning equipment to verify and adjust conductor tension accurately.

• Post-Storm / Event Assessment: For quickly assessing and correcting sag deviations caused by extreme weather conditions like heavy ice loading or high winds.

• Quality Assurance & Inspection: Used by project managers and quality control teams to verify compliance with engineering specifications for sag and tension.

• Line Engineering & Design Verification: For field validation of sag charts and tension calculations.

Technical Data Sheet:

Note: For optimal accuracy, the sag scope should be set up on a stable, level tripod. Environmental factors such as heat shimmer, extreme cold, and strong winds can affect observation clarity. Always ensure proper line de-energization or maintain safe working distances from live conductors. Regular cleaning of optics and proper storage will extend the life and maintain the performance of the sag scope. Please contact us for detailed datasheets for specific models and their exact optical specifications, features, and accessory options.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing high-performance, accurate, and safe equipment for your power line projects. Here’s why our Precision Zoom Sag Scope is your ideal choice:

1. Unmatched Sag Measurement Accuracy: Our scopes feature advanced optics and precise reticle systems, ensuring that conductor sag is measured with the highest degree of accuracy, critical for safety and optimal line performance.

2. Enhanced Efficiency & Safety: Allows for remote, non-hazardous sag measurement from the ground, eliminating risks associated with working at height and significantly speeding up the sagging process.

3. Built for Demanding Field Conditions: With rugged, weatherproof construction, our zoom sag scopes are designed to withstand harsh outdoor environments, providing reliable performance when you need it most.

4. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead transmission line and underground cable laying projects, streamlining your entire procurement process with a single, reliable source for all your specialized tools.

5. Global Trust & Proven Excellence: Our unwavering commitment to quality, innovation, and safety has earned us the trust of leading power utilities and electrical contractors worldwide, making us the preferred choice for reliable, high-performance sag measurement solutions.

Final Summary:

Our Precision Zoom Sag Scope is an indispensable, meticulously engineered optical instrument designed for the accurate and efficient measurement and adjustment of conductor sag on overhead power lines. Its advanced zoom optics, rugged construction, and precise targeting system ensure optimal tensioning, critical safety clearances, and enhanced overall line performance. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your teams with high-quality, dependable, and intelligently designed tools that are fundamental to achieving superior accuracy, efficiency, and project success for all your power infrastructure needs.

Achieve unparalleled precision in your overhead line sagging operations! Explore our Precision Zoom Sag Scopes. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific sag measurement requirements and request a comprehensive quotation for this essential, high-performance instrument!
