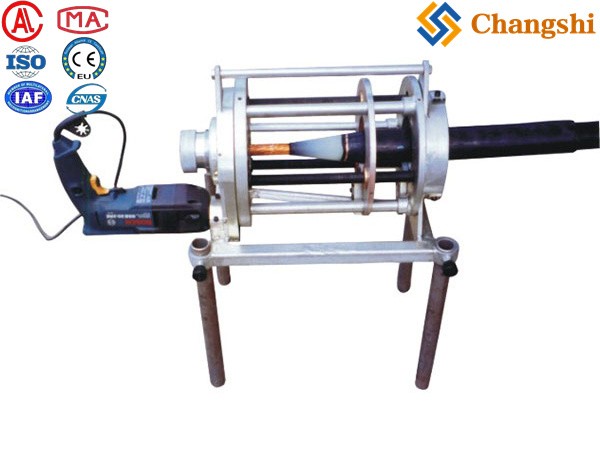

Precision Conical Insulation Sharpening Tool for MV/HV Cables

Precision Conical Insulation Sharpening Tool: Essential for Flawless MV/HV Cable Terminations

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that the integrity of medium and high voltage (MV/HV) cable terminations and joints hinges on the meticulous preparation of each cable layer. A critical step often overlooked is the precise shaping of the primary insulation layer, which, for many terminations, requires a perfectly formed conical (tapered) end. Our Precision Conical Insulation Sharpening Tool is a highly specialized and indispensable device, meticulously engineered to "sharpen insulating layer conically," ensuring "the sharpen conical surface have veracious shape" – meaning an exact, smooth, and consistent taper. This unique tool guarantees convenient, fast, and efficacious operation, providing the flawless insulation profile essential for preventing partial discharges and ensuring the long-term reliability of MV/HV connections. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, this insulation sharpening tool exemplifies our unwavering commitment to providing innovative, durable, and highly effective equipment that ensures superior safety, efficiency, and the unparalleled performance of your critical electrical infrastructure.

The correct conical shaping of the insulation layer is paramount in MV/HV cable preparation, particularly for stress cone applications or various types of push-on, heat-shrink, or cold-shrink terminations. An inaccurate taper, rough surface, or uneven profile can create electrical stress points that lead to premature cable failure. Our Precision Conical Insulation Sharpening Tool addresses this challenge by utilizing advanced blade geometry and a stable guidance mechanism to create a consistent and smooth conical surface on the cable's insulation. The tool is typically designed for easy setup on the cable, often with adjustable depths and angles to accommodate different cable types and termination requirements. By using this specialized sharpener, linemen and high-voltage technicians can achieve precise, repeatable results that adhere to stringent industry standards. This not only significantly reduces the time and manual effort involved in shaping the insulation but, more importantly, enhances the electrical performance and longevity of the cable termination, safeguarding critical power assets and ensuring the stability of the entire power grid.

Product Features & Benefits:

• Precise Conical Shaping: Specifically designed to create a perfectly smooth and accurate conical (tapered) profile on the primary insulation layer of MV/HV cables, crucial for high-quality terminations and joints.

• Ensures "Veracious Shape": Guarantees a consistent, uniform, and precise taper every time, eliminating irregular cuts and stress points that can lead to electrical breakdown.

• Damage-Free Operation: Meticulously engineered to remove insulation material without scoring, nicking, or damaging the underlying conductor or the remaining insulation, preserving cable integrity.

• Adjustable Depth & Angle (Varies by model): Many models offer adjustable blade depth and/or tapering angle to accommodate different cable insulation thicknesses and specific termination requirements.

• Convenient & Fast Operation: Designed for ease of use, allowing technicians to quickly and efficiently achieve the required conical shape, significantly speeding up cable preparation.

• Durable Blade & Construction: Features a high-quality, long-lasting blade (often carbide or hardened tool steel) and robust, lightweight construction for extended service life in demanding field conditions.

• Versatile Cable Diameter Compatibility: Adapts to a wide range of MV/HV cable diameters, making it a versatile tool for various power distribution and transmission projects.

• Enhances Electrical Performance: A precise conical shape minimizes electrical stress at the termination point, significantly reducing the risk of partial discharges and improving long-term reliability.

• Reduces Manual Effort & Improves Safety: Eliminates the need for tedious, less precise manual chamfering with knives, reducing operator fatigue and the risk of injury.

Product Applications:

Our Precision Conical Insulation Sharpening Tool is an essential, high-precision instrument for a variety of critical MV/HV cable preparation applications:

• Medium Voltage (MV) Cable Terminations: Indispensable for creating the conical insulation profile required for stress cones in heat-shrink, cold-shrink, and push-on terminations (e.g., 6kV, 10kV, 15kV, 20kV, 33kV).

• High Voltage (HV) Cable Jointing & Splicing: Crucial for preparing insulation layers for specific types of HV cable joints and splices (e.g., 66kV, 110kV).

• Substation & Power Plant Cable Preparation: For precise shaping of power cable insulation before connecting to transformers, switchgear, and other high-voltage apparatus.

• Renewable Energy Sector: Essential for preparing power cables for connections in wind farms, solar power plants, and grid-tie infrastructure.

• Cable Repair & Upgrades: For re-preparing cable insulation when performing repair joints or re-terminations on damaged or aging cables.

• Specialized cable installations: Any application where a perfectly formed conical insulation edge is mandated by cable accessory manufacturers or project specifications.

Technical Data Sheet:

Note: Always use the correct conical insulation sharpening tool model for the specific cable diameter, insulation material, and required taper length/angle as specified by the cable and termination accessory manufacturer. Improper use can severely damage cable insulation and lead to electrical failure. Regular cleaning of the tool and replacement of worn blades are crucial for maintaining precision. Please contact us for detailed datasheets for specific models and their compatibility with various MV/HV cable constructions and termination types.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing high-performance, safe, and efficient tools for your critical power line and electrical construction needs. Here’s why our Precision Conical Insulation Sharpening Tool is your ideal choice:

1. Unparalleled Conical Precision: Specifically engineered to create flawless, "veracious" conical shapes on MV/HV cable insulation, directly enhancing the electrical integrity and lifespan of your critical terminations and joints.

2. Enhanced Safety & Efficiency: Reduces the risk of critical insulation damage and operator injury, while significantly accelerating the complex process of shaping high-voltage cable ends, boosting productivity on site.

3. Durable & Reliable Performance: Crafted from robust, high-grade materials with precision blades, ensuring long-lasting durability and consistent, accurate results even under demanding field conditions.

4. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead and underground power line projects, streamlining your entire procurement process with a single, reliable source for all your specialized cable preparation needs.

5. Global Trust & Proven Excellence: Our unwavering commitment to quality, innovation, and safety has earned us the trust of leading power utilities and electrical contractors worldwide, making us the preferred choice for reliable, high-performance MV/HV cable tooling.

Final Summary:

Our Precision Conical Insulation Sharpening Tool is an indispensable, meticulously engineered instrument designed for safe, fast, and highly accurate preparation of medium and high voltage cables. It ensures the creation of perfectly tapered insulation surfaces, which is critical for the long-term integrity and reliable performance of MV/HV cable terminations and joints. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your teams with high-quality, dependable, and intelligently designed tools that are fundamental to achieving superior efficiency, safety, and project success for all your critical MV/HV cable applications.

Ensure flawless MV/HV cable terminations and maximum reliability! Explore our Precision Conical Insulation Sharpening Tools. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific cable preparation requirements and request a comprehensive quotation for this essential, high-precision tool!
