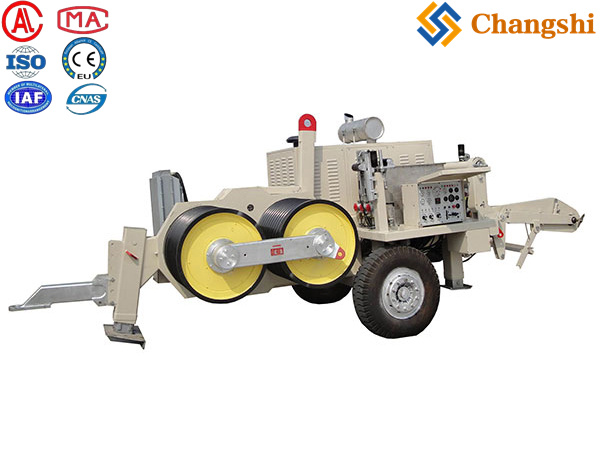

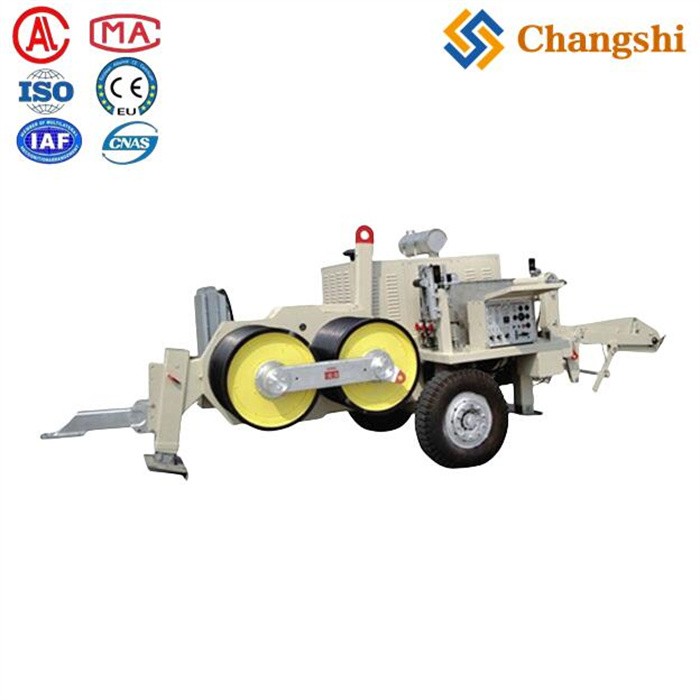

The SA-YQ300 hydraulic puller is a heavy-duty hydraulic pulling machine designed primarily for conductor stringing in high voltage power line projects. Here are its key features and specifications:
-
:
-
Maximum pulling force: 300 kN (approximately 30 tons)
-
Maximum continuous pulling force: 250 kN
-
-
:
-
Maximum pulling speed: 5 km/h
-
Speed at maximum continuous pull: 2.5 km/h
-
-
:
-
Diameter: 960 mm
-
Number of grooves: 10
-
Maximum steel rope diameter: 38 mm
-
-
:
-
Water-cooled diesel engine
-
Power: 298 kW
-
Engine speed: 2100 rpm
-
-
:
-
Size: 5.9 m (L) x 2.45 m (W) x 2.89 m (H)
-
Weight: 11,500 kg
-
-
: DC 24V
-
-
:
-
Infinitely variable speed control in both directions
-
Automatic overpull protection system
-
Spring-applied, hydraulically released brake for safety in case of hydraulic failure
-
Hydraulic oil cooling system
-
Heat-treated wear-proof bull wheels
-
Hydraulic actuated pulling rope clamp for easy reel change
-
Integral self-loading reel winder with automatic level wind for convenient rope handling
-
Designed for pulling up to 6 conductors or 1 pilot steel wire rope
-
This model complies with Tier 3/Stage III emissions regulations for its engine and is widely used in overhead transmission line stringing projects requiring high pulling force and reliable operation.
In summary, the SA-YQ300 is a robust, high-capacity hydraulic puller suitable for demanding power line stringing tasks, offering advanced safety and operational features to ensure efficient and safe conductor installation.
