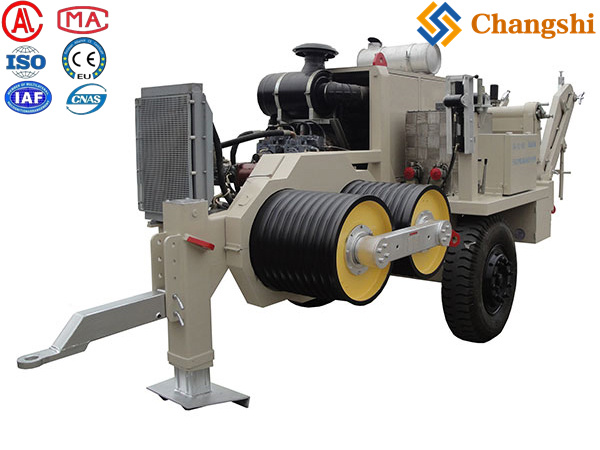

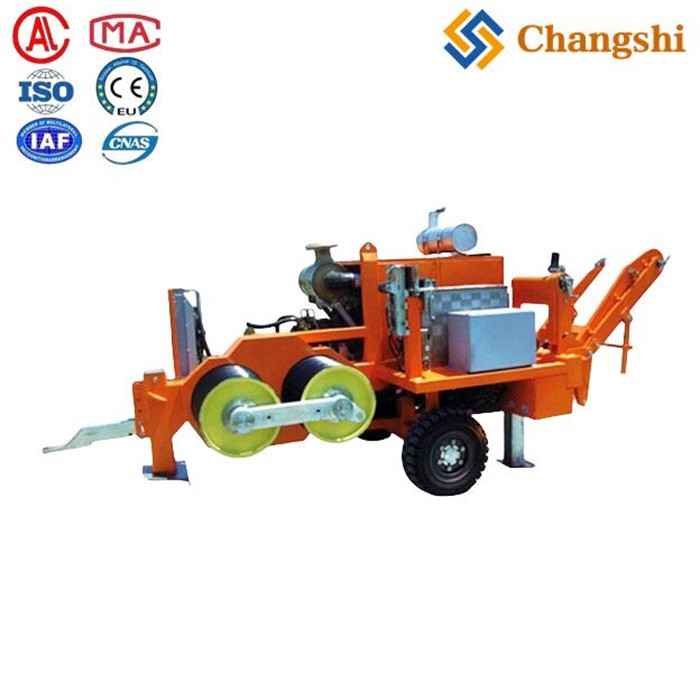

Overhead Power Lines Stringing Equipment Cable Pulling Machine Hydraulic Puller
The SA-YQ180 hydraulic puller is a heavy-duty cable pulling machine designed for overhead power line stringing, offering a maximum traction force of 180 kN and a continuous traction force of 150 kN. It is widely used for conductor stringing operations on high-voltage transmission lines.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
The SA-YQ180 hydraulic puller is a heavy-duty cable pulling machine designed for overhead power line stringing, offering a maximum traction force of 180 kN and a continuous traction force of 150 kN. It is widely used for conductor stringing operations on high-voltage transmission lines.
-
: 180 kN
-
: 150 kN
-
: 5 km/h
-
Bullwheel Diameter (bottom of groove): 630 mm
-
: 9
-
: 24 mm
-
Maximum Through Connector Diameter: 65 mm
-
: 209 kW at 2100 rpm (Cummins USA water-cooled diesel engine)
-
: 5500 × 2170 × 2570 mm
-
: Approximately 8000 kg
-
-
Overload automatic protection system: Allows presetting of maximum traction force to prevent overloading during stringing operations.
-
Stepless adjustable traction force and pulling speed: Enables precise control for different operational needs.
-
: Engages automatically in case of hydraulic failure or sudden engine shutdown, ensuring operator safety.
-
Hydraulic rope clamping device: Facilitates easy replacement of steel wire rope reels.
-
Automatic steel wire rope winding device: Simplifies loading, unloading, and arranging the rope.
-
Equipped with high-quality components such as Rexroth (Bosch) hydraulic pumps and valves, Italian RR reducer, AKG radiator, and WIKA hydraulic instruments.
-
Suitable for stringing conductors, earth wires, OPGW, and ADSS cables on overhead transmission lines, especially for high-voltage lines up to 220 kV and above.
The SA-YQ180 hydraulic puller is a robust, reliable machine designed for high-capacity conductor stringing with advanced safety and operational features. Its powerful engine, precise hydraulic control, and safety systems make it ideal for large-scale power transmission line construction projects requiring strong and steady pulling force.
