Insulated Grounding Pole with Earth End Clamp for Electrical Systems

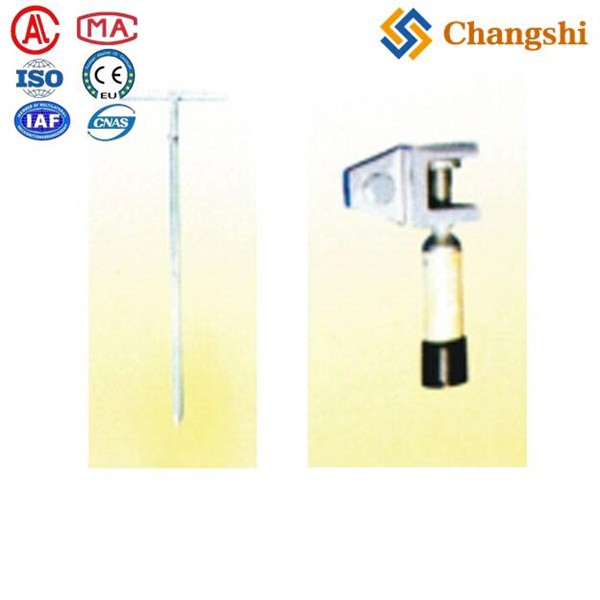

Insulated Grounding Pole with Earth End Clamp: Establishing a Safe and Secure Connection to Ground

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we place the highest emphasis on safety and precision in every aspect of power line, substation, and electrical construction work. Our Insulated Grounding Pole with Earth End Clamp is a meticulously engineered, high-voltage safety tool specifically designed to facilitate the rapid and secure connection of a temporary grounding system to a reliable earth reference point. This crucial step is fundamental to creating a safe work zone for personnel by ensuring all hazardous voltages are safely dissipated. As a prominent China manufacturer and exporter specializing in tools and equipment for power lines, substations, electrical construction, and maintenance, and offering comprehensive one-stop supply for both overhead transmission line (OHTL) equipment and underground cable laying equipment, this specialized grounding pole exemplifies our unwavering commitment to advanced safety solutions, robust construction, and reliable performance in the most demanding field conditions.

Before any work can safely commence on de-energized electrical systems, it is paramount to establish a robust path to earth. This ensures that any residual charge or accidental re-energization is safely shunted away from the work area, protecting personnel from electrocution or arc flash. Our Insulated Grounding Pole is crafted from high-strength, electrically insulated materials (such as fiberglass or epoxy resin), providing critical isolation between the operator and energized components. At its distal end, it features a specialized "grounding end clip" or clamp designed to securely attach a grounding cable to a designated earth point, such as a ground rod, substation grid, or building steel. This direct, low-resistance connection to earth is the foundation of any effective temporary grounding system. This pole is an indispensable part of any stringent lockout/tagout (LOTO) procedure, ensuring that lines are not only de-energized and tested but also firmly connected to a verifiable earth ground, thereby significantly mitigating the risks associated with electrical work.

Product Features & Benefits:

• Dedicated Earth End Connection: Specifically designed with a specialized "grounding end clip" or clamp to establish a secure, low-resistance connection to earth ground (e.g., ground rod, grid, steel structures).

• Superior Electrical Insulation: Constructed from premium fiberglass reinforced polymer (FRP) or epoxy resin, providing essential dielectric strength and critical isolation for maximum worker safety during high-voltage operations.

• Robust & High-Conductivity Clamp: Equipped with a durable, corrosion-resistant clamp (typically copper or aluminum alloy) to ensure a firm, reliable electrical connection to the earth point.

• Essential Safety Tool: Forms the vital link to safely dissipate residual charges and provide a path for fault currents, protecting personnel from accidental re-energization or induced voltages.

• Lightweight & Easy to Handle: Despite its robust construction, the pole is designed for ergonomic handling and precise positioning for efficient and safe application of grounds.

• Modular & Extendable Design (Common): Many models feature telescopic or sectional designs, allowing for adjustable lengths to suit various access heights and voltage levels.

• Durable Construction for Field Use: Built to withstand the rigors of frequent outdoor use, ensuring long-term reliability and consistent performance in diverse environmental conditions.

• Visual Indicators & Secure Locking: Often includes clear markings for proper extension and secure locking mechanisms to ensure correct assembly and safe operation.

• Compliance with Safety Standards: Manufactured to meet stringent industry safety standards for temporary grounding equipment, ensuring global applicability and trust.

Product Applications:

Our Insulated Grounding Pole with Earth End Clamp is a fundamental safety tool for a wide range of critical electrical applications:

• Establishing Earth Connections for Grounding Sets: The primary tool used to connect the "tail" or earth-end of a portable grounding and short circuit kit to a designated earth point (ground rod, substation ground grid, etc.).

• Substation Grounding: Essential for connecting various de-energized substation equipment (transformers, circuit breakers, busbars) to the main substation ground grid.

• overhead line Grounding: Used to connect overhead line grounding sets to temporary ground rods or existing earth points at the base of poles/towers.

• underground Cable Grounding: For establishing an earth connection when grounding accessible points of underground cables in vaults or manholes.

• Temporary Ground Rod Installation: Can be used to drive or secure temporary ground rods (depending on design) and then connect to them.

• Testing & Commissioning: Used to safely establish or verify earth connections during system testing and before final re-energization of installations.

• Mobile Equipment Grounding: For providing a reliable earth connection for mobile power generation units or temporary setups.

Technical Data Sheet:

Note: The specific voltage rating of the grounding pole is critically important and must always be selected to match or exceed the maximum nominal voltage of the electrical system being worked on. Adherence to all local safety regulations, lockout/tagout procedures, and comprehensive training is absolutely paramount for the safe and effective use of this essential safety equipment. Grounding cables are typically connected to this pole and then to the live-side clamps (sold separately or as part of a complete kit). Please contact us for detailed datasheets for specific voltage classes and product variants.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing paramount safety solutions and exceptionally robust equipment for the electrical industry. Here’s why our Insulated Grounding Pole with Earth End Clamp is your ideal choice:

1. Fundamental Safety for Electrical Work: Provides the crucial insulated connection point to establish a secure earth ground, protecting workers from electric shock during essential maintenance and construction.

2. Superior Insulation & Secure Connection: Manufactured from high-grade dielectric materials with a robust earth-end clamp, ensuring both operator safety and a reliable, low-resistance path to ground.

3. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead and underground power line projects, streamlining your entire procurement process with a single, reliable source for all your safety and operational needs.

4. Unwavering Quality & Proven Reliability: Every Insulated Grounding Pole undergoes stringent quality control and dielectric testing, guaranteeing consistent peak safety performance and unyielding reliability in demanding field conditions.

5. Global Trust & Compliance: Our adherence to international safety standards means our equipment is designed for universal applicability, trusted by electrical professionals worldwide for critical power system isolation and earthing.

Final Summary:

Our Insulated Grounding Pole with Earth End Clamp is an indispensable high-voltage safety tool meticulously engineered to provide a reliable and insulated means of connecting temporary grounding systems to earth. Its robust construction and precision-engineered earth clamp ensure maximum worker protection and efficient dissipation of electrical energy, making it a critical component for safe and compliant operations on power lines, substations, and all electrical infrastructure. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your teams with high-quality, dependable, and intelligently designed safety equipment.

Ensure a robust earth connection for ultimate safety! Explore our Insulated Grounding Poles with Earth End Clamps. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific grounding pole requirements and request a comprehensive quotation!
