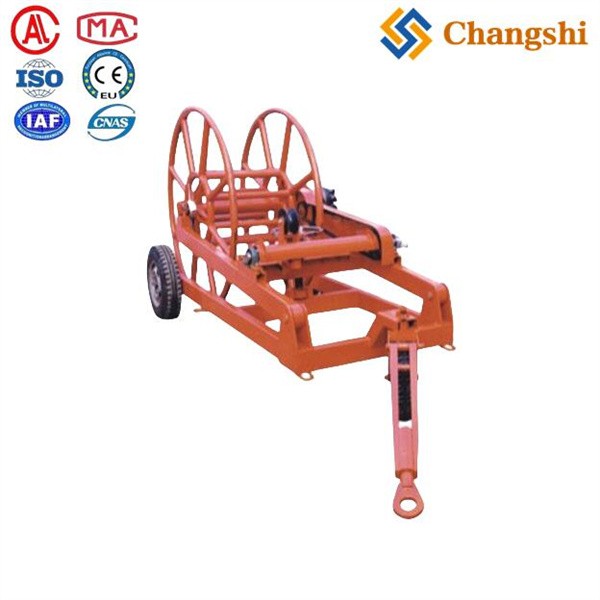

Hydraulic Motor Driven Cable Take-Up Reel with Mobile Carriage

Hydraulic Motor Driven Cable Take-Up Reel with Mobile Carriage: Precision Winding for Efficient Cable & Conductor Recovery and Storage

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that efficient and organized cable and conductor management is crucial for the success and safety of any power line or underground cabling project. Our Hydraulic Motor Driven Cable Take-Up Reel with Mobile Carriage is a meticulously engineered, integrated system designed to provide powerful, controlled, and precise winding of conductors, cables, or pulling ropes onto reels. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, this advanced take-up reel exemplifies our unwavering commitment to automation, operational control, and superior performance for optimizing your cable recovery and storage tasks.

Manually winding large lengths of conductor or cable is labor-intensive, time-consuming, and often results in uneven spooling, which can damage materials or complicate future deployment. Our Hydraulic Motor Driven Take-Up Reel addresses these challenges by employing a robust hydraulic motor to drive the reel, providing consistent and adjustable winding speed and tension. The integration with a mobile carriage means this powerful winding system is easily transportable across diverse job sites, allowing for efficient recovery of old conductors during reconductoring projects, neat storage of pilot ropes, or precise winding of newly laid cables. This system ensures that materials are spooled uniformly and securely, minimizing tangles, kinks, and waste, while significantly enhancing worker safety and overall project efficiency. It's an indispensable tool for operations requiring controlled, high-capacity winding and mobility.

Product Features & Benefits:

• Hydraulic Motor Drive: Utilizes a powerful hydraulic motor to provide consistent, reliable, and adjustable winding torque and speed, ensuring uniform and controlled spooling of cables and conductors.

• Integrated Mobile Carriage: Mounted on a robust, often wheeled or skid-mounted carriage, enabling easy transport and positioning on diverse job sites, enhancing operational flexibility.

• Precise Winding Control: Offers fine control over winding speed and tension, preventing over-stressing of the conductor/cable and ensuring neat, layer-by-layer spooling, which protects the material and simplifies future deployment.

• High Winding Capacity: Designed to handle various sizes and weights of conductor/cable reels, accommodating large capacities for heavy-duty applications.

• Versatile Application: Ideal for retrieving old conductors, winding up pulling ropes, or neatly spooling new cables, making it a multi-purpose asset for both installation and recovery phases.

• Robust & Durable Construction: Manufactured from heavy-duty structural steel, ensuring exceptional longevity, resistance to wear and tear, and reliable performance in demanding outdoor conditions.

• Enhanced Safety: Reduces manual handling of heavy reels and allows for safer, more controlled winding operations, minimizing the risk of accidents and injuries.

• User-Friendly Operation: Equipped with intuitive controls for speed and direction, simplifying operation for field personnel.

• Corrosion Resistance: Components are typically finished with industrial-grade paint or galvanization, providing excellent protection against rust and environmental elements.

Product Applications:

Our Hydraulic Motor Driven Cable Take-Up Reel with Mobile Carriage is an essential piece of equipment for a wide range of cable and conductor management operations:

• Conductor Recovery/Reconductoring: Primary use for efficiently and safely withdrawing old conductors from overhead lines and neatly winding them onto reels for recycling or disposal.

• Pulling Rope / Pilot Wire Recovery: Ideal for retrieving long lengths of pulling ropes or pilot wires used in stringing operations, ensuring they are stored correctly for reuse.

• underground cable Recovery: Used for winding up decommissioned underground cables from trenches or ducts.

• New Cable Spooling: Can be used to neatly spool new cables onto drums at a controlled tension before deployment.

• Post-Installation Cable Management: For situations where excess cable or temporary lines need to be neatly wound and stored.

• Any Application Requiring Controlled Motorized Spooling: Versatile for any task involving the precise, powered winding of long lengths of wire, rope, or cable.

Technical Data Sheet:

Note: Specific technical specifications, including exact winding force, speed, reel capacity, and dimensions, will vary depending on the model and intended application. It is crucial to select a take-up reel with sufficient power and capacity for your specific conductor types and project requirements. Adherence to safety protocols during operation, especially when dealing with tensioned conductors, is paramount. Please contact us for detailed datasheets for specific product variants and custom requirements.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to automated, reliable, and comprehensive solutions for your cable and conductor management needs. Here’s why we are your ideal choice:

1. Powerful & Precise Winding: Our hydraulic motor driven system ensures consistently smooth, controlled, and damage-free spooling, optimizing material integrity and future usability.

2. Enhanced Mobility with Integrated Carriage: The mobile carriage design provides exceptional flexibility, allowing efficient deployment and recovery operations across diverse and challenging job sites.

3. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead and underground power line projects, streamlining your entire procurement process with a single, reliable source.

4. Uncompromising Quality & Enduring Reliability: Every Hydraulic Motor Driven Take-Up Reel undergoes the most stringent quality control and performance testing, ensuring it delivers robust reliability and consistent peak performance even in the most demanding field conditions.

5. Revolutionary Efficiency & Safety: By automating the winding process and ensuring precise control, our take-up reels significantly reduce manual labor, minimize material waste, and enhance site safety, leading to faster project completion and reduced operational costs.

Final Summary:

Our Hydraulic Motor Driven Cable Take-Up Reel with Mobile Carriage is an indispensable, high-performance system engineered for the powerful, controlled, and precise winding of conductors, cables, or pulling ropes onto reels. Its integrated hydraulic motor and mobile carriage provide exceptional operational flexibility and efficiency for recovery, storage, and material management tasks in both overhead transmission line and underground cable laying projects. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your operations with high-quality, dependable, and intelligently designed solutions for your most demanding cable handling needs.

Automate your cable recovery with power and precision! Explore our Hydraulic Motor Driven Cable Take-Up Reels with Mobile Carriages. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific conductor winding and recovery equipment needs and request a comprehensive quotation!
