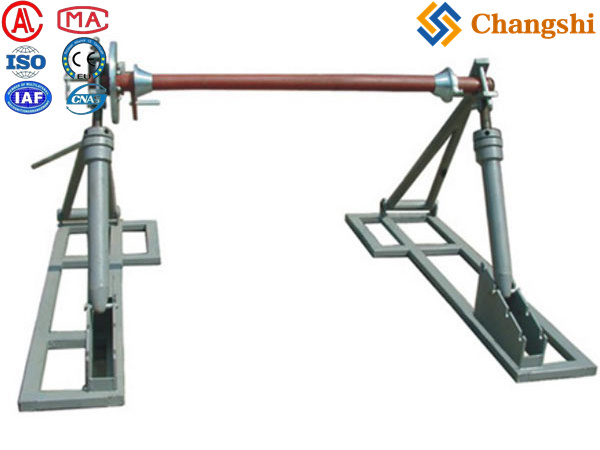

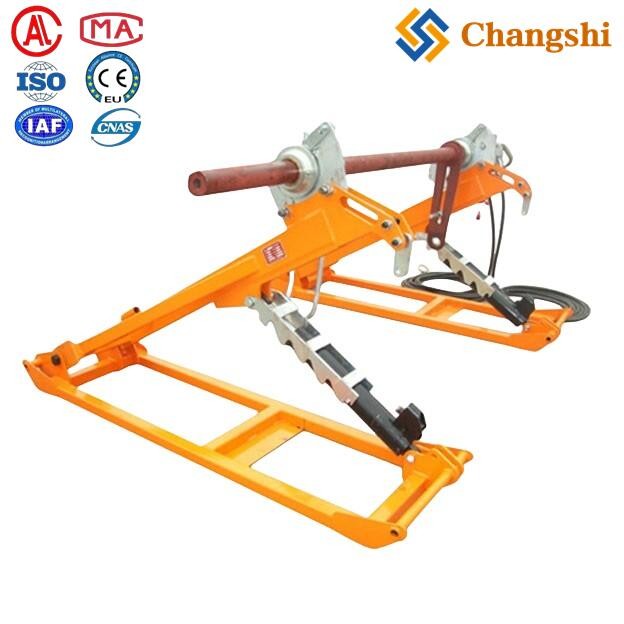

Hydraulic Conductor Reel Stand For Conductor Cable Stringing Underground Cabling
Hydraulic Conductor Reel Stands are specialized equipment used to hold, lift, and control reels of conductor cables or wires during stringing or underground cabling operations. They are designed to support steel or wooden reels and provide braking and torque control to ensure safe and efficient payout or rewinding of cables.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
are specialized equipment used to hold, lift, and control reels of conductor cables or wires during stringing or underground cabling operations. They are designed to support steel or wooden reels and provide braking and torque control to ensure safe and efficient payout or rewinding of cables.
-
: These stands often include hydraulic motors or jacks to lift reels and control unwinding or rewinding of cables, improving ease of operation and safety.
-
: Equipped with mechanical or hydraulic disc brakes to control torque and counter-pull forces, preventing uncontrolled reel rotation and ensuring smooth cable payout.
-
: Available in various load capacities, typically ranging from 4 to 18 tons or more, to accommodate different reel sizes and weights.
-
: Made of high-grade steel with foldable or detachable structures for transport convenience and durability in field conditions.
-
: Suitable for conductor wooden drums or steel reels, often used in aerial stringing and underground cabling operations.
-
: Some models include safety latches, mechanical locking systems, hydraulic braking options, and quick coupling connections for integration with hydraulic puller-tensioners.
-
| Model/Type | Capacity | Reel Diameter (mm) | Braking System | Weight (kg) | Special Features |
|---|---|---|---|---|---|
| Amin Power Energy F155.070 | ~800 kg weight | Steel or wooden | Hydraulic motor drive | 800 | Hydraulic drive option, supplied in pairs |
| Temai Italy 040 Series | 4 to 18 tons | 800 - 3800 | Mechanical or hydraulic | 230 - 1400 | Foldable steel structure, disc brakes |
| Wagner-Smith Powered Reel Stand | Not specified | Not specified | Hydraulic caliper brake | Not specified | Hydraulic rewind capability |
| Condux Tesmec RS26/RS30 | Not specified | Not specified | Hydraulic negative brake | Not specified | Designed for puller-tensioners, easy loading |
| ONEREEL SZYF-50/SZYF-70 | 50 kN / 70 kN | ≤2.25m / ≤2.5m | Hydraulic braking | 320 / 380 | Detachable parts, stable base |
| Marshine SIYZ10/SIYZ15 | 10 to 15 tons | 2000-3000 | Mechanical disk brake | 597 / 789 | Connects to hydraulic tensioners, large capacity |
These stands are essential for safely managing heavy conductor reels during installation, preventing damage to cables and ensuring operator safety through controlled tension and braking.
If you require a specific model or capacity, manufacturers often provide customization options and technical support to meet project needs.
