Hydraulic Compressor For Compressing Terminals Connectors Copper Aluminum Wires

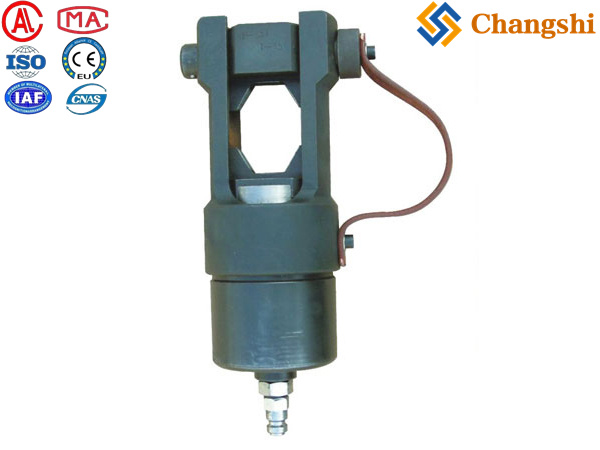

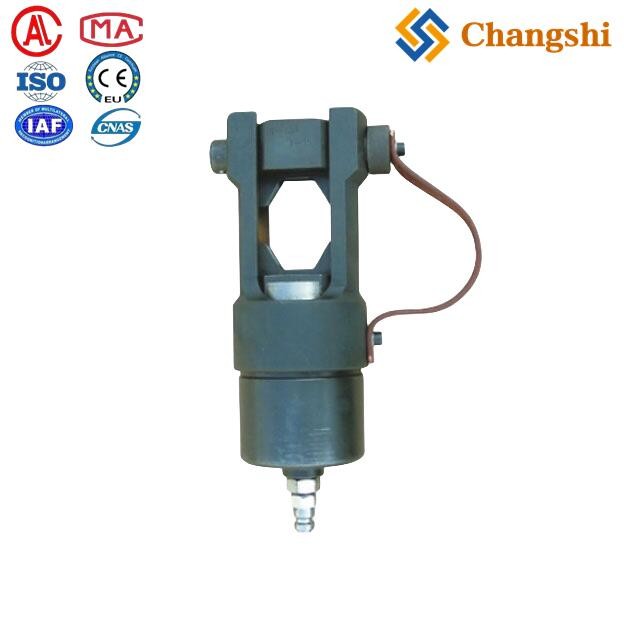

The Model QY-25A hydraulic compressor is a hydraulic crimping tool primarily used for compressing terminals and connectors in electrical conductor work, such as joining copper and aluminum wires. It is designed with a universal structure for convenient operation and can be fitted with either a manual or single-tube electric pump.

Key Specifications:

• Model: QY-25A

• Function: Hydraulic crimping/compression of conductor terminals

• Maximum Compression Force: Approximately 250 kN (varies slightly by source)

• Maximum Oil Pressure: Around 70 MPa

• Stroke: Typically about 5.5 mm

• Weight: Approximately 15 kg (varies by configuration)

• Suitable for: Copper terminals and aluminum wire connectors, commonly used in overhead transmission line construction and electrical maintenance

• Pump Compatibility: Can be used with manual or electric hydraulic pumps for flexibility in field operations

•

Features:

• Universal structure for ease of use

• Portable and lightweight design for fieldwork

• High pressure hydraulic system ensures strong, reliable crimps

• Compatible with a range of dies (sold separately) to accommodate different terminal sizes

This model is widely used in power transmission and distribution industries for reliable and efficient conductor compression and terminal joining.

The QY-25A is a standard hydraulic compression tool designed for medium-duty conductor crimping tasks.
