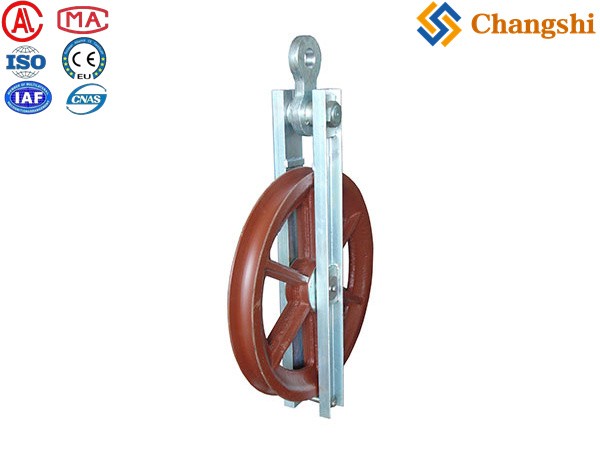

High-Speed Conductor Turning Block for OHTL Tension Stringing

High-Speed Conductor Turning Block: Precision Directional Control for Efficient Overhead transmission line (OHTL) Tension Stringing

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that maintaining precise control and efficiency during tension stringing is paramount, especially when conductors need to change direction at high speeds or under significant tension. Our High-Speed Conductor Turning Block is a meticulously engineered, specialized tool designed for the smooth, controlled, and damage-free turning of wire cables and conductors during dynamic overhead transmission line (OHTL) tensioning and erection operations. As a prominent China manufacturer and exporter, we offer a comprehensive one-stop supply for a wide array of tools and equipment for power lines, and this turning block exemplifies our unwavering commitment to operational precision, durable design, and reliable performance for enhancing productivity and safety on your OHTL sites.

During tension stringing, conductors are pulled under high force, and any abrupt change in direction can introduce excessive friction, stress, or even damage to the conductor. The High-Speed Turning Block is specifically designed to manage these directional changes efficiently. Its robust construction and advanced bearing system allow the conductor to glide smoothly around angles, minimizing wear on both the conductor and the block. The "high-speed" capability ensures that the block can keep pace with modern tension stringing equipment, preventing snags or slowdowns that could compromise the entire operation. This block is critical for navigating complex line routes and maintaining consistent tension.

Product Features & Benefits:

• Optimized for High-Speed Operation: Engineered with advanced, low-friction sealed precision bearings that enable the sheave to rotate smoothly and rapidly, keeping pace with modern Tensioners and pullers during high-speed stringing.

• Precision Directional Control: Specifically designed to facilitate smooth and controlled changes in conductor direction (turning angles), minimizing lateral forces and preventing kinking, abrasion, or damage to the wire cable.

• Robust & Durable Construction: Manufactured from high-strength galvanized steel or robust aluminum alloys, built to withstand the continuous demands of high tension and dynamic operation in harsh outdoor environments, ensuring long-term reliability.

• Superior Conductor Protection: Features a meticulously engineered groove, often lined with durable, non-abrasive materials like UMC (polyurethane) or resilient rubber, providing a gentle contact surface to safeguard the conductor's integrity.

• High Load Capacity: Designed to withstand the significant tension loads typically encountered during conductor erection and turning operations, ensuring reliable performance under pressure.

• Stable Mounting: Features robust attachment mechanisms (e.g., strong Swivel shackle, secure clevis, or dedicated mounting plates) for stable and secure connection to tower structures, anchors, or other support points at turning locations.

• Corrosion Resistance: All exposed components are typically hot-dip galvanized or treated with durable coatings, providing excellent protection against rust and environmental degradation, ensuring longevity.

Product Applications:

Our High-Speed Conductor Turning Block is indispensable for a variety of critical overhead transmission line projects where precise directional changes are required:

• Angle Pole Stringing: Essential for guiding conductors smoothly around angle towers and poles, maintaining proper tension and preventing damage.

• Line Deviations & Obstacle Navigation: Crucial for routing conductors around natural or artificial obstacles efficiently and safely.

• Complex Route Stringing: Ideal for power line projects that involve numerous directional changes, ensuring continuous and controlled progress.

• River & Valley Crossings with Angles: Facilitates the smooth turning of conductors at transition points during long span crossings.

• Re-conductoring Projects: Used for replacing or upgrading conductors on existing lines that have established angles, ensuring new wires are installed without damage.

• Any Project Utilizing High-Speed Tension Stringing: A core component for operations aiming for maximum efficiency in conductor deployment.

Technical Data Sheet:

Note: Specific technical specifications, including exact sheave diameter, load capacity, and precise recommended operating speeds, will vary depending on the model. Please contact us for detailed datasheets for specific product variants.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to precision, efficiency, and comprehensive solutions for challenging stringing operations. Here’s why we are your ideal choice:

1. Specialized Turning Expertise: We possess in-depth knowledge of the dynamics involved in turning conductors under tension, ensuring our blocks are engineered for optimal performance in these critical scenarios.

2. Comprehensive One-Stop Solutions: As a prominent manufacturer and exporter, we offer a vast array of equipment for both overhead and underground power line projects, providing a truly integrated supply chain that simplifies your procurement.

3. Unwavering Quality & Precision: Every High-Speed Conductor Turning Block undergoes rigorous quality control and testing, ensuring it is robust, reliable, and performs flawlessly even under continuous high-speed and high-tension conditions.

4. Global Export & Dedicated Support: Our efficient worldwide export capabilities and committed customer service team ensure prompt delivery and expert technical assistance, wherever your complex project is located.

5. Engineering for Modern Stringing: We provide cutting-edge tools that empower your teams to execute even the most challenging high-speed tension stringing operations with greater confidence, precision, and safety.

Final Summary:

Our High-Speed Conductor Turning Block is an indispensable, purpose-built tool designed for the efficient, safe, and controlled redirection of wire cables and conductors during high-speed tension stringing on overhead transmission lines. Its robust construction and precision engineering ensure smooth operation and conductor integrity at critical turning points. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your projects with high-quality, reliable, and speed-enhancing equipment that optimizes your stringing operations.

Master directional changes in high-speed stringing! Explore our High-Speed Conductor Turning Blocks. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific turning block needs and request a comprehensive quotation!
