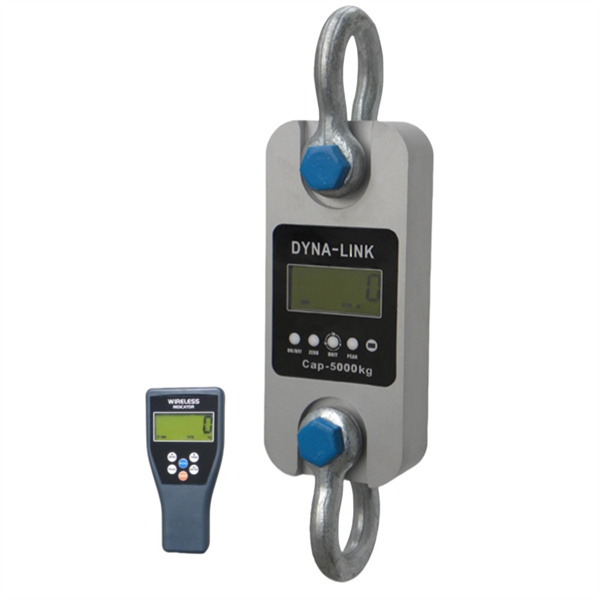

High-Precision Digital Dynamometer for Overhead Line Tension Stringing

High-Precision Digital Dynamometer for overhead line Tension Stringing: Ensuring Accuracy and Safety in Conductor Installation

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that the safe and efficient installation of overhead transmission lines (OHTL) hinges on precise control and accurate measurement of conductor tension. Our High-Precision Digital Dynamometer for overhead line Tension Stringing is a state-of-the-art instrument meticulously engineered to provide real-time, highly accurate force measurements during critical conductor pulling and sagging operations. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply for OHTL wire cable conductor tension stringing equipment and underground cable laying equipment, this digital dynamometer exemplifies our unwavering commitment to advanced technology, unparalleled accuracy, and superior operational safety for your most demanding power line projects.

Achieving the correct sag and tension is paramount for the long-term integrity, safety, and performance of overhead power lines. Inaccurate tensioning can lead to overloaded structures, conductor damage, or unsafe clearances. Our Digital Dynamometer provides an immediate, clear digital readout of the pulling or stringing force, allowing operators to make precise adjustments and adhere strictly to engineering specifications. Featuring robust construction, often with a large, easy-to-read display and durable load cell technology, it is built to withstand the rigorous conditions of field use. Its digital interface typically offers peak hold, tare functions, and units conversion, providing enhanced functionality compared to traditional mechanical dynamometers. This tool is indispensable for ensuring compliance with design specifications, preventing over-tensioning, and guaranteeing the safe and reliable installation of conductors, ground wires, and optical ground wire (OPGW) systems.

Product Features & Benefits:

• High Accuracy Digital Readout: Provides precise, real-time force measurements with a clear digital display, ensuring exact adherence to tension specifications for conductors and ground wires.

• Robust Load Cell Technology: Utilizes high-quality, durable load cells for reliable and consistent performance, designed to withstand heavy pulling forces and harsh environmental conditions.

• Durable & Weather-Resistant Construction: Housed in a rugged casing, often with an IP rating for dust and water resistance, making it suitable for demanding outdoor use in various climates.

• Versatile Measurement Units: Capable of displaying readings in multiple units (e.g., kN, kg, tons, lbs), offering flexibility for international standards and project requirements.

• Essential Safety Tool: Crucial for preventing over-tensioning of conductors, which can damage the wire, stress towers, and create unsafe conditions during stringing operations.

• Peak Hold & Tare Functions: Allows operators to capture maximum tension readings and zero out the display for convenience during repetitive measurements.

• Long Battery Life & Power Options: Typically features long-lasting rechargeable batteries and often includes a low battery indicator, ensuring continuous operation on site.

• Easy to Integrate: Designed with strong, secure shackles or hooks for direct insertion into the pulling line, compatible with various tension stringing setups.

• Enhanced Data Logging (Optional): Some advanced models may offer data logging capabilities for post-project analysis and reporting.

Product Applications:

Our High-Precision Digital Dynamometer for Overhead Line Tension Stringing is an indispensable instrument for a wide range of applications requiring accurate force measurement:

• Overhead Conductor Tension Stringing: Essential for precisely measuring and controlling the pulling tension during the installation of all types of overhead power conductors (ACSR, AAAC, etc.).

• Optical Ground Wire (OPGW) Installation: Critical for tensioning sensitive OPGW to specified values to protect integrated fiber optic strands.

• Overhead Earthwire / Ground wire stringing: Used to accurately tension overhead earthwires for lightning protection and grounding.

• Sagging Operations: Provides real-time feedback to achieve precise conductor sag profiles after initial stringing.

• Cable Pulling & Hauling (General): Applicable for measuring pulling forces in various other cable laying scenarios, including underground conduit pulling or retrieving old cables.

• Equipment Calibration & Testing: Can be used for testing the pulling capacity of winches or other stringing equipment.

• Load Testing & Certification: For verifying loads in various rigging, lifting, and tensioning applications within the power industry.

Technical Data Sheet:

Note: Specific technical specifications, including exact measurement range, accuracy, battery life, and physical dimensions, will vary significantly depending on the model and maximum load capacity. It is critical to select a dynamometer with a range appropriate for your specific conductors and stringing operations. Regular calibration and adherence to safe operating procedures are paramount for accurate and safe use. Please contact us for detailed datasheets for specific product variants and custom requirements.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing precise, reliable, and comprehensive solutions for your critical power line projects. Here’s why we are your ideal choice:

1. Unmatched Accuracy & Precision: Our digital dynamometers deliver highly accurate, real-time tension readings, ensuring your stringing operations meet exact engineering specifications and comply with safety standards.

2. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead and underground power line projects, streamlining your entire procurement process with a single, reliable source.

3. Uncompromising Quality & Enduring Reliability: Every Digital Dynamometer undergoes rigorous calibration and performance testing, ensuring it delivers consistent peak performance and unyielding reliability in the most severe field conditions.

4. Global Export & Dedicated Support: Our efficient worldwide export capabilities and committed customer service team ensure prompt delivery and expert technical assistance, wherever your project is located, including here in Taiwan.

5. Enhanced Safety & Operational Efficiency: By providing precise tension control, our dynamometers significantly reduce the risk of conductor damage and structural stress, improving site safety and accelerating project completion.

Final Summary:

Our High-Precision Digital Dynamometer for Overhead Line Tension Stringing is an indispensable instrument engineered to provide highly accurate, real-time force measurements for critical conductor pulling, sagging, and earthwire installation. Its robust design and advanced digital features ensure precise tension control, significantly enhancing safety, material integrity, and operational efficiency in complex power line construction. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your operations with high-quality, dependable, and intelligently designed precision measurement tools.

Ensure ultimate precision and safety in your line stringing! Explore our High-Precision Digital Dynamometers for Line Tension. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific tension measurement needs and request a comprehensive quotation!
