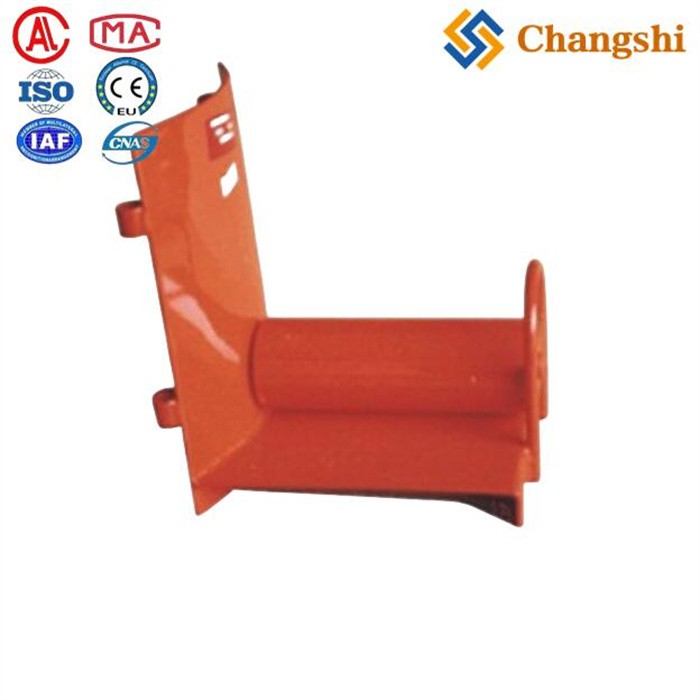

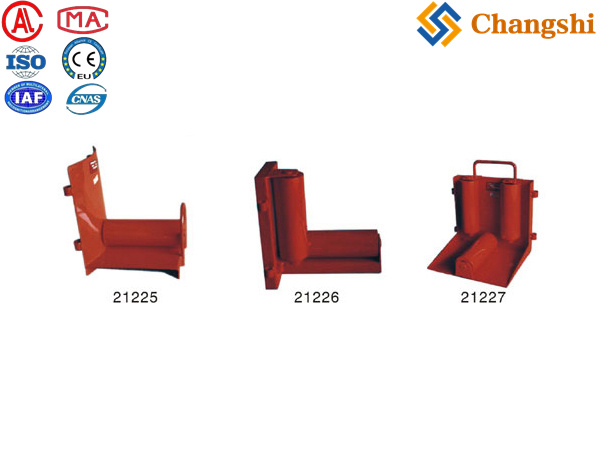

Heavy-Duty Corner Ground Roller Assembly Steel Roller for Smooth Pulling
Discover the ultimate solution for cable pulling around bends. Our corner ground roller assembly steel roller ensures a frictionless pull every time!
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
The Heavy-Duty Corner Ground Roller Assembly Steel Roller for Smooth Pulling is a robust cable-pulling accessory designed to facilitate smooth, low-friction cable handling around corners or bends during cable laying and transmission line installation. Here is a detailed overview based on the search results:
-
: Typically made from heavy-duty galvanized or zinc-plated steel frames for durability and corrosion resistance in outdoor and harsh environments.
-
: Equipped with large-diameter, waisted steel rollers (commonly around 110 mm diameter) or solid steel rollers fitted with sealed ball bearings or maintenance-free bushes to ensure smooth rotation and reduce friction during cable pulling.
-
: Often a tri-roller (three rollers arranged in a triangular formation) configuration to guide cables smoothly around corners and reduce cable wear.
-
: Designed to handle heavy loads, with typical rated capacities around 400 kg to 1 ton (1000 kg), suitable for heavy cables and conductors.
-
: Some models can be linked together using hinge or pipe connectors to form continuous bends or longer cable guiding systems for complex cable routes.
-
: Galvanized steel construction and sealed bearings make these rollers resistant to mud, dirt, water, and other environmental factors, ensuring long-term, maintenance-free use.
-
Used extensively in cable laying applications, especially where cables must be pulled around sharp corners or bends in trenches or on transmission towers.
-
Ideal for guiding heavy cables such as ACSR (Aluminum Conductor Steel Reinforced) conductors safely and efficiently during installation and maintenance.
-
Helps prevent cable damage by minimizing friction and abrasion against the ground or other surfaces.
-
| Feature | Typical Specification |
|---|---|
| Roller Diameter | 89 mm to 110 mm steel rollers |
| Frame Material | Galvanized or zinc-plated steel |
| Bearing Type | Sealed ball bearings or oil-impregnated bushes |
| Load Capacity | 400 kg to 1 ton (1000 kg) |
| Configuration | Tri-roller corner assembly |
| Weight | Approx. 4 kg to 26 kg depending on model |
| Dimensions (example) | Base footprint ~410 x 320 mm; Height ~295 mm |
Heavy-Duty Corner Ground Roller Assemblies with steel rollers provide a durable, efficient solution for pulling cables smoothly around corners in cable laying and transmission line projects. Their robust galvanized steel frames, sealed bearings, and large steel rollers reduce friction and cable wear, supporting heavy loads up to around 1 ton. These rollers are often modular and weather-resistant, making them suitable for challenging outdoor environments and ensuring long-term, maintenance-free operation.
