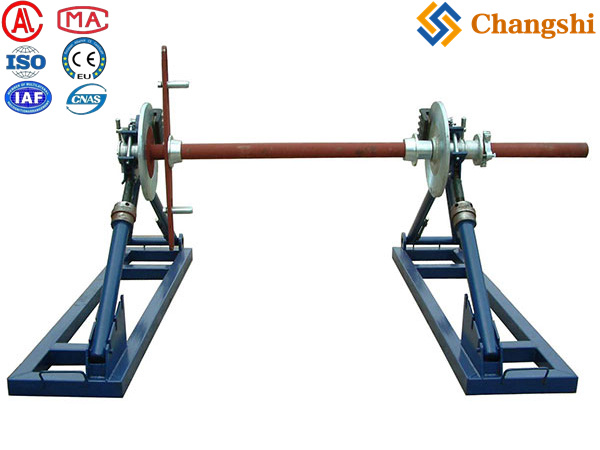

Heavy-duty conductor reel stands are essential equipment for safe and efficient cable management in power transmission, utility, and industrial cable installation projects. These stands are designed to securely hold large and heavy reels of conductor or cable, allowing controlled payout and tensioning during stringing or pulling operations.
-
: Heavy-duty stands typically support reels weighing from 3,000 kg (3 tons) up to 7,000 kg (7 tons) or more, accommodating large conductor drums used in overhead power lines.
-
: Many stands incorporate disc tension brakes or hydraulic braking systems that provide adjustable torque control to prevent uncontrolled reel rotation and cable damage during payout.
-

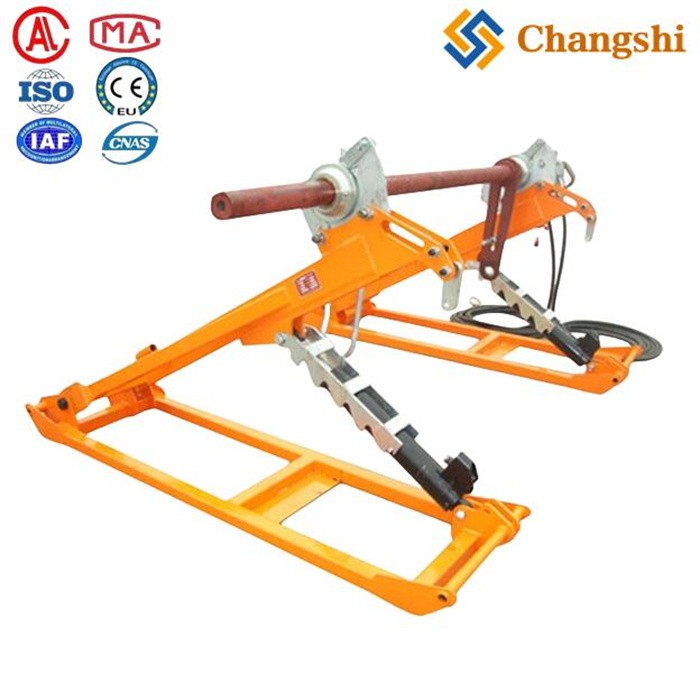

: Some models feature hydraulic jacks or motors to facilitate effortless reel lifting and controlled rotation, improving safety and reducing manual labor.
-
: Built with heavy-duty steel frames, these stands offer durability, stability, and often foldable or detachable parts for easier transport and storage.
-
: Designed to handle a wide range of reel diameters (typically from around 900 mm up to 2800 mm) and widths (up to 1700 mm), making them versatile for different cable types and sizes.
-
: Includes locking collars, safety latches, and secure axle mounting to prevent reel slippage and ensure operator safety during cable payout.
-
: Many stands can be connected to hydraulic pullers or tensioners via quick couplings to integrate tension control during conductor stringing.
-
| Model | Max Reel Diameter (mm) | Max Reel Width (mm) | Max Load (kg) | Brake Torque (N·m) | Weight (kg) | Features |
|---|---|---|---|---|---|---|
| SIPZ-7 | 1800 - 2500 | ≤1700 | 7000 | 2000 | 480 | Hydraulic or mechanical disc brakes, hydraulic motor control, heavy-duty steel frame |
| DW2240A | Variable | Variable | Heavy-duty | Mechanical brake | Moderate | Connects with hydraulic tensioners, steel cable reel stand for conductor or wire reels |
| SP-CRS108 | 2440 (96") | 1829 (72") | 11,340 (25,000 lbs) | Hydraulic drive | Heavy-duty | Powered cable reel stand with diesel/hydraulic drive, tension control, slip ring assembly |
-
Overhead power transmission line stringing, where controlled conductor payout and tensioning are critical.
-
Underground cable installation requiring heavy reel handling and precise payout control.
-
Industrial cable handling and storage operations demanding durable, high-capacity reel stands.
Heavy-duty conductor reel stands combine strong steel construction, hydraulic or mechanical braking, and lifting capabilities to provide safe, efficient, and controlled cable payout during installation. Their high load capacity and adjustable features make them versatile for various reel sizes and cable types, while integration with hydraulic tensioners enhances payout control. Models range from manually operated stands to fully powered reel stands with variable speed drives and tension control systems, supporting demanding industrial and utility applications.
