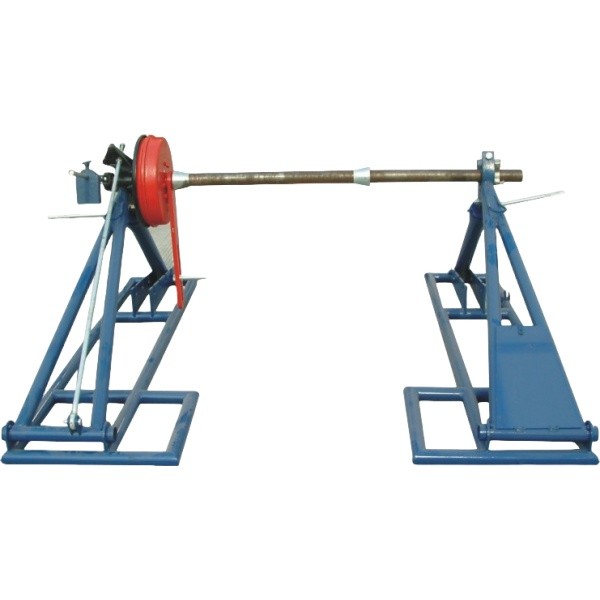

Heavy-Duty Conductor Reel Payout Stand with Drum Brake

Heavy-Duty Conductor Reel Payout Stand with Drum Brake: Reliable & Controlled Payout for Power Line and underground Cables

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we are committed to equipping electrical construction and maintenance professionals with robust and reliable tools that enhance control and efficiency. Our Heavy-Duty Conductor Reel Payout Stand with Drum Brake is a meticulously engineered support system designed to safely and securely hold various sizes of conductor and cable reels, while providing essential, adjustable back-tension during the critical payout phase. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, this reel payout stand with its robust drum brake exemplifies our unwavering commitment to stability, precise control, and dependable performance for optimizing your cable deployment tasks.

Controlled conductor payout is fundamental to preventing costly damage to cables, ensuring correct tensioning, and maintaining overall project safety. Unlike disc brake systems, a drum brake on a reel stand often offers a compact, enclosed, and highly effective braking mechanism, providing smooth and consistent resistance as the conductor unwinds. This adjustable back-tension is vital for preventing the reel from overrunning, maintaining a desired level of tension in the conductor, and facilitating a more controlled and orderly stringing process. Whether you are performing OHTLstringingequipment.com/Conductor-Stringing-Equipment.html target='_blank'>conductor stringing for new overhead power lines or laying heavy cables for underground distribution networks, our reel payout stand with its reliable drum brake ensures a steady and predictable payout, contributing significantly to the efficiency and success of your electrical construction projects. Its heavy-duty construction means it can withstand the rigors of demanding job site environments, offering long-term reliability.

Product Features & Benefits:

• Reliable Drum Brake System: Features a robust, integrated drum brake mechanism that provides smooth, consistent, and adjustable back-tension, preventing reel overruns and ensuring controlled conductor payout.

• Heavy-Duty Reel Support: Designed with a sturdy frame and robust spindle to safely accommodate a wide range of conductor and cable reel sizes and weights, providing stable support throughout the payout process.

• Stable & Durable Construction: Manufactured from high-strength structural steel, ensuring exceptional longevity, resistance to deformation, and reliable performance in demanding outdoor and field conditions.

• Controlled Conductor Unwinding: The braking system ensures a steady and continuous release of wire or conductor from the reel, minimizing jerking and reducing stress on the conductor, crucial for preventing damage.

• Adjustable Tension: The drum brake allows for easy adjustment of payout tension, enabling operators to fine-tune resistance according to specific conductor types, weights, and project requirements.

• Easy Reel Loading: Designed for efficient and straightforward loading and unloading of conductor reels, minimizing downtime and streamlining operations.

• Versatile Application: Suitable for use with a broad spectrum of overhead conductors (e.g., ACSR, AAAC) and various types of underground power and communication cables.

• Weather & Corrosion Resistant: Components are typically finished with industrial-grade paint or galvanization, providing excellent protection against rust and environmental elements.

Product Applications:

Our Heavy-Duty Conductor Reel Payout Stand with Drum Brake is an essential piece of equipment for various cable and conductor deployment operations:

• Overhead transmission line (OHTL) Stringing: Primarily used to support conductor reels and apply controlled back-tension during the tension stringing or sag operations of overhead power lines.

• Underground cable laying: Crucial for managing the payout of power and communication cables from large drums into trenches, conduits, or during direct burial.

• Pilot Wire & Pulling Rope Management: Can be used for controlled unwinding of pilot wires or pulling ropes during stringing operations.

• Distribution Line Installation: Ideal for smaller to medium-sized distribution line projects requiring controlled cable payout.

• Re-conductoring Projects: Provides stable support and tension control when paying out new conductors during upgrade or replacement projects.

• Any Controlled Wire/Cable Payout: Applicable wherever controlled unwinding of large wire, cable, or conductor reels with maintained back-tension is required on a job site.

Technical Data Sheet:

Note: The stated load capacity is typically per pair of stands. Specific technical specifications, including exact reel capacity, braking tension, and dimensions, will vary depending on the model and intended application. Always select a reel stand with a drum brake that meets or exceeds the requirements of your conductor reels and desired payout tension. Adherence to safety protocols during setup and operation is paramount. Please contact us for detailed datasheets for specific product variants.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to robust equipment, precise control, and comprehensive solutions for your power line projects. Here’s why we are your ideal choice:

1. Reliable & Smooth Tension Control: Our drum brake system offers consistent, adjustable back-tension for controlled and damage-free conductor or cable payout, crucial for quality installations.

2. Comprehensive One-Stop Solutions: As a prominent manufacturer and exporter, we offer a vast array of equipment for both overhead and underground power line projects, providing a truly integrated supply chain that simplifies your procurement.

3. Unwavering Quality & Proven Durability: Every Reel Payout Stand undergoes rigorous quality control and load testing, ensuring it is robust, reliable, and performs consistently in the most demanding field conditions.

4. Global Export & Dedicated Support: Our efficient worldwide export capabilities and committed customer service team ensure prompt delivery and expert technical assistance, wherever your project is located, including here in Taiwan.

5. Enhanced Efficiency & Conductor Protection: By enabling controlled payout and safeguarding valuable conductors, our stands contribute to faster project completion and improved long-term reliability of your electrical infrastructure.

Final Summary:

Our Heavy-Duty Conductor Reel Payout Stand with Drum Brake is an indispensable, high-performance unit engineered to provide stable support and precise, adjustable back-tension during the critical payout of conductors and cables. Its robust drum brake system ensures smooth, controlled wire release, protecting conductors and enhancing overall operational efficiency for both overhead transmission line stringing and underground cable laying projects. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your operations with high-quality, dependable, and intelligently designed cable deployment equipment.

Ensure controlled, damage-free cable payout! Explore our Heavy-Duty Conductor Reel Payout Stands with Drum Brakes. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific cable tensioning needs and request a comprehensive quotation!
