Electrical Telecommunications Construction Upright Payout Turntable For Cable Pulling And Payout Operations
An upright payout turntable generally refers to a mechanical device used to hold and dispense cable or wire reels in an upright position, allowing the cable to be paid out smoothly during installation or handling. These are commonly used in electrical, telecommunications, and construction industries for cable pulling and payout operations.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
An upright payout turntable generally refers to a mechanical device used to hold and dispense cable or wire reels in an upright position, allowing the cable to be paid out smoothly during installation or handling. These are commonly used in electrical, telecommunications, and construction industries for cable pulling and payout operations.

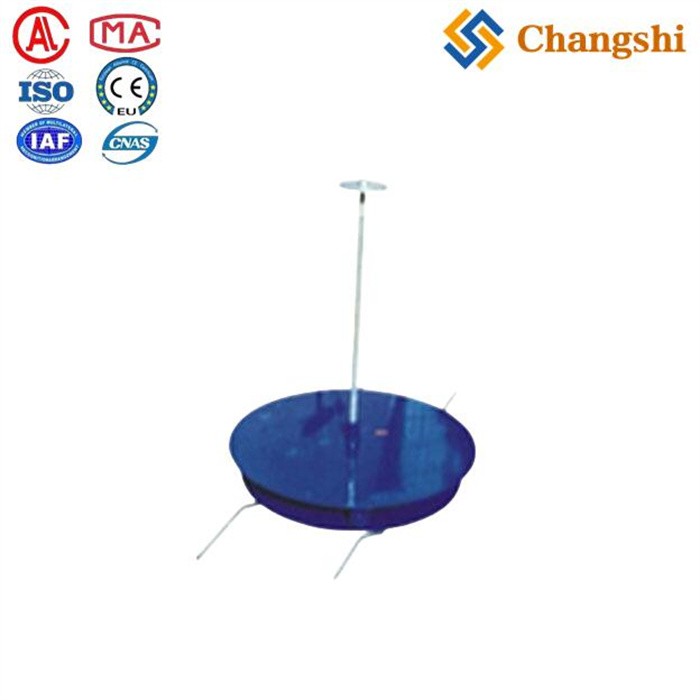

Upright Payout Turntable for Cable Reels
-
Function and Design: Upright payout turntables are designed to support cable reels vertically, allowing the reel to rotate on a turntable base as cable is pulled off. This setup helps prevent cable twisting and tangling during payout.
-
Specifications:
-
Reel diameters supported typically range from 500mm to 1500mm.
-
Bearing load capacity varies from 1000kg up to 5000kg depending on the model.
-
Weight of the turntable itself can range from about 36kg to over 120kg.
-
Some models feature small or big cover slabs for protection or stability.
-
-
Features:
-
Heavy-duty construction to handle large cable reels.
-
Some models include features like tubular gin poles, come along clamps, wire rope pulley blocks, and other accessories to aid in cable installation.
-
Customization options may be available depending on supplier.
-
-
Summary Table: Upright Payout Turntable (Cable Reel) vs. Upright Turntable (Vinyl)
| Feature | Upright Payout Turntable (Cable Reel) | Upright Turntable (Vinyl Record Player) |
|---|---|---|
| Purpose | Support and payout of cable reels in vertical position | Play vinyl records in vertical orientation |
| Typical Use | Electrical cable installation, wire payout | Audio playback, space-saving design |
| Load Capacity | 1000kg to 5000kg | Not applicable |
| Reel Diameter Support | 500mm to 1500mm | Standard vinyl record size (12-inch LP) |
| Manufacturers | Dongfang, Marshine Power Technology | Mitsubishi (historical model LT-640) |
| Key Features | Heavy-duty, certified, customizable | Linear tracking, space-saving, 1980s design |
| Availability | Commercial industrial equipment suppliers | Vintage or collector's item |
In conclusion, if you are referring to an upright payout turntable in the context of cable handling, it is a heavy-duty industrial stand designed to hold and rotate cable reels vertically during payout operations, with various sizes and load capacities available from manufacturers like Dongfang and Marshine. If you mean an upright turntable for vinyl records, it is a niche, space-saving audio device from the 1980s like the Mitsubishi LT-640, which plays records upright but is less common and mostly of historical interest
