Constant Tension Control Systems (CTCS): Revolutionizing Precision and Safety in OHTL Stringing

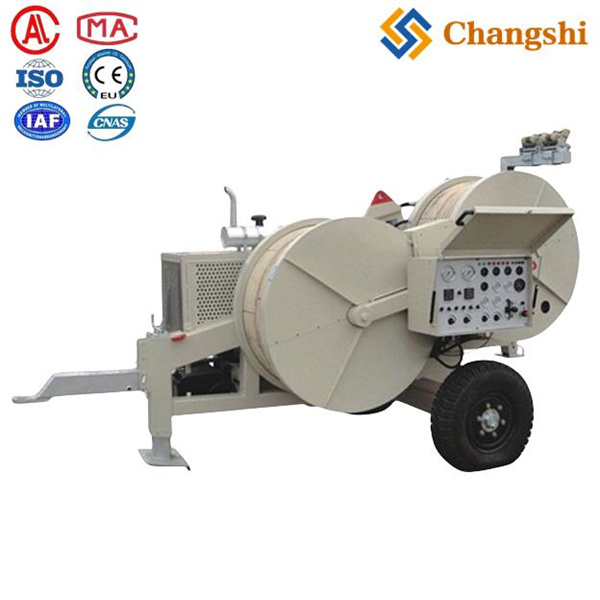

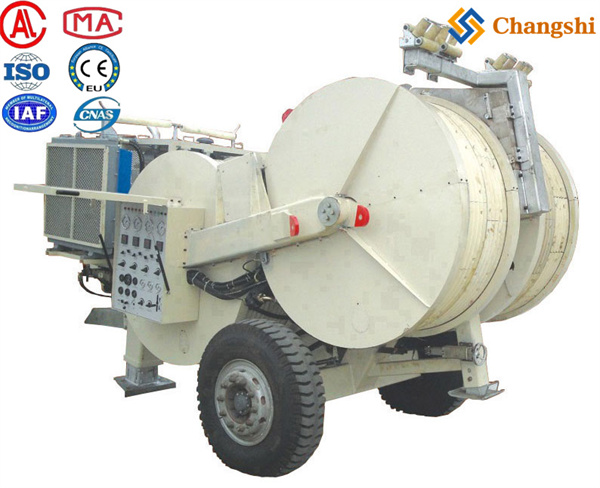

On behalf of Ningbo Changshi Electric Power Machinery Manufacturing Limited, a prominent China manufacturer and global exporter specializing in comprehensive tools and equipment for power lines, substations, electrical construction, and maintenance, we are immensely proud to introduce our advanced Constant Tension Control Systems (CTCS). In the demanding world of overhead transmission line (OHTL) construction, maintaining precise and unwavering conductor tension is paramount. Our CTCS is not just a component; it's an intelligent, integrated solution designed to work seamlessly with our Tensioners (and compatible third-party equipment) to provide automated, real-time adjustments, ensuring that the desired tension is maintained flawlessly throughout the entire stringing operation, regardless of terrain variations, speed changes, or external factors.

The Ningbo Changshi CTCS represents a significant leap forward in stringing technology. By dynamically monitoring and precisely regulating the back tension applied to the conductor, this system virtually eliminates tension fluctuations. This capability is critical for preventing conductor damage (such as nicks, abrasions, or overstretching), controlling sag with unprecedented accuracy, and significantly enhancing the overall safety and efficiency of your projects. For high-voltage, extra-high voltage (EHV), and ultra-high voltage (UHV) lines, where conductor integrity and precise sag are non-negotiable, our CTCS is an indispensable technology that safeguards your investment and ensures the long-term reliability of power infrastructure.

Product Features & Benefits:

The Ningbo Changshi Constant Tension Control Systems (CTCS) are engineered to deliver unparalleled accuracy, enhance operational safety, and optimize the lifespan of conductors during stringing.

• Automated Constant Tension Maintenance: The core benefit is the system's ability to automatically detect and correct any deviation from the pre-set tension value in real-time. This ensures a consistent, unwavering pull, eliminating manual adjustments and reducing operator fatigue.

• Precision Sag Control: By maintaining uniform tension, CTCS allows for highly accurate sag calculations and adherence to design specifications, which is crucial for maximizing power transmission efficiency, preventing conductor clashing, and optimizing line performance.

• Superior Conductor Protection: Eliminates damaging tension spikes and slack conditions that can cause conductor abrasion, kinking, or overstretching. This extends the service life of expensive conductors and significantly reduces material waste.

• Real-time Monitoring & Data Logging: Equipped with advanced sensors and a digital interface for continuous display of actual tension, speed, and other critical parameters. Comprehensive data logging capabilities provide invaluable insights for quality assurance, project reporting, and post-analysis.

• Enhanced Operational Safety: Reduces the risk of sudden line movements or equipment failures due to uncontrolled tension changes, creating a safer working environment for ground crews and equipment operators.

• Adaptive Performance: Utilizes intelligent algorithms to adapt to changing field conditions, such as varying terrain, elevation changes, and line irregularities, maintaining optimal performance throughout the stringing process.

• Seamless Integration: Designed to integrate effortlessly with Ningbo Changshi hydraulic Tensioners and pullers, as well as being adaptable to various other stringing equipment, upgrading existing fleets with advanced control capabilities.

• Efficiency & Productivity Gains: Automates a critical aspect of stringing, freeing operators to focus on other tasks, reducing errors, and accelerating project completion times while maintaining the highest quality standards.

Product Applications:

Our Constant Tension Control Systems (CTCS) are ideally suited for any overhead line stringing project where precision, conductor integrity, and safety are paramount.

• High Voltage (HV), EHV, and UHV transmission line Construction: Essential for the precise stringing of large-diameter conductors and complex multi-bundle conductors, where sag control and conductor protection are critical for line performance and longevity.

• River, Valley, and Canyon Crossings: Ensures consistent tension over long and challenging spans, where maintaining precise conductor height and preventing ground contact is vital.

• Delicate Fiber Optic Ground Wire (OPGW) Installation: Provides the gentle, unwavering tension required to protect the integrated fiber optic strands within OPGW cables from micro-bending or damage during installation.

• Re-conductoring and Upgrade Projects: Critical for controlled removal and replacement of existing conductors, ensuring minimal disruption and maximum safety.

• Projects with Strict Sag & Tension Specifications: Indispensable for adhering to rigorous engineering specifications for sag, clearance, and tension in environmentally sensitive areas or urban corridors.

• Any Application Demanding Automated Precision: From large-scale industrial projects to complex infrastructure developments where manual tension control is insufficient.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited or Partner With Us?

At Ningbo Changshi, we offer comprehensive one-stop supply and services for both overhead transmission line wire cable conductor tension stringing equipment and underground cable laying equipment. Our unwavering commitment to global excellence is reflected in:

1. Innovation at the Forefront of Stringing Technology: As a prominent China manufacturer, we continuously invest in cutting-edge research and development to bring transformative solutions like CTCS to the market. We are not just supplying equipment; we are providing intelligent systems that redefine efficiency and precision in power line construction.

2. Trusted Global Exporter & Unrivaled Worldwide Support: We have meticulously built a formidable reputation as a trusted global exporter, consistently providing robust equipment and comprehensive, proactive after-sales support worldwide. Our dedicated international team ensures seamless logistics, punctual delivery, and highly responsive technical assistance, guaranteeing uninterrupted project flow and maximum uptime for your advanced systems.

3. Comprehensive Integrated Solutions: Our extensive product range, from high-capacity tensioners and pullers to essential overhead tools and underground equipment, means you can source your entire project needs from a single, reliable partner. Our CTCS seamlessly integrates with our core equipment, offering a truly cohesive and optimized solution.

4. Commitment to Conductor Integrity & Safety: Our design philosophy prioritizes the longevity of your high-value conductors and the safety of your personnel. The CTCS is a prime example of how our technology directly contributes to protecting your assets and creating safer work environments.

5. Strategic Client Partnership for Future-Proofing: We firmly believe in forging strong, enduring strategic partnerships. Our highly experienced experts work intimately with you to deeply understand your unique, complex project challenges, offering bespoke solutions and proactive, hands-on support. Partner with Ningbo Changshi to future-proof your stringing operations with the latest advancements.

Technical Data Sheet: Constant Tension Control Systems (CTCS)

Note: Specifications are typical for a sophisticated CTCS and may vary based on the specific tensioner model it's integrated with, project requirements, and continuous technological advancements. For detailed specifications and compatibility assessments, please consult directly with Ningbo Changshi Electric Power Machinery Manufacturing Limited.

Final Summary:

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we are committed to providing the most advanced, safe, and efficient solutions for power line construction. Our Constant Tension Control Systems (CTCS) are a testament to this commitment, offering unparalleled precision, vital conductor protection, and enhanced operational safety for all your overhead transmission line stringing projects. Integrate CTCS to transform your stringing operations from manual adjustment to automated perfection.

Elevate your OHTL stringing projects to a new standard of precision, safety, and efficiency with Ningbo Changshi's Constant Tension Control Systems (CTCS). Contact our expert team today to discuss how CTCS can be seamlessly integrated with your equipment, request a comprehensive demonstration, or get a customized quote. Let Ningbo Changshi be your strategic partner in building more reliable and future-proof power grids worldwide!
