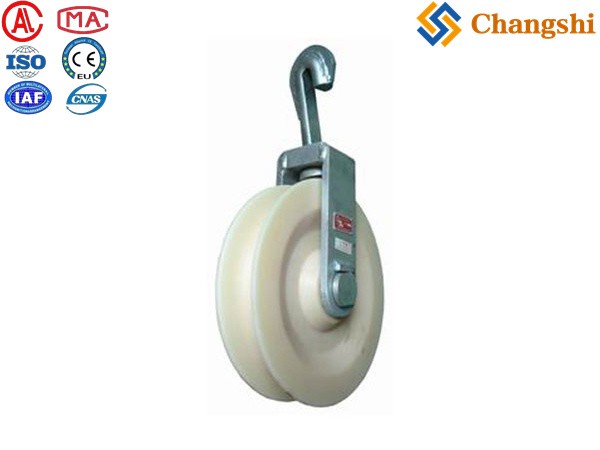

Clip-In Conductor Tensioning Block for Overhead Line Sagging

Clip-In Conductor Tensioning Block: Precision and Efficiency for Overhead transmission line (OHTL) Sagging and Tightening

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we are constantly innovating to provide tools that enhance both the efficiency and precision of power line construction. Our Clip-In Conductor Tensioning Block is a specialized, meticulously engineered tool designed for the critical phase of tightening and sagging conductors on overhead transmission lines (OHTL). This block's unique "clip-in" mechanism allows for rapid, secure, and intuitive attachment to the conductor, streamlining operations and ensuring precise tensioning. As a prominent China manufacturer and exporter, we offer a comprehensive one-stop supply for a wide array of tools and equipment for power lines, and this innovative block exemplifies our unwavering commitment to practical utility, robust design, and reliable performance for achieving optimal sag and tension.

The process of conductor sagging – adjusting the tension to achieve the correct curve (sag) between poles or towers – is vital for the long-term integrity and performance of a transmission line. Conventional methods can be time-consuming and labor-intensive. Our Clip-In Conductor Tensioning Block simplifies this process by allowing quick and firm attachment to the conductor, providing a stable point for pulling or holding tension. This design minimizes preparation time, increases safety, and allows crews to make precise adjustments efficiently, ensuring that conductors are tightened to exact specifications without damage.

Product Features & Benefits:

• Innovative Clip-In Mechanism: The primary feature, allowing for rapid and secure attachment directly onto the conductor. This design enhances efficiency and ease of use compared to traditional methods, reducing setup time.

• Precision Conductor Tightening: Provides a stable anchor point for applying tension to conductors, enabling precise adjustments to achieve the required sag profile, critical for line performance and longevity.

• Optimal Conductor Protection: Features a carefully designed and often non-abrasive groove or clamping surface that securely grips the conductor without causing kinking, scratching, or other damage to the wire's integrity.

• High Load Capacity: Built to withstand the significant tensile forces involved in conductor sagging and tightening, ensuring reliable and safe operation under load.

• Robust & Durable Construction: Manufactured from high-strength steel or alloys, ensuring the block can endure the continuous tension and harsh environmental conditions encountered in the field.

• Smooth Operation: While its primary role is tensioning, any internal rollers or contact surfaces are designed to minimize friction, allowing controlled movement when adjusting tension.

• Versatile Application: Can be used for various conductor types and sizes, offering flexibility for different OHTL projects.

• Corrosion Resistance: All exposed components are typically hot-dip galvanized or treated with durable coatings, providing excellent protection against rust and environmental degradation.

Product Applications:

Our Clip-In Conductor Tensioning Block is indispensable for a variety of critical overhead transmission line projects during the tensioning and sagging phases:

• Initial Conductor Sagging: Essential for accurately setting the sag of newly strung conductors to meet design specifications.

• Re-tensioning & Adjustment: Ideal for fine-tuning the tension of existing lines or adjusting sag after environmental changes or maintenance.

• Bundle Conductor Installation: Can be adapted for precise tensioning of individual conductors within a bundle, ensuring even load distribution.

• Repair & Replacement Work: Facilitates the controlled tightening of conductors during repair sections or when replacing damaged spans.

• Any Project Requiring Precise Tension Management: A vital tool for achieving optimal line performance and preventing premature conductor fatigue.

• Efficiency-Focused Operations: Speeds up the sagging process, contributing to faster project completion times.

Technical Data Sheet:

Note: Specific technical specifications, including exact working load limit and compatible conductor diameter range, will vary depending on the model and intended application. Always operate within the stated WLL. Please contact us for detailed datasheets for specific product variants.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to precision, efficiency, and comprehensive solutions. Here’s why we are your ideal choice:

1. Innovative Clip-In Efficiency: Our unique clip-in design significantly reduces setup time, allowing your crews to perform sagging and tensioning tasks more quickly and safely.

2. Comprehensive One-Stop Solutions: As a prominent manufacturer and exporter, we offer a vast array of equipment for both overhead and underground power line projects, providing a truly integrated supply chain that simplifies your procurement.

3. Unwavering Quality & Precision: Every Clip-In Conductor Tensioning Block undergoes rigorous quality control and testing, ensuring it is robust, reliable, and performs flawlessly, enabling precise sag adjustments.

4. Global Export & Dedicated Support: Our efficient worldwide export capabilities and committed customer service team ensure prompt delivery and expert technical assistance, wherever your critical project is located.

5. Engineering for Optimal Line Performance: We provide specialized tools that empower your teams to achieve accurate conductor tensioning, which is crucial for the long-term reliability and performance of your power lines.

Final Summary:

Our Clip-In Conductor Tensioning Block is an indispensable, innovative tool designed for the efficient, precise, and safe tightening and sagging of conductors on overhead transmission lines. Its unique clip-in mechanism streamlines operations, ensuring optimal tensioning with reduced effort and increased safety. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your projects with high-quality, reliable, and intelligently designed equipment that optimizes your OHTL construction processes.

Achieve perfect sag and tension with speed and precision! Explore our Clip-In Conductor Tensioning Blocks. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific conductor tightening needs and request a comprehensive quotation!
