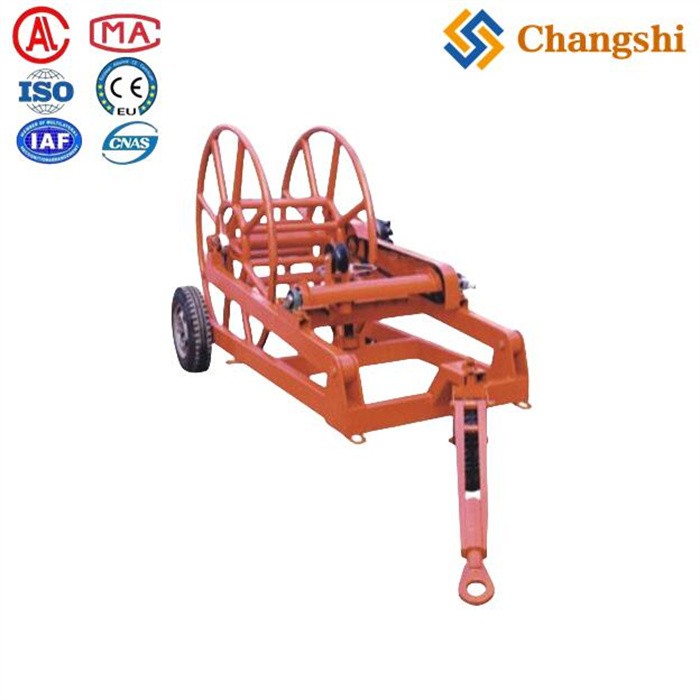

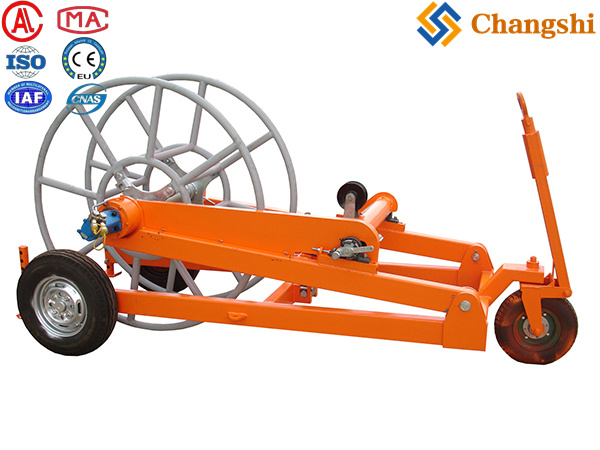

A take-up reel and carriage is a specialized mechanical system used primarily in wire, cable, and rope handling industries to facilitate the controlled winding, unwinding, and transportation of reels during stringing, manufacturing, or distribution processes.
-
: The take-up reel and carriage operate as an independent winding unit, often used in conjunction with hydraulic power units such as SA-YQZ40/SA-YQZ60 Hydraulic Puller Tensioners for controlled tension and movement.
-
: Typically powered by a hydraulic motor with a multi-plate hydraulic brake system that is spring-actuated and hydraulically released, providing smooth operation and reliable braking.
-
: Equipped with an automatic level wind mechanism to evenly distribute the wire or cable onto the reel, preventing overlaps and ensuring neat spooling.
-
: The carriage frame is made of welded steel with protective coatings for durability, and hydraulic jacks powered by the same hydraulic source enable the carriage to lift the reel for easy loading and unloading.
-
: The frame is robust, made from welded steel with protective coatings to resist corrosion and wear.
-
: Can be used with various reel sizes and types; supporting reels like the GSP1400 steel wire rope reel are ordered separately.
-
: Often customizable to meet specific project requirements, including reel size, carriage dimensions, and hydraulic system compatibility.
-
: Products typically meet CE and ISO standards, ensuring quality and safety compliance.
-
-
Used extensively in overhead transmission line construction for wire and cable stringing.
-
Employed in cable manufacturing and distribution facilities for rewinding large spools onto smaller reels.
-
Suitable for industries requiring controlled tension and precise cable handling during winding or unwinding.
-
Improves productivity by automating reel winding and unwinding.
-
Enhances safety by reducing manual handling of heavy reels.
-
Provides precise tension control and even spooling via hydraulic drive and automatic level wind.
-
Hydraulic lifting capability simplifies reel loading and unloading.
-
Take-up reel and carriage systems are essential equipment in cable and wire handling operations, offering automated, controlled winding and unwinding with hydraulic drive, braking, and lifting capabilities. Their sturdy welded steel construction and automatic level wind mechanisms ensure efficient, safe, and neat cable management. These systems integrate seamlessly with hydraulic puller tensioners and are customizable to suit various reel sizes and operational needs, making them widely used in transmission line projects, cable manufacturing, and distribution centers
