Anti Twisting Rope Cradle Reel Stand Elevators For Overhead Power Line Construction Stringing Operations
Anti twisting rope cradle reel stand elevators are specialized equipment used in overhead power line construction to support and handle reels of anti-twisting wire ropes or pilot wires during stringing operations. These stands and elevators ensure smooth payout and retrieval of wire rope reels while preventing rope twisting and tangling, which can cause operational delays or damage.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video

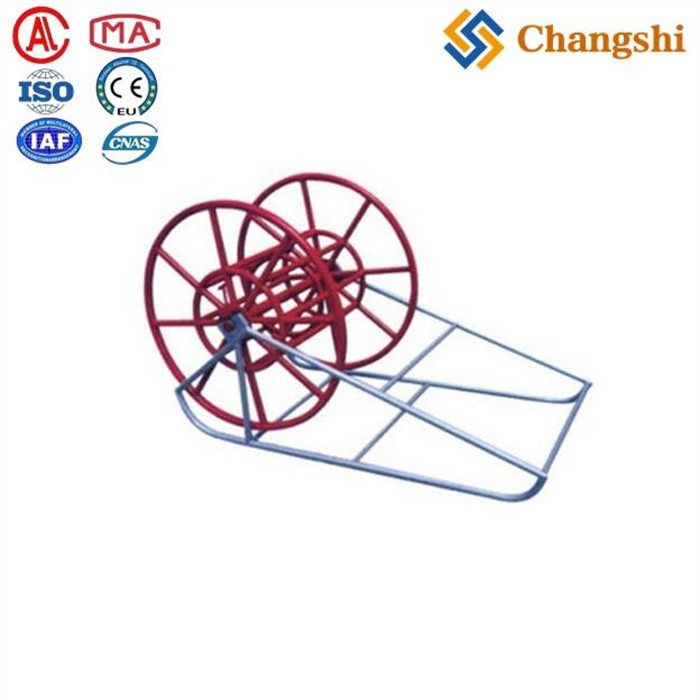

Anti twisting rope cradle reel stand elevators are specialized equipment used in overhead power line construction to support and handle reels of anti-twisting wire ropes or pilot wires during stringing operations. These stands and elevators ensure smooth payout and retrieval of wire rope reels while preventing rope twisting and tangling, which can cause operational delays or damage.
-
: Designed to hold and rotate reels of anti-twisting wire ropes or pilot wires safely and efficiently during installation or retrieval.
-

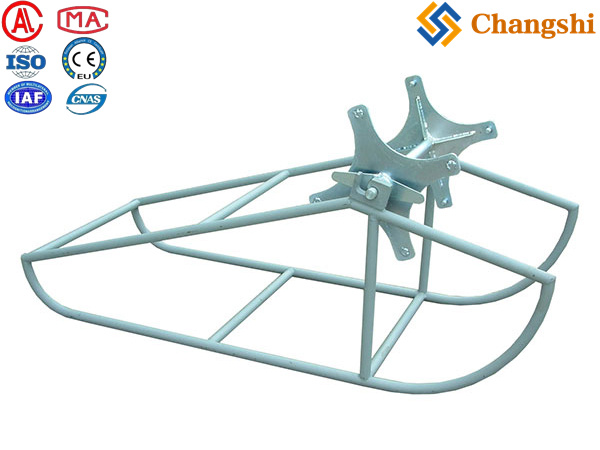

: Typically made of welded steel frames with protective coatings for durability and corrosion resistance. Some models feature detachable frames and disc brake systems for controlled reel rotation and easy transport.
-
: Suitable for reels with outer diameters ranging from about 1000 mm to 1840 mm and widths between 350 mm and 710 mm. Weight capacities vary by model, with stand weights ranging from approximately 12 kg to 39 kg.
-
: Many models come equipped with disc brakes or optional brake systems to control reel rotation speed and prevent uncontrolled unwinding.
-
: Commonly certified to CE and ISO standards, ensuring quality and safety compliance.
-
: Available in various sizes and configurations to match specific reel dimensions and project requirements.
-
: Used extensively in transmission line construction for paying out or taking back steel wire ropes, pilot wires, and other cables.
-
| Model | Reel Outer Diameter (mm) | Reel Root Diameter (mm) | Reel Width (mm) | Stand Weight (kg) |
|---|---|---|---|---|
| SE-1J | 1000 | 420 | 350 | 12 |
| SE-2J | 1400 | 720 | 530 | 16 |
| SE-3J | 1400 | 720 | 530 | 16 |
| SE-4J | 1660 | 720 | 630 | 20 |
| SE-5J | 1750 | 730 | 680 | 30 |
| SE-6J | 1840 | 730 | 710 | 39 |
Anti twisting rope cradle reel stand elevators are essential for managing wire rope reels in overhead line projects, providing stable support and controlled rotation to prevent rope twisting and damage. Their robust steel construction, optional braking systems, and compliance with international standards make them reliable and safe equipment for stringing operations. These stands accommodate a wide range of reel sizes and are widely used worldwide in transmission and distribution line construction.
