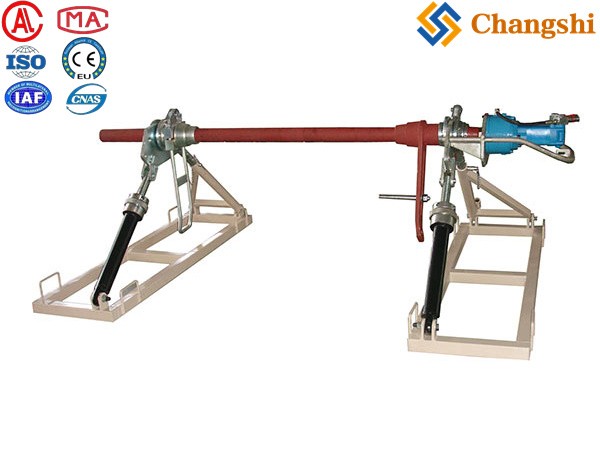

5 Ton Hydraulic Conductor Reel Stands for Heavy Cable Payout

5 Ton Hydraulic Conductor OHTLstringingequipment.com/Reel-Stands--Cable-Winders.html target='_blank'>Reel Stands: Powering Heavy-Duty Cable & Conductor Payout with Effortless Precision

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we are acutely aware that modern power line and underground cable projects demand robust equipment capable of handling immense loads with ease and control. Our 5 Ton Hydraulic Conductor OHTLstringingequipment.com/Reel-Stands--Cable-Winders.html target='_blank'>Reel Stands are meticulously engineered, heavy-duty support systems featuring integrated hydraulic lifting mechanisms designed to effortlessly raise, support, and facilitate the smooth payout of large, weighty conductor and cable reels weighing up to 5 tons. As a prominent China manufacturer and exporter specializing in tools and equipment for overhead transmission line (OHTL) stringing and underground cable laying, we offer comprehensive one-stop supply. These hydraulic reel stands exemplify our unwavering commitment to power, safety, and operational efficiency for your most demanding projects.

Handling large conductor or cable reels, often weighing several tons, can be a labor-intensive and challenging task without the proper equipment. Our 5 Ton Hydraulic Conductor Reel Stands address this by incorporating powerful hydraulic cylinders, which allow for quick, safe, and effortless lifting of even the heaviest drums into position. Once elevated, the robust and stable frame, coupled with a sturdy axle and precision bearings, ensures smooth rotation of the reel, enabling controlled conductor payout. This superior design not only significantly reduces manual effort and potential for injury but also contributes to a more consistent and damage-free stringing process. Whether for laying massive underground cables or stringing heavy conductors on high-voltage OHTL, these stands are engineered for supreme reliability and ease of use, making them an indispensable asset on any major infrastructure project.

Product Features & Benefits:

• 5-Ton Load Capacity: Specifically engineered to safely and reliably support extremely heavy conductor and cable reels weighing up to 5 metric tons, accommodating the largest drums used in power infrastructure.

• Integrated Hydraulic Lifting: Features powerful, self-contained hydraulic cylinders that allow for effortless and controlled raising of heavy reels, significantly reducing manual labor and enhancing safety.

• Robust & Stable Design: Constructed from heavy-gauge, reinforced structural steel, providing exceptional stability and resistance to tipping or deformation even under maximum load and dynamic payout conditions.

• Smooth Conductor Payout: Equipped with a heavy-duty spindle and precision-machined bearings (or bushings) to ensure friction-free and consistent rotation of the reel, facilitating damage-free conductor unwinding.

• Adjustable Height (Hydraulic): The hydraulic mechanism often allows for adjustable height settings, accommodating various reel diameters and optimizing payout angle for specific site conditions.

• Enhanced Safety: Reduces the risk of injuries associated with manual lifting of heavy reels, providing a secure and controlled environment for cable payout.

• Durable & Weather-Resistant: Components are finished with industrial-grade paint or hot-dip galvanization, providing excellent protection against corrosion and ensuring longevity in harsh outdoor environments.

• Easy Setup & Relocation: Despite their heavy-duty nature, the hydraulic lift simplifies setup, and their robust design allows for efficient relocation across job sites.

Product Applications:

Our 5 Ton Hydraulic Conductor Reel Stands are essential equipment for heavy-duty conductor and cable handling across a variety of power and construction projects:

• Heavy Overhead transmission line (OHTL) Stringing: Ideal for supporting large, heavy conductor reels during the tension stringing of high-voltage transmission lines.

• Underground cable laying: Crucial for managing the payout of massive underground power cables from drums for trenching, ducting, and direct burial applications.

• Substation cable installation: Used for supporting and paying out large feeder cables within substations.

• Marine & Offshore Cable Deployment: Applicable for supporting and deploying heavy umbilical cables or power cables in marine environments.

• Re-conductoring & Upgrading Projects: Indispensable for handling the new, often heavier, conductors during upgrades of existing power lines.

• Any Project with Large & Heavy Reels: Essential for any civil engineering or electrical project requiring the stable support and controlled payout of substantial cable or wire drums.

Technical Data Sheet:

Note: The capacity is typically stated per pair of stands. Specific technical specifications, including exact reel dimensions, spindle size, and precise weight, will vary depending on the model and design. Always ensure the stands' combined capacity meets or exceeds the weight of your heaviest conductor reels. Adherence to strict safety protocols during setup, loading, and operation is paramount. Please contact us for detailed datasheets for specific product variants.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to powerful, reliable, and comprehensive solutions for your heavy-duty power projects. Here’s why we are your ideal choice:

1. Unmatched Hydraulic Power & Capacity: Our 5-ton stands effortlessly handle the heaviest conductor reels, significantly reducing manual effort and enhancing safety on large-scale projects.

2. Comprehensive One-Stop Supply: As a prominent manufacturer and exporter, we offer a vast array of equipment for both overhead transmission line (OHTL) stringing and underground cable laying, providing a truly integrated supply chain that streamlines your procurement.

3. Superior Quality & Unyielding Durability: Every 5 Ton Hydraulic Conductor Reel Stand undergoes rigorous quality control and load testing, ensuring it is robust, reliable, and performs consistently in the most challenging field conditions.

4. Global Export & Dedicated Elite Support: Our efficient worldwide export capabilities and committed team of elite technical support specialists ensure prompt delivery and expert assistance, wherever your project is located, including here in Taiwan.

5. Enhanced Safety & Efficiency: By simplifying the handling of heavy reels and enabling smooth payout, our stands contribute to a safer worksite, faster project completion, and damage-free conductor installation.

Final Summary:

Our 5 Ton Hydraulic Conductor Reel Stands are indispensable, heavy-duty support systems engineered to provide effortless lifting, stable support, and controlled payout for the largest and heaviest conductor and cable reels. Their robust construction and integrated hydraulic mechanism significantly enhance safety and efficiency in both overhead transmission line stringing and underground cable laying projects. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your operations with high-quality, dependable, and intelligently designed heavy cable handling solutions.

Power your heavy cable stringing with effortless precision! Explore our 5 Ton Hydraulic Conductor Reel Stands. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific heavy cable payout needs and request a comprehensive quotation!
