3 Ton Powered cable laying pulling Winch for overhead power transmission lines

A Three Ton Dual-Bull Wheel Powered Winch is a specialized powered winch widely used in overhead power transmission and distribution line projects for erecting pole pylons, laying cables, hoisting mechanical equipment, and hauling and stringing conductors. The dual-bull wheel design helps reduce damage to the steel wire rope by distributing load stresses more evenly.

Key Specifications:

Feature	Model JJCS-30 (Diesel)	Model JJQS-30 (Gasoline)

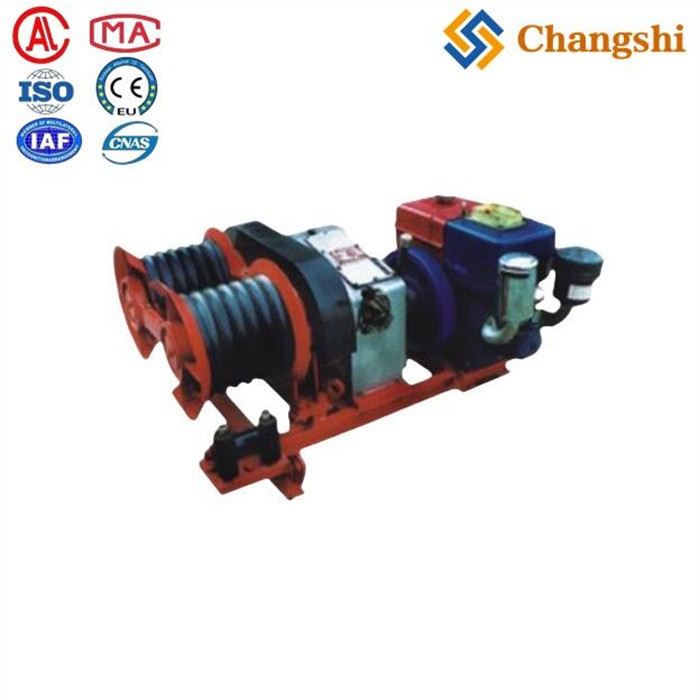

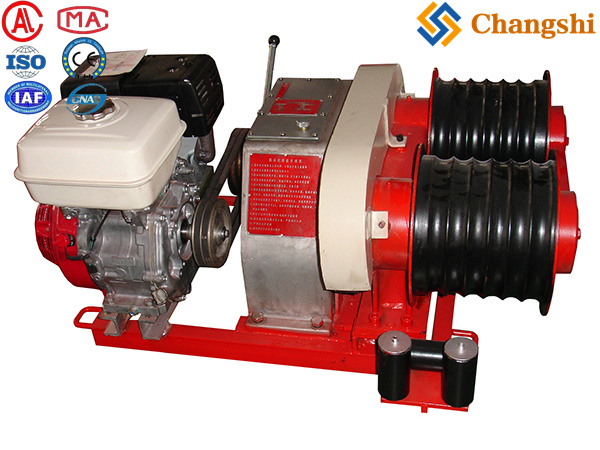

Engine Model	Diesel R175A	Honda GX270
Power (hp)	6	9
Engine Speed (rpm)	2600	3600
Pull Force / Speed (kN / m/min)	Slow: 30 / 5.7	Slow: 30 / 7.43
	Medium: 18.9 / 9.1	Medium: 19.2 / 11.8
	Quick: 7.6 / 22.7	Quick: 7.2 / 31.4
Reverse Speed (m/min)	6.5	8.4
Drum Groove Diameter (mm)	230	230
Overall Dimensions (mm)	1000 × 670 × 600	1000 × 670 × 600
Weight (kg)	260	242

Features and Uses:

• Dual Bull Wheel Structure: Minimizes wire rope damage, extending rope life and improving operational safety.

• Versatile Applications: Suitable for pole erection, cable laying, hoisting mechanical equipment, and conductor stringing.

• Portable and Powerful: Compact dimensions and moderate weight allow for field mobility while delivering up to 3 tons of pulling power.

• Engine Options: Available with either a 6 hp diesel engine or a 9 hp gasoline engine, providing flexibility based on site requirements.

• Multiple Speed Settings: Offers slow, medium, and quick pulling speeds for precise control during stringing and hoisting tasks.

• Certifications: CE and ISO certified, ensuring compliance with international quality and safety standards.

Summary:

This winch is a reliable, efficient, and durable tool essential for overhead transmission line construction and maintenance, providing controlled power and protection for wire ropes through its dual-bull wheel design
