3 Ton 5 Ton Diesel Engine Powered Winch for Cable & Conductor Pulling

Discover Ningbo Changshi's versatile 3-ton & 5-ton diesel engine powered winches. Ideal for cable pulling, conductor stringing & heavy lifting in power line and underground projects.

Product Name:Transmission Line Wire Cable Conductor Tension Stringing Equipment
Keywords:Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
Function:Tools For Power Lines,Substation,Electrical Construction & Maintenance
Category:Electric Power Transmission Distribution Line Construction Machine Tools
Usage:Overhead Power Transmission Distribution Line Repair Hardware Fittings
Relatives :Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories

Request a Quote

Information
Video

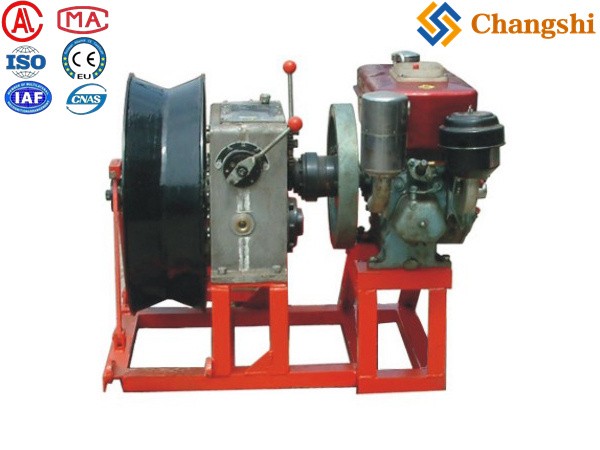

3 Ton & 5 Ton Diesel Engine Powered Winch: Robust Power for Cable & conductor pulling

On behalf of Ningbo Changshi Electric Power Machinery Manufacturing Limited, a prominent China manufacturer and global exporter specializing in comprehensive tools and equipment for power lines, substations, electrical construction, and maintenance, we are pleased to introduce our versatile 3 Ton & 5 Ton Diesel Engine Powered Winch. This robust and reliable winch is an essential workhorse for a wide array of pulling, lifting, and tensioning tasks in both overhead transmission line (OHTL) projects and critical underground cable laying operations.

Engineered for exceptional performance and durability, our diesel-powered winches provide consistent, strong pulling force, crucial for safely handling cables, conductors, and equipment in challenging environments. Their self-contained power source ensures independence from external electricity, offering maximum flexibility and reliability on remote job sites worldwide.

Product Features & Benefits:

The Ningbo Changshi 3 Ton & 5 Ton Diesel Engine Powered Winch is designed for optimal power, control, and endurance, making it a dependable asset for diverse power infrastructure projects.

Dual Capacity Versatility (3 Ton & 5 Ton): Available in highly practical 3-ton (30 kN) and 5-ton (50 kN) models, offering flexible solutions to match specific project requirements for lifting, pulling, or light tensioning, from pilot rope stringing to medium cable pulling.
Robust Diesel Engine Power: Equipped with a reliable, high-performance diesel engine (e.g., Changchai, Kama, or equivalent), ensuring consistent power output, excellent fuel efficiency, and dependable operation even in demanding conditions without external power sources.
Durable & Reliable Construction: Manufactured with a heavy-duty steel frame and high-quality, wear-resistant components, designed to withstand continuous strenuous use, harsh weather, and rugged construction environments, guaranteeing long service life.
Efficient Gearing System: Features a robust gearbox and multi-stage planetary reduction, providing smooth operation, high torque, and efficient power transmission for effective pulling and lifting.
Precise Control & Safety Brake: Includes intuitive controls for precise speed and force management. A reliable automatic braking system (e.g., mechanical or hydraulic brake) ensures immediate and secure load holding, enhancing safety during all operations.
Portable & Easy to Deploy: Designed with a compact footprint and often fitted with strong lifting points or transport wheels, facilitating easy transportation and rapid deployment to various job sites.
Wide Application Range: Highly adaptable for both overhead and underground applications, making it a truly versatile tool for electrical contractors.

Product Applications:

Our 3 Ton & 5 Ton Diesel Engine Powered Winch is an invaluable tool for:

Overhead transmission line (OHTL) Stringing: Ideal for pulling pilot ropes, light-to-medium conductors, and assisting with various rigging and lifting tasks during pole or tower erection.
Underground cable laying: Essential for pulling power and communication cables through conduits, ducts, and trenches, ensuring smooth and efficient installation.
Substation Construction & Maintenance: Used for lifting and positioning heavy equipment, transformers, and other components within substations.
General Lifting & Pulling Operations: Versatile enough for a broad range of heavy-duty lifting, dragging, and positioning tasks on any construction site.
Emergency & Recovery Operations: A dependable power source for retrieving equipment or assisting in difficult site conditions.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited or Partner With Us?

At Ningbo Changshi, we offer comprehensive one-stop supply and services for both overhead transmission line wire cable conductor tension stringing equipment and underground cable laying equipment. Our unwavering commitment to global excellence is reflected in:

Reputable China Manufacturer: We combine advanced manufacturing processes with stringent quality control, ensuring every winch meets international performance and safety standards, delivering exceptional reliability.
Global Export Expertise: With extensive experience exporting to diverse international markets, we understand global project requirements and provide seamless logistics and support, ensuring timely delivery and dependable after-sales service worldwide.
Comprehensive Product Range: Beyond winches, we supply a wide array of specialized equipment for OHTL and underground projects, allowing you to consolidate procurement and rely on a single, trusted source.
Value-Driven Solutions: We provide high-quality, durable equipment that offers excellent long-term value, optimizing your operational efficiency and reducing overall project costs.
Customer-Centric Partnership: We believe in building lasting relationships. Our expert team works closely with clients to understand specific needs, offering tailored solutions and proactive support to ensure your success.

Technical Data Sheet: 3 Ton & 5 Ton Diesel Engine Powered Winch

Feature/Specification	3 Ton Model (Approximate)	5 Ton Model (Approximate)	Notes
Max. Pulling Force	30 kN (3 Ton)	50 kN (5 Ton)	Can be adjusted based on specific requirements
Rated Pulling Speed	8 - 12 m/min	6 - 10 m/min	Variable speed options typically available
Engine Type	Air-Cooled Diesel Engine (e.g., Changchai, Kama)	Air-Cooled Diesel Engine (e.g., Changchai, Kama, Larger HP)	Reputable industrial diesel engines
Engine Power	8 kW - 10 kW (11 - 13.5 HP)	12 kW - 15 kW (16 - 20 HP)	Power output varies by engine model
Drum Diameter	$Φ$ 200 - $Φ$ 250 mm	$Φ$ 250 - $Φ$ 300 mm	Designed for optimal rope capacity and pull efficiency
Rope Capacity	Approx. 300 - 500 meters of $Φ$ 10 mm wire rope	Approx. 500 - 800 meters of $Φ$ 12 mm wire rope	Dependent on rope diameter and drum size
Brake System	Automatic Mechanical Brake (e.g., Band Brake, Clutch-type)	Automatic Mechanical Brake (e.g., Band Brake, Clutch-type)	Ensures load holding when operation stops
Gearbox	High-Efficiency Reduction Gearbox	High-Efficiency Reduction Gearbox	For powerful and smooth operation
Control	Manual Lever/Throttle Control	Manual Lever/Throttle Control	Easy to operate for site personnel
Mobility	Wheel-mounted or Skid-mounted	Wheel-mounted or Skid-mounted	Designed for easy transport and positioning
Approx. Weight	250 kg - 400 kg	400 kg - 600 kg	Relatively compact and portable for their capacity
Approx. Dimensions (L x W x H)	$1.2 \times 0.8 \times 0.9$ m (varies)	$1.5 \times 1.0 \times 1.0$ m (varies)	Optimized for transport and site placement

Note: Specifications are approximate and may vary based on specific model configurations, chosen engine, and ongoing product improvements. For the most current and precise technical data, or to discuss specific needs and customization options, please contact our sales team directly.

Final Summary:

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we provide robust, reliable, and versatile equipment engineered for the demands of modern power infrastructure development worldwide. Our 3 Ton and 5 Ton Diesel Engine Powered Winches exemplify our commitment to delivering powerful, independent, and efficient solutions for both overhead and underground projects.

Equip your team with the dependable pulling power of Ningbo Changshi's diesel engine winches. Contact us today to learn more about our 3-ton and 5-ton models, request a tailored quote, or discuss how our comprehensive one-stop supply can support your next power line or cable laying project. Let Ningbo Changshi be your trusted partner for success!
