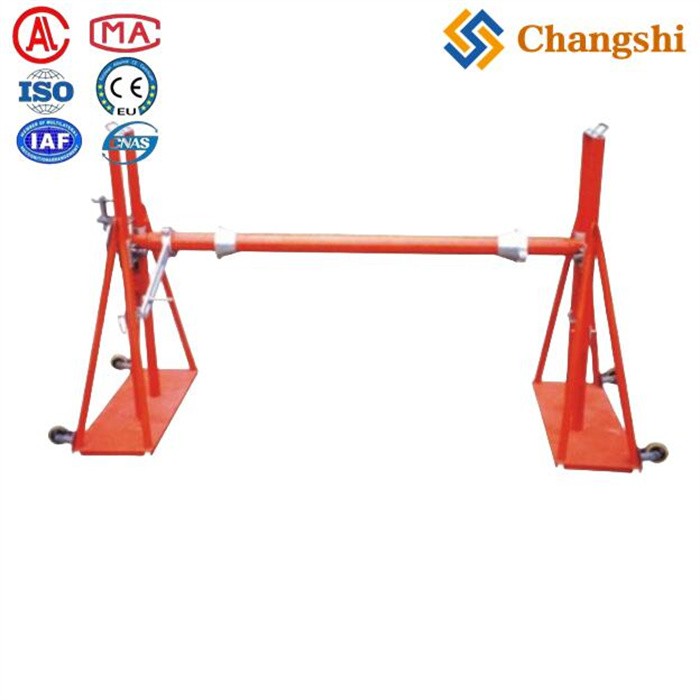

Electrical Cable Reel Stand For Underground Cable Laying Pulling Installation
A cable reel stand is a device designed to support and hold cable reels or spools securely, facilitating easy payout, storage, and handling of cables in various industries such as electrical, telecommunications, construction, and manufacturing.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
A cable reel stand is a device designed to support and hold cable reels or spools securely, facilitating easy payout, storage, and handling of cables in various industries such as electrical, telecommunications, construction, and manufacturing.
-
: Provide a stable, permanent platform for cable reels of different sizes and weights, often with a three-legged design for enhanced stability and safety.
-
: Feature movable components or arms to accommodate reels of varying diameters, offering flexibility for different cable sizes and applications.
-
: Allow the reel to rotate freely, enabling smooth cable withdrawal and precise control during payout operations.
-
: Built with robust, heavy-gauge steel to support large, heavy reels safely. Some come with rubber wheels for mobility and locking mechanisms for secure positioning.
-

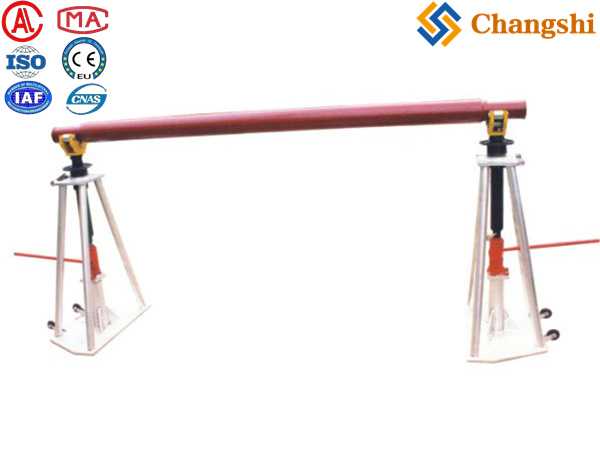

: Equipped with hydraulic lifts to raise and lower heavy reels smoothly, reducing manual labor and injury risk. These stands are portable, often with wheels, and adjustable to fit specific job site needs.
-
: Mounted on trailers or towing vehicles, ideal for outdoor and remote job sites requiring cable transport and handling.
-
-
Typically made from heavy-duty steel, including galvanized steel for corrosion resistance or carbon steel for durability.
-
Designed with solid steel shafts (commonly 2-inch diameter) and cam roller bearings for easy reel rotation and payout.
-
Features such as shaft safety locks with locking pins, grounding bars, anchor rings, and UHMW (ultra-high molecular weight) alignment strips to prevent wear and enhance safety.
-
Load capacities generally range from 1,000 lbs to 5,000 lbs, suitable for small to very large cable reels.
-
Reel diameter support varies, with common reel compartment sizes around 40 inches outer diameter and widths from 4 to 32 inches depending on model and compartment configuration.
-
Many stands include four-way fork pockets for easy transport by pallet truck or forklift.
-
Optional casters or wheels enhance mobility on job sites, though pallet truck compatibility may vary depending on caster installation.
-
-
Facilitate organized, efficient cable payout and installation, reducing cable tangling and damage.
-
Enhance worker safety by minimizing manual handling of heavy reels and providing stable support during cable withdrawal.
-
Used in cable laying, pulling, storage, and manufacturing processes involving electrical wires, communication cables, and other coiled materials like fishing lines or textiles.
In summary, cable reel stands are essential industrial tools designed to securely hold and facilitate the payout of cable reels. They come in various types—fixed, adjustable, swivel, hydraulic, and trailer-mounted—constructed mainly from heavy-duty steel with capacities up to 5,000 lbs or more. Features such as solid steel shafts, bearings, safety locks, and mobility options ensure efficient, safe, and versatile cable handling across diverse applications
