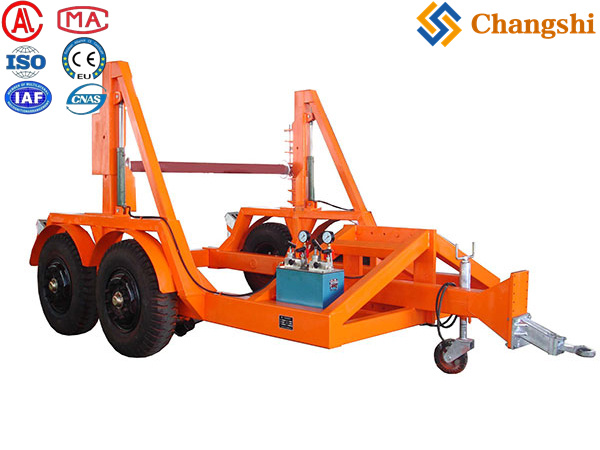

OPGW Installation Optic Cable Reel Trailer For Underground Overhead Cable Laying
A cable reel trailer is a specialized trailer designed to transport, store, and facilitate the payout or retrieval of large cable reels used in electrical, telecom, or fiber optic installations. These trailers are essential for safely handling heavy cable reels on job sites, especially for underground or overhead cable laying.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
A cable reel trailer is a specialized trailer designed to transport, store, and facilitate the payout or retrieval of large cable reels used in electrical, telecom, or fiber optic installations. These trailers are essential for safely handling heavy cable reels on job sites, especially for underground or overhead cable laying.
-

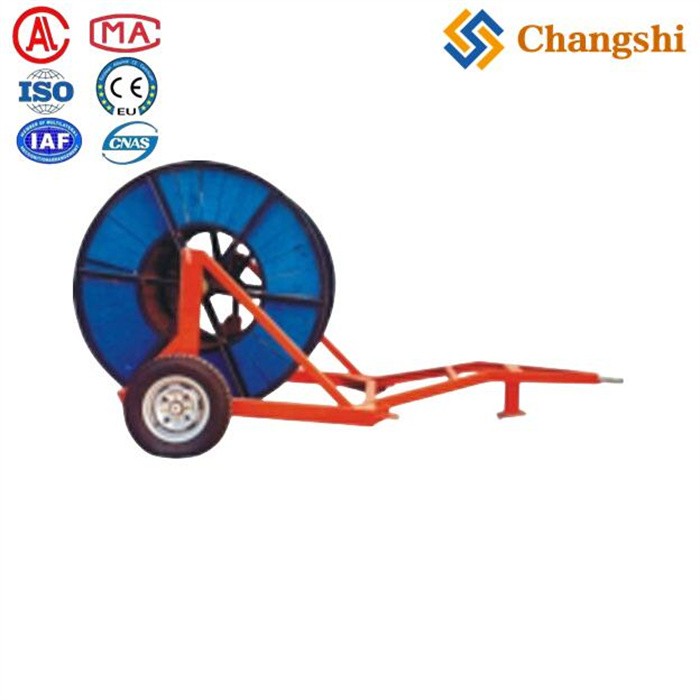

: Available as single reel trailers for one large cable spool or multi-reel trailers that can carry multiple reels simultaneously.
-
: Varies widely, with models supporting from around 1,700 lbs up to over 20,000 lbs of cable weight.
-
: Typically handle reels up to 120 inches (10 feet) or more in diameter and widths up to 70 inches or more.
-
: Many models feature hydraulic pumps (manual or electric) to rotate reels for controlled cable payout or rewind.
-
: Include electric brakes, breakaway kits, LED lighting, stabilizers, and adjustable roller fairleads to guide cable smoothly.
-
: Designed for easy positioning near manholes or trenches, with some models offering rear-wheel drive or self-propelled capabilities.
-
: Often built with torsion-resistant, galvanized steel frames to withstand heavy loads and rough job site conditions.
| Model/Brand | Payload Capacity | Max Reel Diameter | Max Reel Width | Special Features |
|---|---|---|---|---|
| I-60 | 6,000 lbs | 120 in | 60 in | Hydraulic pump (manual/electric), electric brakes, LED lights |
| FT-8 SLR | 6,660 lbs | 120 in | 60 in | Self-loading turret, hydraulic reel operation |
| FT-16 SLR | 13,769 lbs | 120 in | 70 in | Hydraulic rim drive, 360° turret rotation |
| KTA Series | Varies | Up to 2800 mm (~110 in) | Up to 1450 mm (~57 in) | Hot-dip galvanized frame, manual winch, easy loading/unloading |
| TR-120-3 | 20,000 lbs | Multiple reels | - | 3 independently driven reels, diesel engine, capstan line pull, air brakes |
| AD108 | Up to 14,000 lbs | 48 to 108 in | 38 to 68 in | Self-propelled, arm-driven, remote control operation |
Cable reel trailers are used to transport cable reels from storage to the job site and to facilitate cable payout during installation. Hydraulic or electric reel drives enable controlled unwinding of cable, reducing the risk of damage and improving efficiency. Some trailers also feature self-loading arms or turret systems to reduce manual handling.
Cable reel trailers are vital equipment in cable installation projects, offering safe, efficient, and controlled handling of heavy cable reels. They come in various sizes and configurations to meet different payloads and cable dimensions, often equipped with hydraulic or electric systems to assist in cable payout and retrieval.
