Aluminum Alloy a-Shape Tubular Gin Pole Lifting Erection Tool Of Transmission And Distribution Lines
An aluminum alloy A-shape tubular gin pole is a lifting and erection tool designed primarily for setting up small single poles or lifting moderate-weight components during the construction of transmission and distribution lines. It features a sturdy A-shaped tubular frame made from high-strength aluminum alloy, providing a lightweight yet strong structure with corrosion-resistant galvanized steel
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
An aluminum alloy A-shape tubular gin pole is a lifting and erection tool designed primarily for setting up small single poles or lifting moderate-weight components during the construction of transmission and distribution lines. It features a sturdy A-shaped tubular frame made from high-strength aluminum alloy, providing a lightweight yet strong structure with corrosion-resistant galvanized steel parts.
-
: High-strength aluminum alloy tubes with galvanized steel parts for durability and corrosion resistance.
-

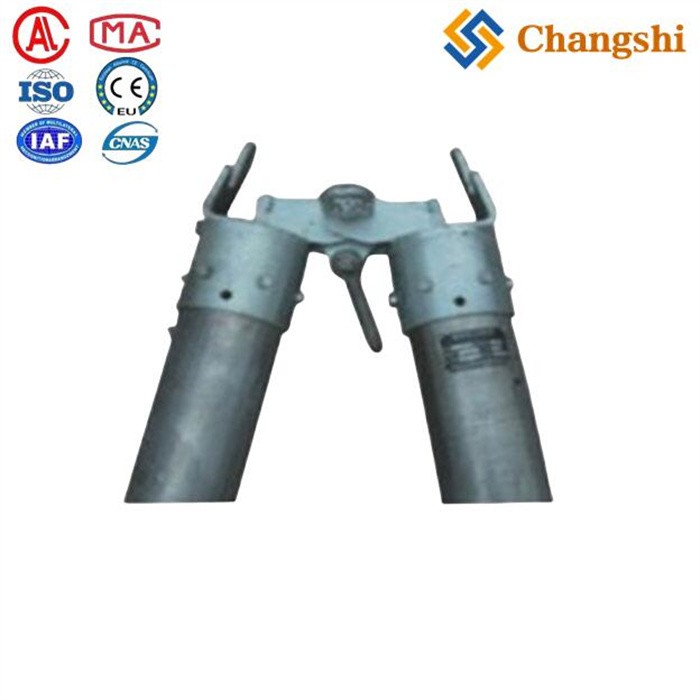

: A-shape tubular frame, often with a fixed style head mounted with a tri-pulley for efficient rope handling.
-
: Typically designed with a safety factor of 2.5, ensuring reliable and safe operation.
-
: Compatible with manual hand crank winches having a maximum output force of up to 5 kN.
-
: Usually recommended to use 7mm steel wire rope, with a workable length about 9 times the gin pole length.
-
: Available in various lengths ranging approximately from 2.1 m base stroke up to about 4.5 m (effective length), with allowable vertical loads ranging from 10 kN to 31 kN depending on the model and size.
-
: Ideal for erecting small poles as a whole or lifting moderate loads in power line construction.
-
| Model | Base Stroke (m) | Allowable Vertical Load (kN) | Weight (kg/m) | Diameter (mm) | Max Length (m) |
|---|---|---|---|---|---|
| LBGR100A-6 | 2.1 | 18 | 5.5 | 120 | ~6 |
| LBGR120A-6 | 2.1 | 30 | 7.5 | 120 | ~6 |
| LBGR120A-9 | 3.1 | 17 | 7.5 | 120 | ~9 |
| LBGR150A-8 | 2.8 | 31 | 8 | 150 | ~8 |
| LBGR150A-13 | 4.5 | 13 | 8 | 150 | ~13 |
-

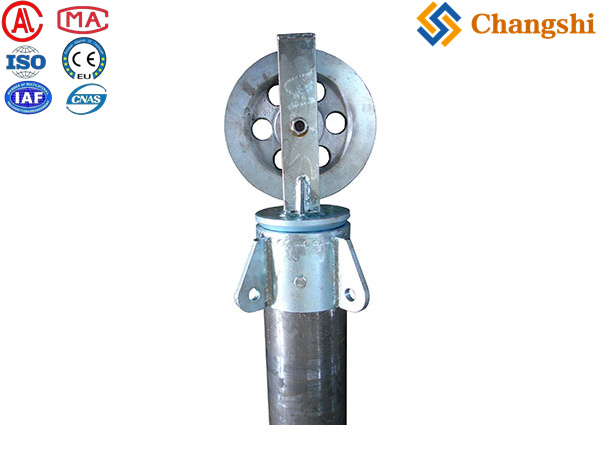

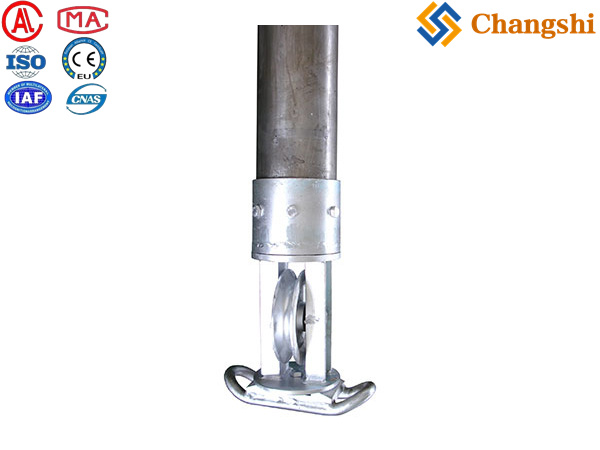

The head part of the gin pole is usually fixed style with tri-pulley for rope guidance.
-
The gin poles are tested 100% before delivery to ensure quality and safety.
-
They are suitable for small pole erection or lifting light to moderate weight components in transmission line projects.
-
Some suppliers offer customization options for length and head styles (including upending or upending-fixed styles).
-
Certified by CE and ISO standards in some cases, ensuring compliance with international quality requirements.
-
Aluminum alloy A-shape tubular gin poles are lightweight, strong, and reliable tools designed for small pole erection and moderate lifting tasks in transmission and distribution line construction. Their aluminum construction reduces weight while maintaining strength, and their design includes safety features such as a 2.5 safety factor and compatibility with manual winches. Available in multiple models and sizes, they offer flexibility to meet various construction needs.
This type of gin pole is widely used in power line projects to efficiently and safely erect poles or lift components, making it an essential piece of equipment in the industry.
