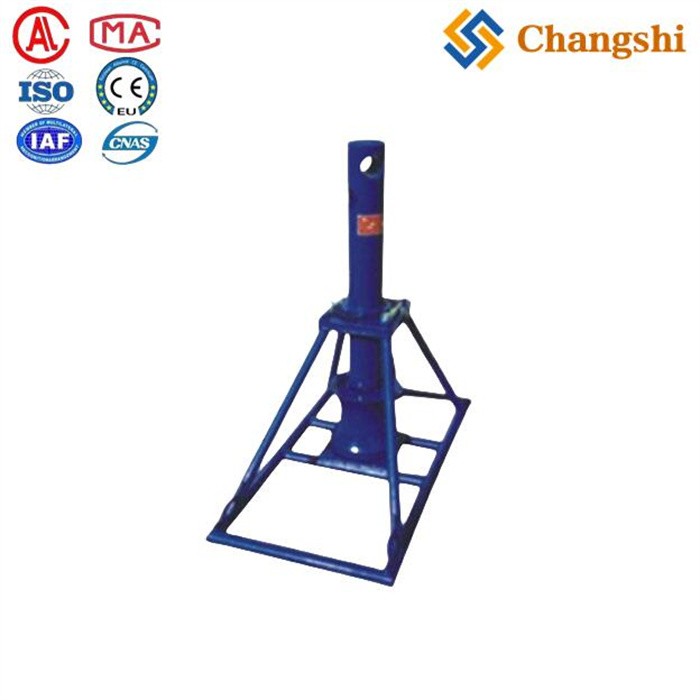

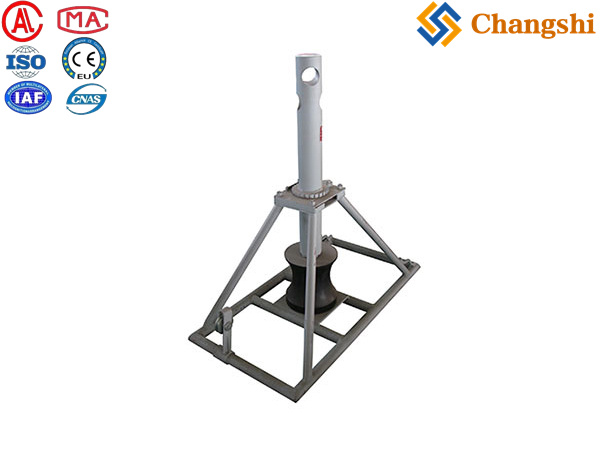

Hand Turned Winch for Overhead Power Transmission Distribution Lines Stringing

A Hand Turned Winch for Overhead Power Transmission Distribution Lines Stringing is a mechanical device used primarily for pulling, lifting, and tensioning conductors during the installation or maintenance of overhead transmission and distribution lines. These winches are manually operated, often featuring a hand bar and a ratchet mechanism to tighten steel wire ropes, making them suitable for controlled conductor stringing and sagging operations without the need for powered equipment.

Key Characteristics and Uses:

• Manual Operation: The winch is operated by turning a handle or crank, which engages a ratchet system for incremental pulling or lifting action. This allows for precise control over the tension applied to the conductor or wire rope.

• Applications: Used in transmission line construction for pulling conductors through stringing blocks, sagging the conductor to the correct tension, and lifting or tensioning loads such as cables or equipment on towers.

• Load Capacity: Models vary in lifting and pulling capacities, for example, typical hand-operated Tirfor pulling winches have lifting loads ranging from 8 kN to 32 kN and pulling loads from 12.5 kN to 50 kN, with steel rope diameters from 8 mm to 16 mm.

• Construction: These winches are built with durable materials such as galvanized steel wire ropes to withstand outdoor conditions and heavy loads typical in overhead line work.

• Ease of Use: The ratchet system and hand bar design make the winch easy to operate and flexible in application, allowing workers to apply significant force safely and incrementally without power tools.

•

Additional Context in Overhead Line Stringing:

• The hand turned winch is part of a broader set of stringing equipment used to install overhead conductors between towers. The conductor is pulled through running-out blocks suspended on towers, then tensioned ("sagged") to the correct level for safe and efficient operation of the power line.

• While hydraulic and motorized winches exist for larger-scale or more demanding operations, hand winches remain valuable for their portability, simplicity, and precision in tensioning during line stringing and maintenance.

In summary, a Hand Turned Winch for overhead power transmission and distribution line stringing is a manually operated pulling and tensioning tool designed to safely and effectively manage conductor installation and sagging, featuring ratchet mechanisms and durable steel wire ropes to handle the mechanical demands of overhead line construction
