Hook Grounding Pulley Block For Overhead Transmission Line Stringing Maintenance
A Hook Grounding Pulley Block is a specialized tool used in overhead transmission line construction and maintenance to support and guide grounding cables or earth wires while providing a secure mechanical connection with grounding capability.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video

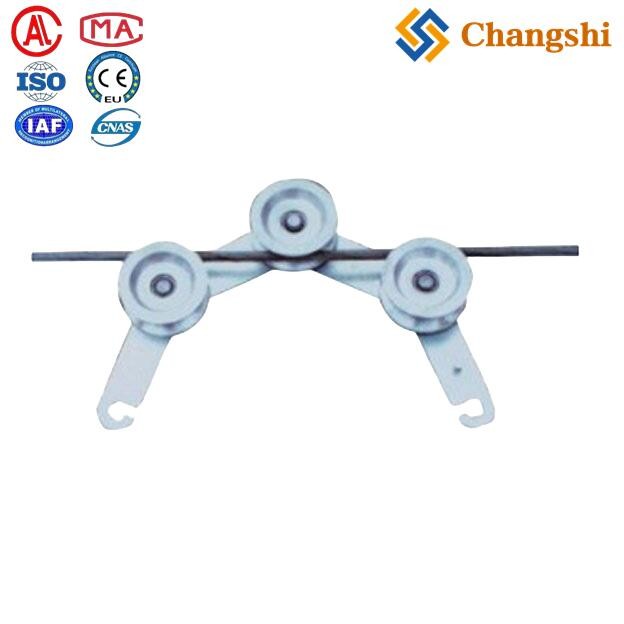

A Hook Grounding Pulley Block is a specialized tool used in overhead transmission line construction and maintenance to support and guide grounding cables or earth wires while providing a secure mechanical connection with grounding capability.
-
It is primarily used to eliminate faradism (inductive interference) in conductors and grounding wires during stringing operations by providing a grounded path for the cable.
-
The pulley block is typically mounted on the outlet side of the tensioner and the inlet side of the puller during conductor or earth wire stringing.
-
It guides the grounding cable smoothly over the sheave while maintaining electrical continuity to ground, preventing buildup of induced voltages.
-

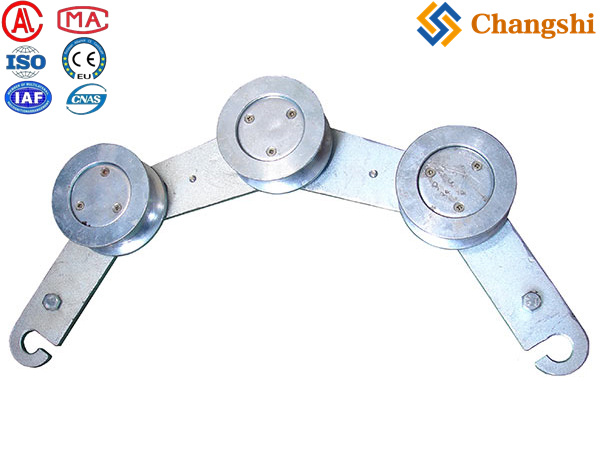

The frame is usually made of galvanized steel for durability and corrosion resistance.
-
The sheave (pulley wheel) runs on ball bearings for smooth rotation and reduced friction.
-
The block is equipped with a hook attachment (swivel hook or clevis hook) for easy hanging on structures or stringing equipment.
-
Some models include a grounding device with an insulated copper cable and grounding clamp to ensure proper earthing during operations.
-
Weight typically ranges from about 4.6 kg to over 14 kg depending on size and capacity.
-
Working load capacities vary, with common ratings around 23 kN (approximately 2.3 tons) or higher for heavy-duty models.
-
-
Used in overhead line stringing for both conductors and earth wires.
-
Provides a safe and reliable grounding point while allowing cable movement.
-
Helps maintain the integrity of the grounding system during tensioning and pulling.
-
Suitable for use on transmission towers, poles, and stringing equipment.
| Feature | Description |
|---|---|
| Purpose | Guide and ground cables during stringing |
| Material | Galvanized steel frame and sheave |
| Sheave | Ball-bearing pulley for smooth cable movement |
| Attachment | Hook or swivel hook for easy mounting |
| Grounding Device | Optional insulated copper cable and clamp |
| Working Load | Typically around 23 kN or higher |
| Weight | 4.6 kg to 14+ kg depending on model |
| Usage | Mounted between tensioner and puller in stringing operations |
In essence, a Hook Grounding Pulley Block is an essential overhead line stringing tool that combines mechanical support and electrical grounding to ensure safe, efficient, and interference-free conductor and earth wire installation
