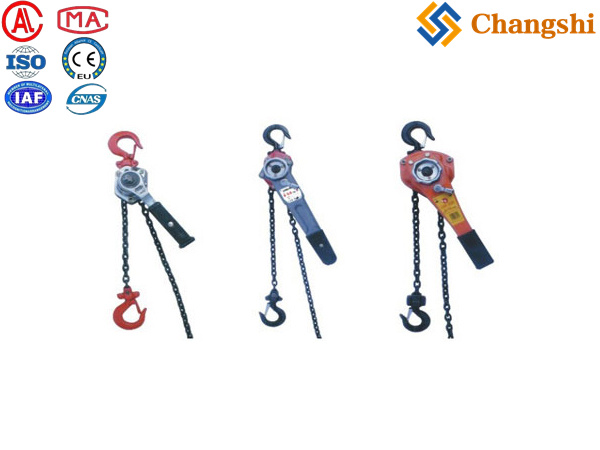

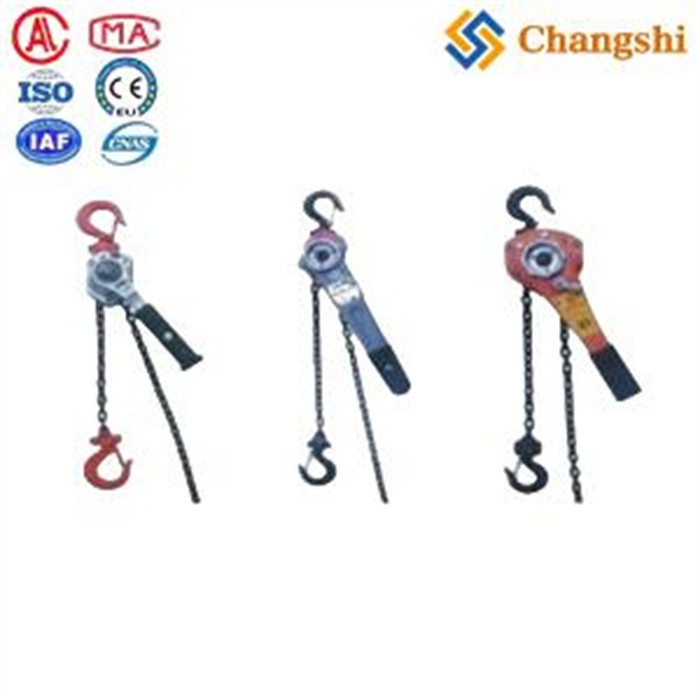

Hand Wrenching Lifting Chain Hoist Tackle Block For Lifting Lowering Heavy Loads
A Hand Wrenching Lifting Chain Hoist Tackle Block (commonly called a manual chain hoist or hand chain block) is a mechanical device used for lifting and lowering heavy loads by manually pulling a hand chain. It is widely used in industrial, construction, and maintenance applications where powered lifting is impractical or unavailable.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
A Hand Wrenching Lifting Chain Hoist Tackle Block (commonly called a manual chain hoist or hand chain block) is a mechanical device used for lifting and lowering heavy loads by manually pulling a hand chain. It is widely used in industrial, construction, and maintenance applications where powered lifting is impractical or unavailable.
-
: Manual hand chain is pulled to lift or lower loads via a geared mechanism inside the hoist housing, allowing precise control of load movement without electricity.
-
: Available in various capacities, typically ranging from 250 kg (0.25 tons) up to 6 tons or more, depending on the model and application.
-
:
-
: High-strength, often galvanized or grade 80/grade 10 alloy steel chain designed for durability and corrosion resistance.
-
: Forged steel hooks with 360° swivel capability and safety latches to prevent accidental load release.
-
: Robust steel or alloy casing protecting internal gears and brake system.
-
: Reliable load pressure brake or dual ratchet pawls that securely hold the load at any height.
-
: Patented or precision guides ensure smooth chain operation and prevent jamming.
-
-
: Standard lifting heights typically start at 3 meters (10 feet) but can be customized or extended depending on the model.
-
: Designed and manufactured to comply with international standards such as EN 12100, EN 13157, EN 818-7, ASME B30.21, and ISO/DIN norms, ensuring safe and reliable operation.
-
:
-
Compact and lightweight for easy portability and use in confined spaces.
-
Ergonomic design reduces operator fatigue.
-
Overload protection devices (optional) to prevent damage from excessive loads.
-
Simple internal structure for ease of maintenance and durability.
-
-
-
Lifting heavy machinery parts, tools, and materials in workshops, warehouses, and construction sites.
-
Maintenance and installation tasks where precise load positioning is required.
-
Emergency or remote location lifting where power is unavailable.
| Feature | Description |
|---|---|
| Load Capacity | 0.25 to 6 tons (250 kg to 6000 kg) |
| Lift Height | Standard 3 m (customizable) |
| Load Chain Grade | Grade 80 or Grade 10 alloy steel |
| Hand Chain | Galvanized steel |
| Hooks | Forged steel, 360° swivel, safety latch |
| Brake | Load pressure brake or dual ratchet pawls |
| Weight | Varies by capacity (e.g., 5.7 kg for 0.8 t, up to 40 kg for 9 t) |
| Standards Compliance | EN 12100, EN 13157, EN 818-7, ASME B30.21 |
In summary, a Hand Wrenching Lifting Chain Hoist Tackle Block is a reliable, portable, and manually operated lifting device designed for safe and controlled handling of heavy loads in various industrial and maintenance environments. Its robust construction, safety features, and compliance with international standards make it a preferred choice where powered lifting is not feasible or practical.
