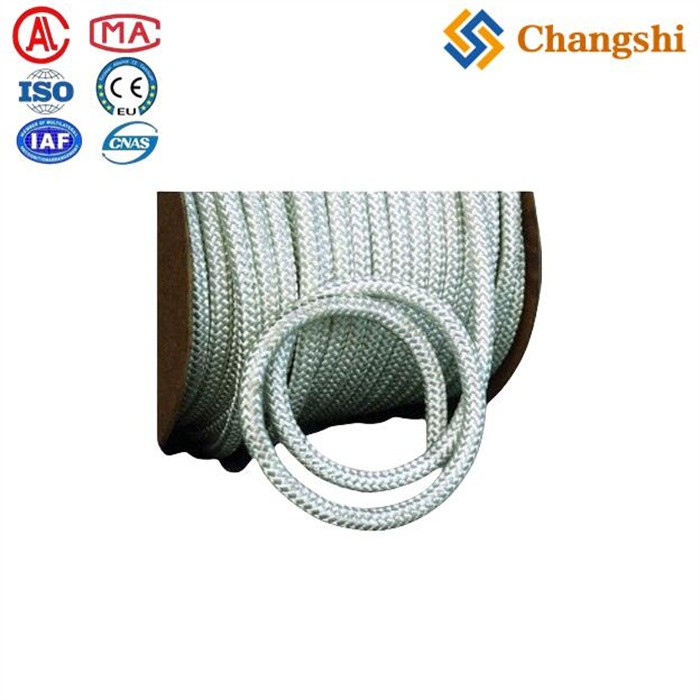

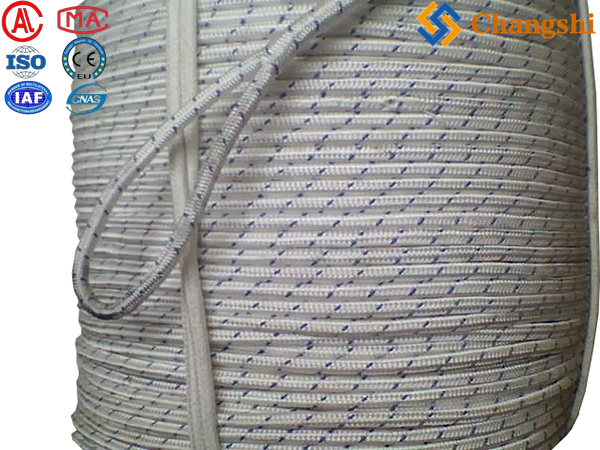

Cable Pulling Nylon Rope for overhead transmission line underground installation
A High Flexibility Cable Pulling Nylon Rope is a specialized synthetic rope designed for pulling electrical cables, conductors, or communication lines, particularly in overhead power transmission and underground utility installations. These ropes combine flexibility, strength, and durability to withstand the demanding conditions of cable pulling.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
A High Flexibility Cable Pulling Nylon Rope is a specialized synthetic rope designed for pulling electrical cables, conductors, or communication lines, particularly in overhead power transmission and underground utility installations. These ropes combine flexibility, strength, and durability to withstand the demanding conditions of cable pulling.
-
: Typically made from nylon or a nylon/polyester composite, often constructed as double braided ropes, which enhances flexibility, abrasion resistance, and strength.
-
: Nylon ropes offer excellent breaking strength, with some products rated up to 25,000 lbs (about 111 kN) or more, suitable for heavy-duty cable pulling tasks.
-
: Nylon’s natural elasticity provides shock absorption during pulling, reducing sudden jerks and protecting cables and equipment.
-
: These ropes resist wear from contact with rough surfaces and exposure to sunlight, extending service life.
-
: Designed to minimize twisting and reduce friction during pulling operations, improving control and safety.
-
: Many come with professionally spliced and stitched eyes for easy attachment to pullers, winches, or cables.
-
: Common diameters range from 3/8" to 3/4" or more, with lengths customizable to project needs.
-
-
Pulling overhead transmission line conductors and pilot ropes.
-
Underground cable installation through conduits.
-
Use with cable pullers, winches, and tuggers from brands like Greenlee, Porta-pull, and others.
-
Suitable for telecom, electrical, and power distribution cable installations.
-
: Made from premium polyester with high tenacity, abrasion resistance, and UV resistance, available with spliced eyes and heavy-duty reels.
-
: Offers high strength (e.g., 16,000 lbs breaking strength for 9/16" diameter), low stretch, and durability.
-
: Double braided with a nylon core and polyester cover, providing superior shock absorption and tensile strength up to 25,000 lbs.
| Feature | Description |
|---|---|
| Material | Nylon or Nylon/Polyester composite |
| Construction | Double braided for flexibility and strength |
| Breaking Strength | Up to 25,000 lbs (approx. 111 kN) |
| Diameter Range | 3/8" to 3/4" and customizable |
| Key Properties | High flexibility, abrasion & UV resistant, low stretch, torque-free |
| Typical Use | Cable pulling for overhead and underground installations |
| Accessories | Pre-spliced eyes, heavy-duty reels |
These ropes are essential for safe, efficient cable pulling operations, providing the necessary strength and flexibility to handle complex installations while protecting cables from damage.
